Installation Procedure

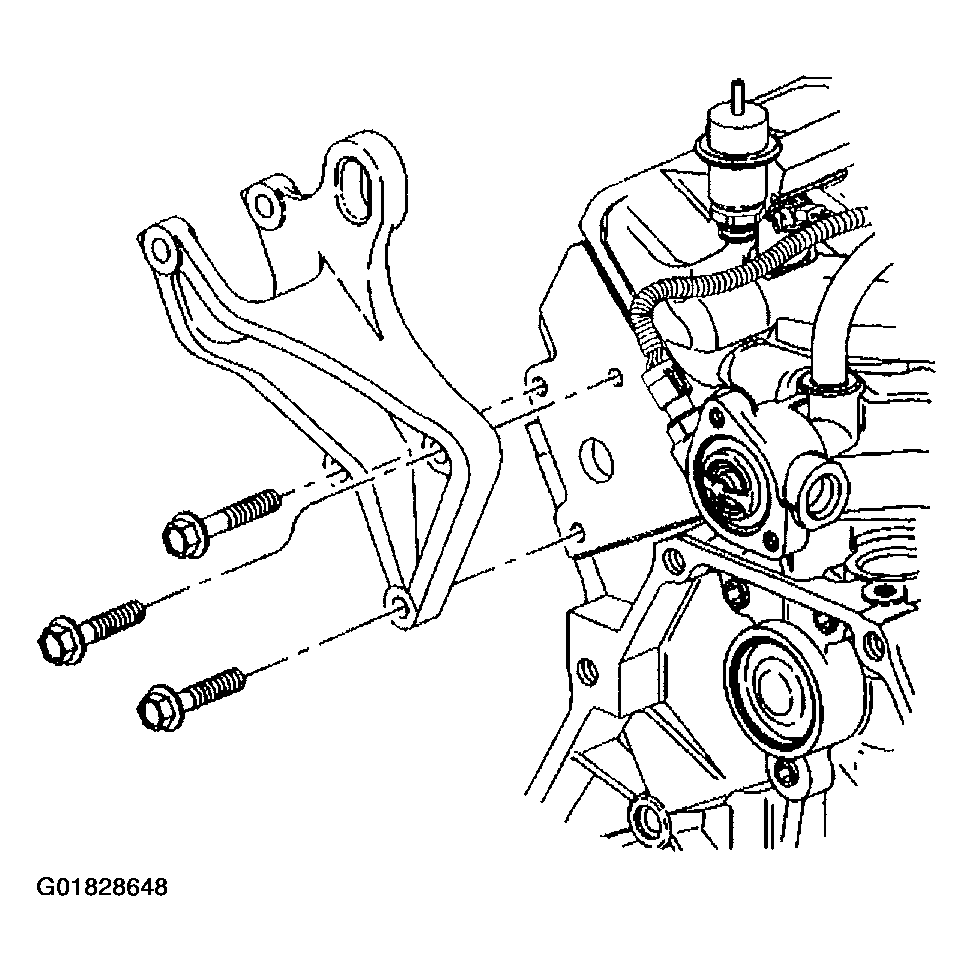

    Fig 1: Left Engine Mount Strut Bracket To Cylinder Head
    G01828648Courtesy of GENERAL MOTORS CORP.
  1. Install the left engine mount strut bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine mount strut bracket bolts through the engine mount strut bracket to the cylinder head.

    Tighten

    Tighten the engine mount strut bracket bolts to 70 N.m (52 lb ft).

  3. Install the thermostat housing. Refer to THERMOSTAT REPLACEMENT .
  4. Install the left engine mount strut to the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - Left .

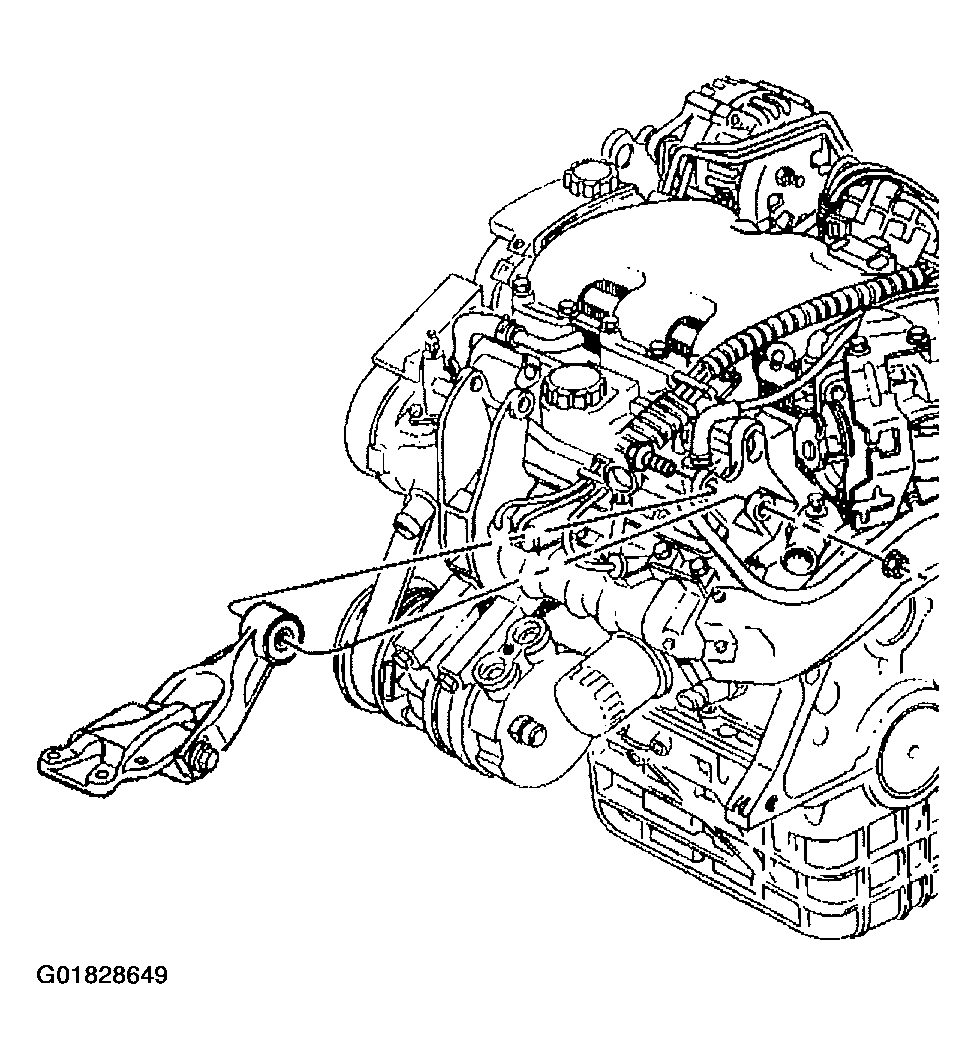

    Fig 2: Left Engine Mount Strut Bracket On Engine
    G01828649Courtesy of GENERAL MOTORS CORP.
