Installation Procedure

NOTE: Refer to FASTENER NOTICE .

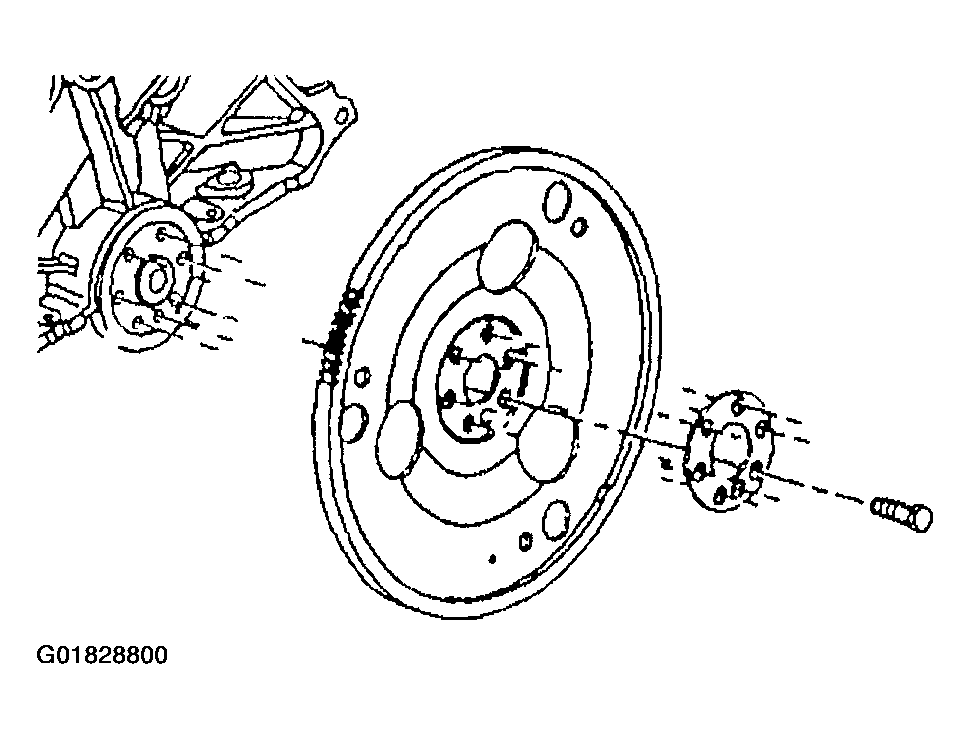

    Fig 1: Engine Flywheel
    G01828800Courtesy of GENERAL MOTORS CORP.
  1. Install the engine flywheel and bolts

    Tighten

    Tighten bolts to 71 N.m (52 lb ft).

  2. Install the automatic transaxle. Refer to TRANSMISSION REPLACEMENT (M15) or TRANSMISSION REPLACEMENT (M76) .
