Installation Procedure

  1. Install the heat shields to the cooling fan shroud.

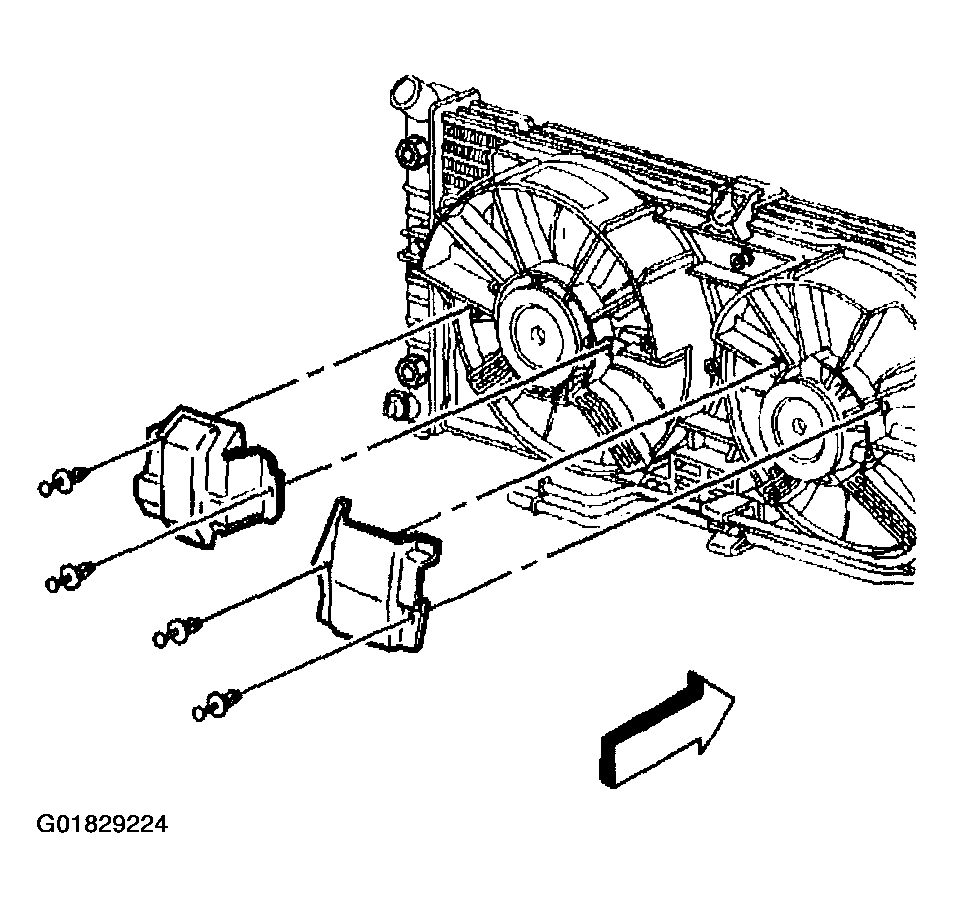

    Fig 1: Installing Heat Shields & Bolts
    G01829224Courtesy of GENERAL MOTORS CORP.
  2. Install the fan motors to the cooling fan shroud.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the cooling fan motor.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  4. Connect the cooling fan motor electrical connectors.

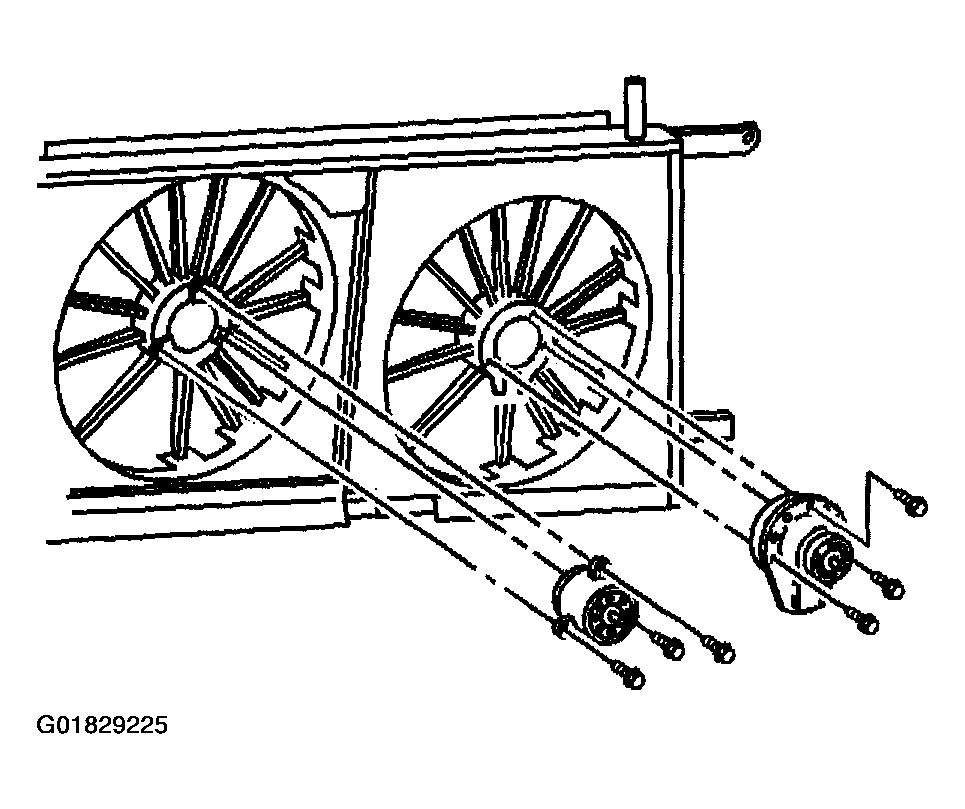

    Fig 2: Installing Fan Motor, Shrouds & Screws
    G01829225Courtesy of GENERAL MOTORS CORP.
  5. Install the cooling fans to the shroud.

    Important:  Turn the cooling fan nuts counterclockwise to tighten.

  6. Install the cooling fan nuts.

    Tighten

    Tighten the nuts to 6 N.m (53 lb in).

  7. Install the cooling fan assembly including the shroud. Refer to COOLING FAN REPLACEMENT - Electric .

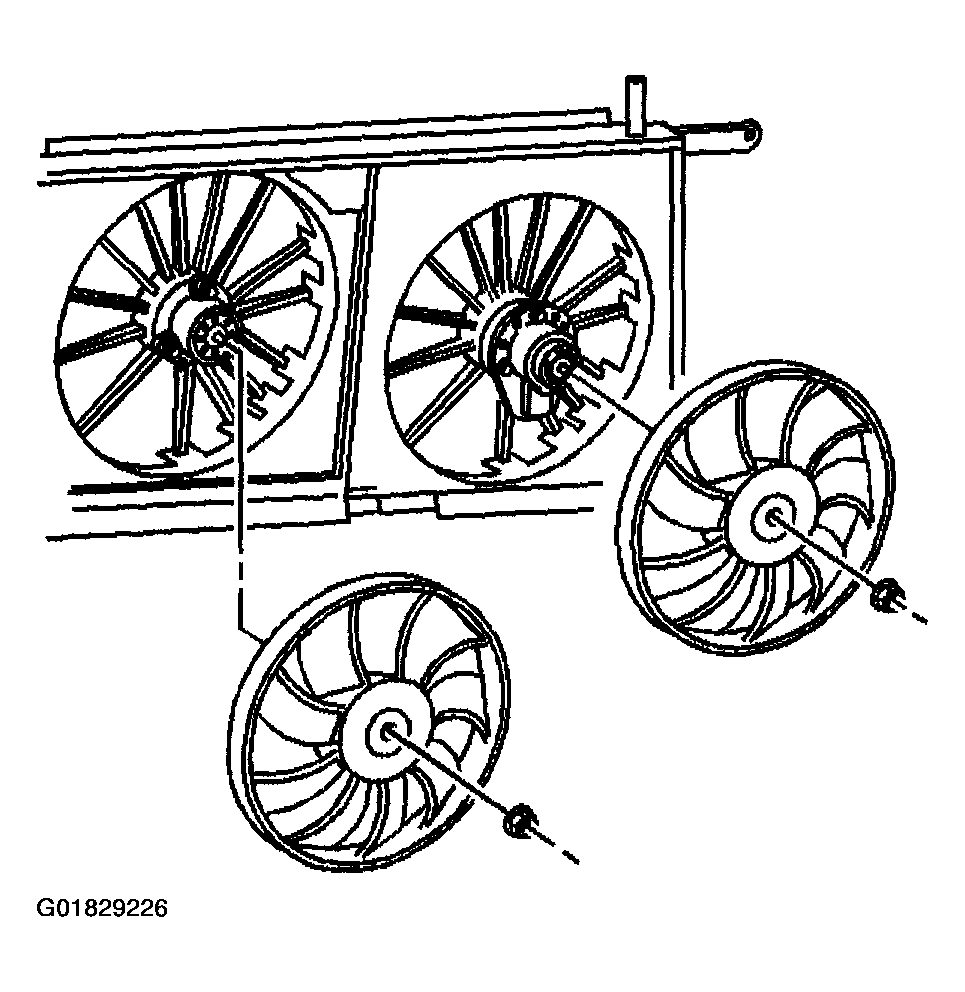

    Fig 3: Installing Cooling Fan, Shrouds & Nuts
    G01829226Courtesy of GENERAL MOTORS CORP.
