Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Drain the coolant. Refer to Draining and Filling Cooling System .
  3. Pull the stem out of the radiator body.
  4. Clean or replace the seal and the stem as necessary.

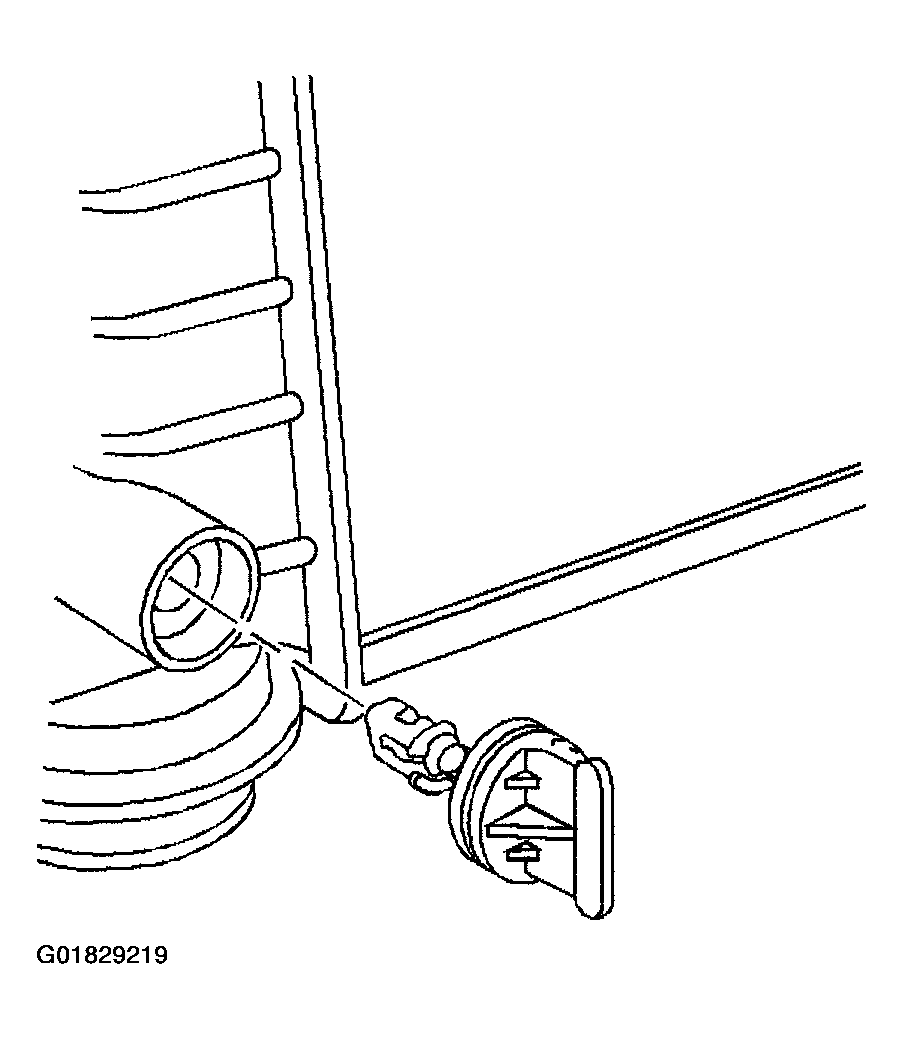

    Fig 1: Pulling Stem Out Of Radiator Body
    G01829219Courtesy of GENERAL MOTORS CORP.
