Schematic and Routing Diagrams

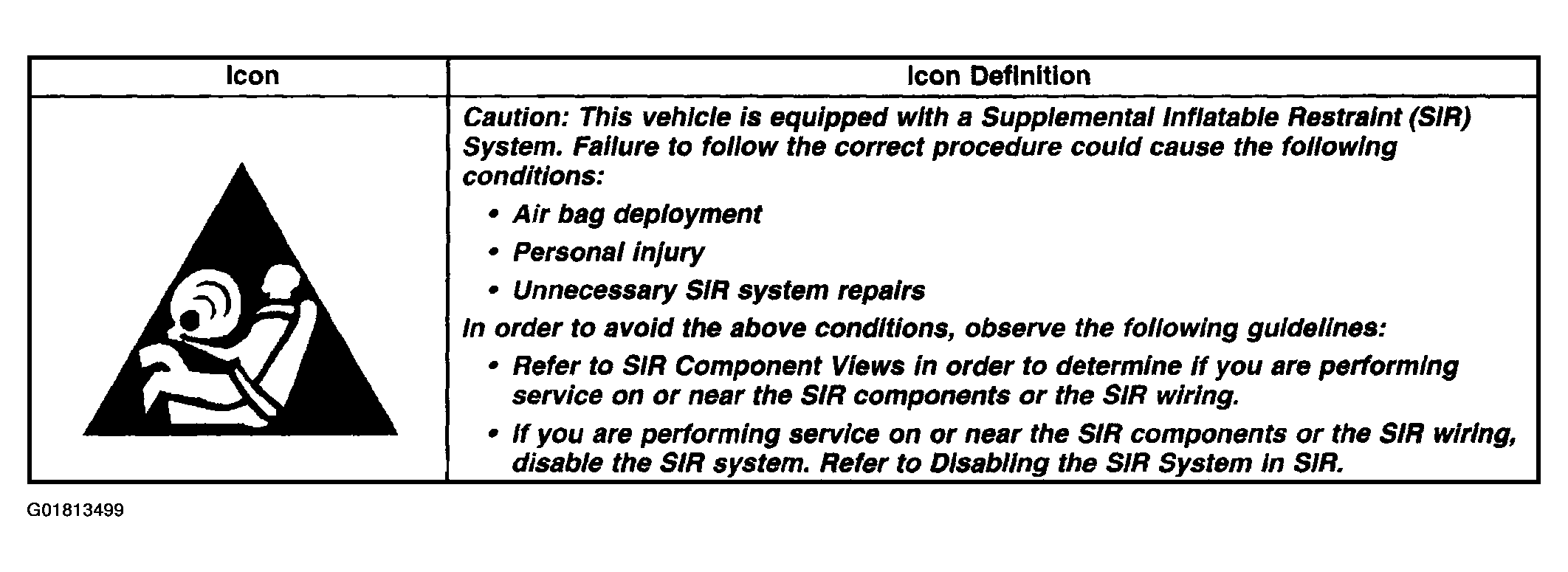

Fig 1: Horns Schematic Icons

G01813499

Courtesy of GENERAL MOTORS CORP.

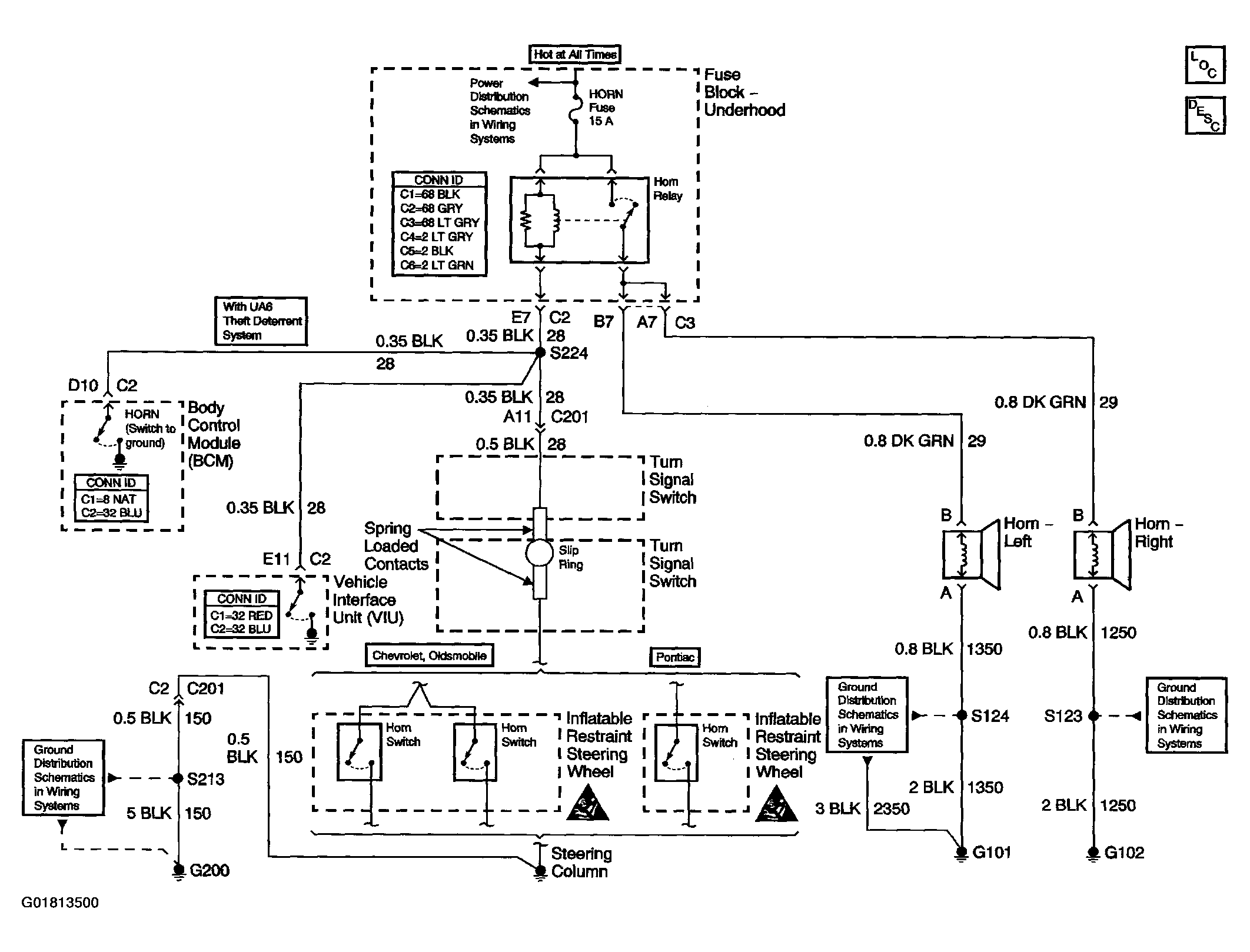

Fig 2: Horns Schematics

G01813500

Courtesy of GENERAL MOTORS CORP.
