Horns Connector End Views

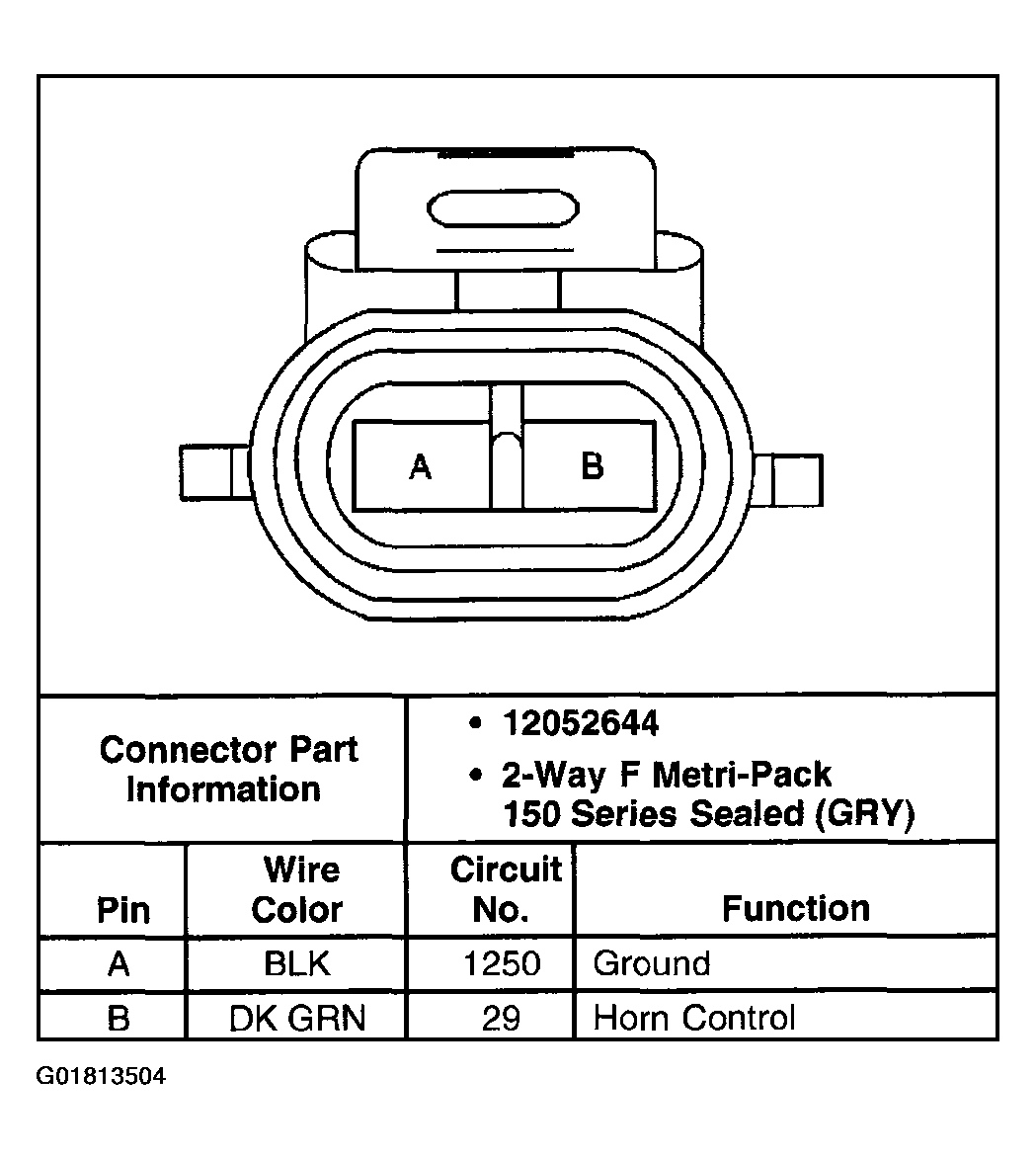

Fig 1: Horn-Left
Courtesy of GENERAL MOTORS CORP.
Fig 2: Horn-Right
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
