Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Battery, Charging System And Starting System
>>
Schematic and Routing Diagrams
Schematic and Routing Diagrams

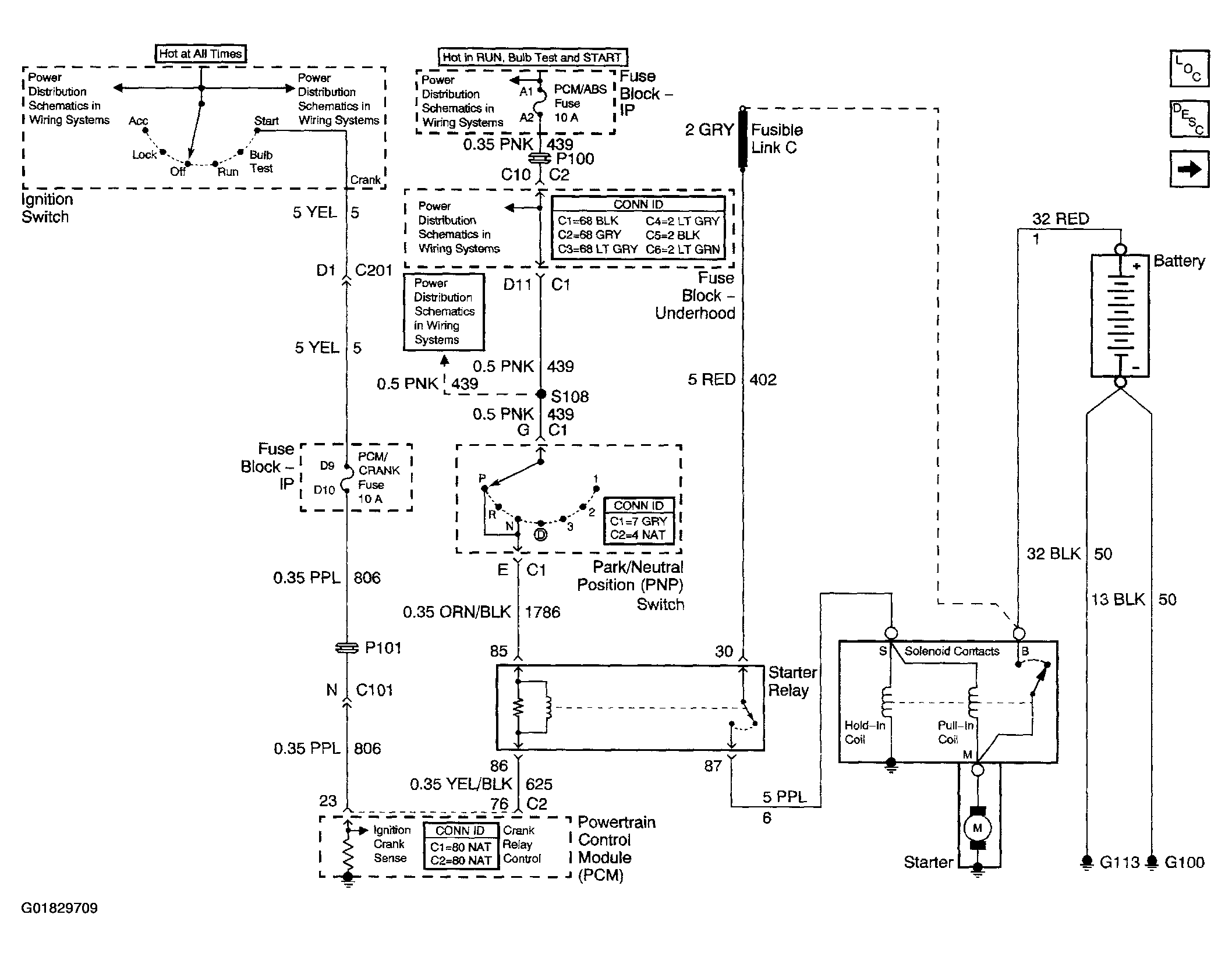

Fig 1: Starting And Charging Schematics (Starting)
Courtesy of GENERAL MOTORS CORP.

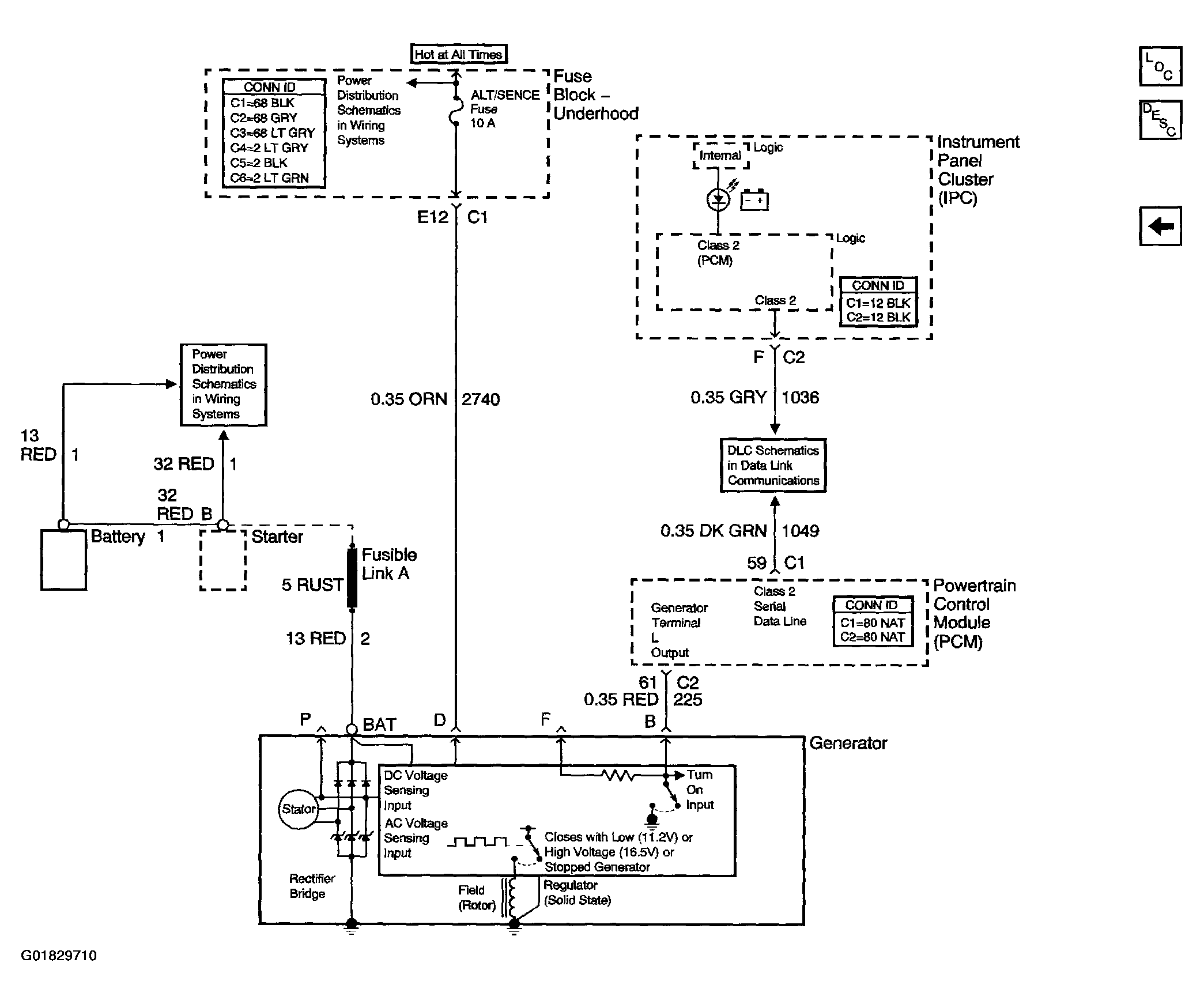

Fig 2: Starting And Charging Schematics (Charging)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
