Removal Procedure

  1. Remove the battery. Refer to Battery Replacement .
  2. Remove the battery tray bolts.
  3. Remove the battery tray.

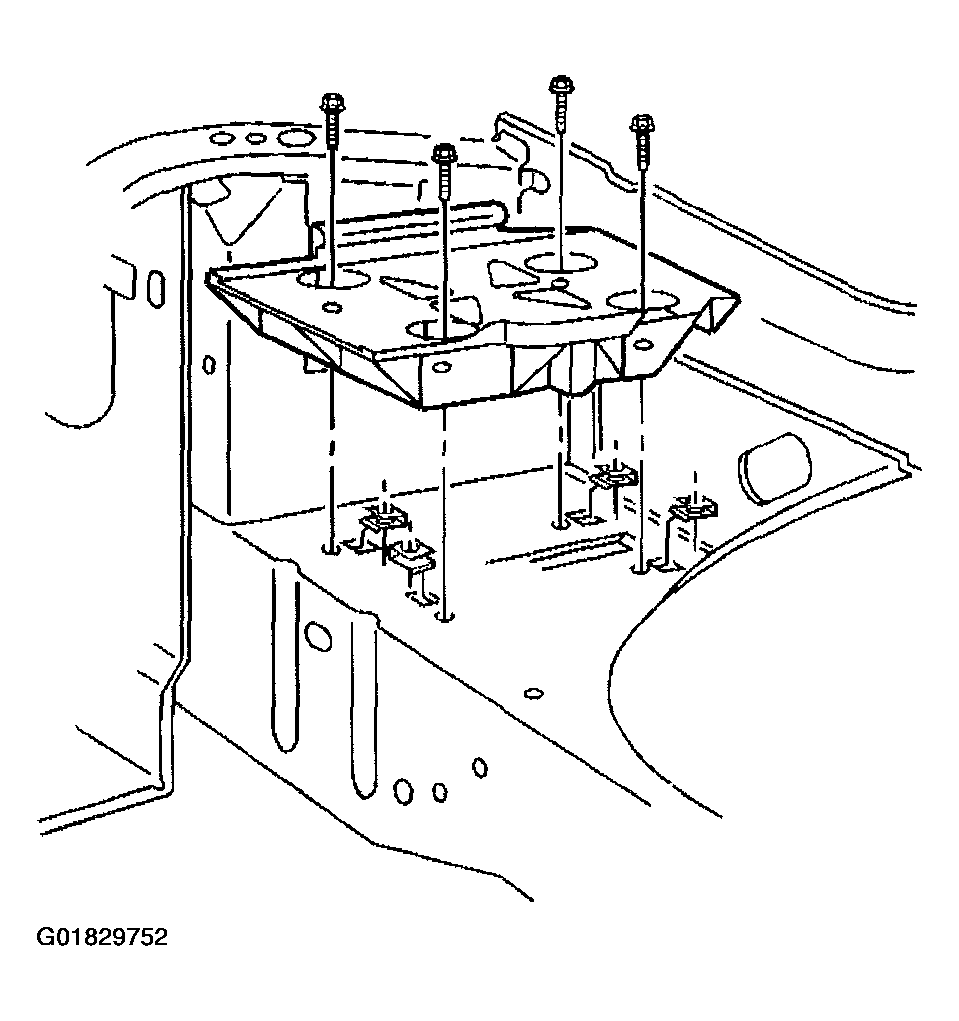

    Fig 1: Removing Battery Tray & Bolts
    G01829752Courtesy of GENERAL MOTORS CORP.
