Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Turn off all the lamps and accessories.
  2. Turn the ignition OFF.
  3. Remove the battery ground (negative) cable and bolt from the battery.

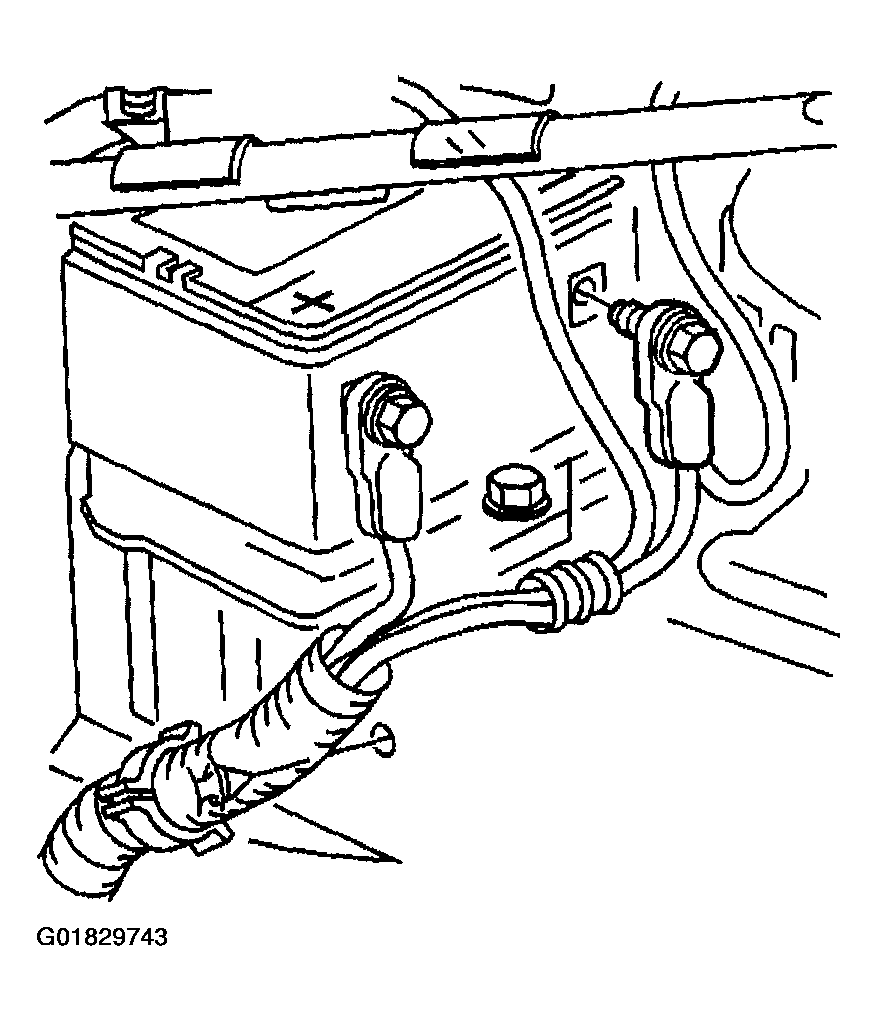

    Fig 1: Removing Battery Ground (Negative) Cable & Bolt
    G01829743Courtesy of GENERAL MOTORS CORP.
