Engine Electrical Connector End Views

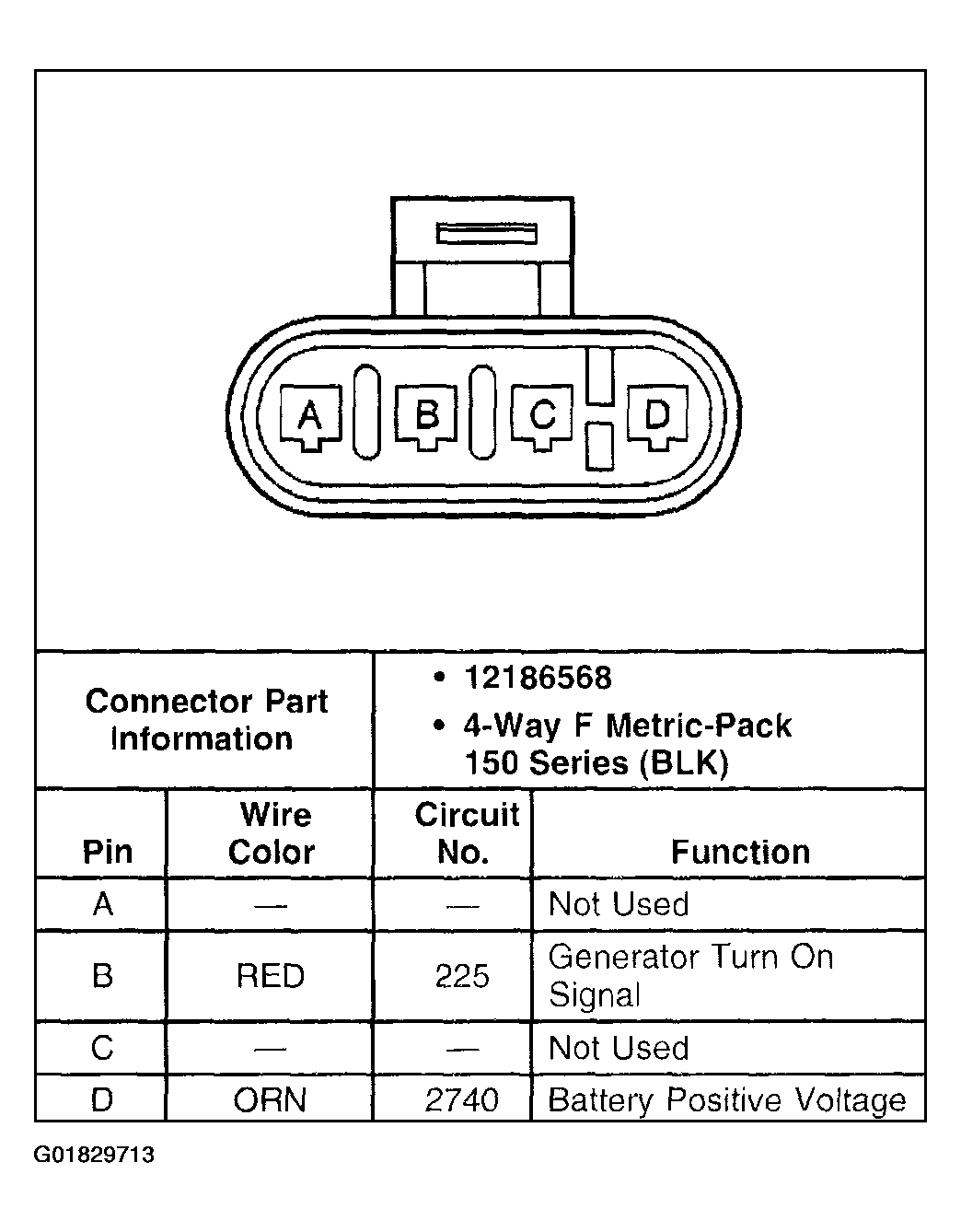

Fig 1: Generator

G01829713

Courtesy of GENERAL MOTORS CORP.

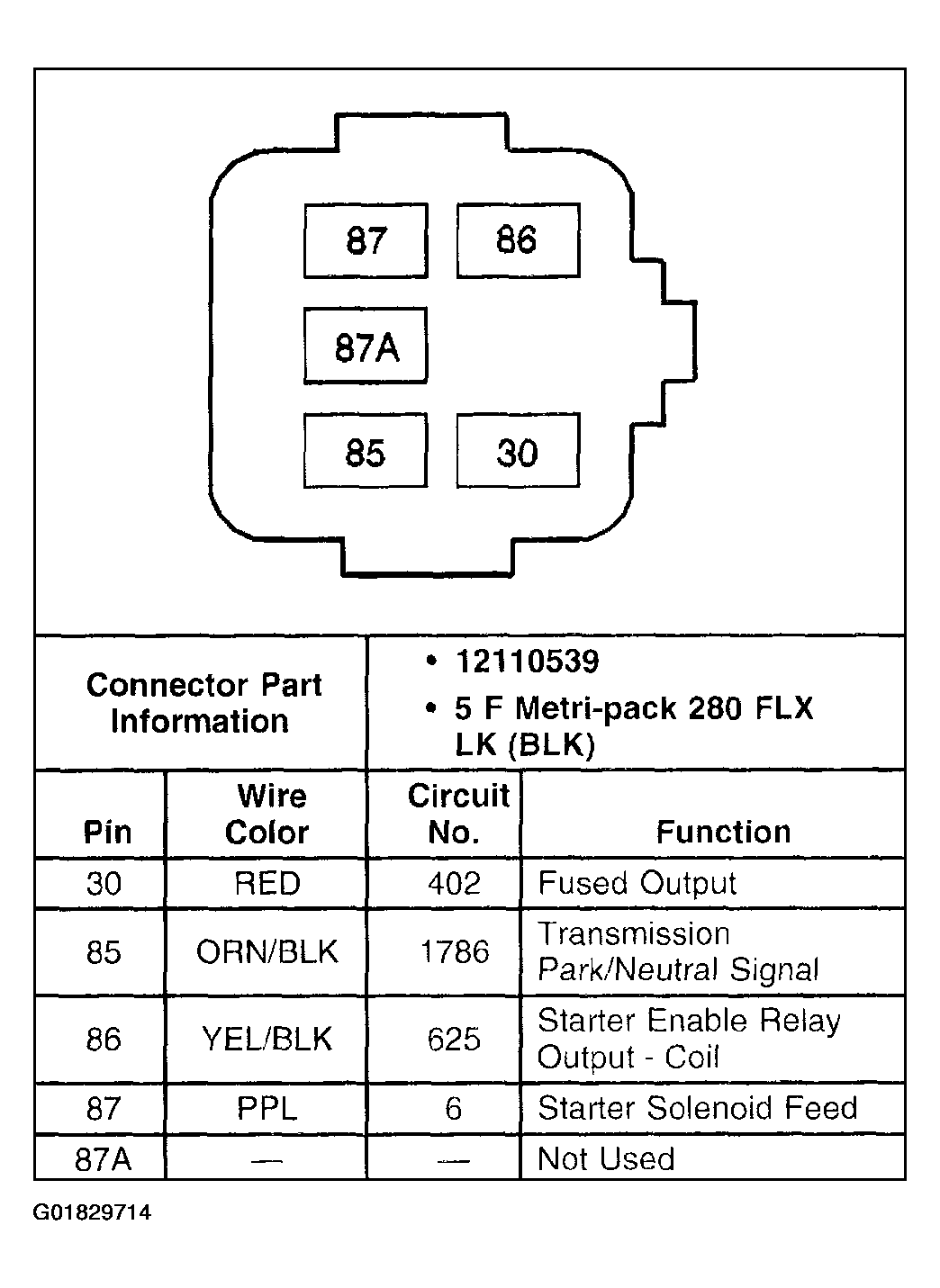

Fig 2: Starter Relay

G01829714

Courtesy of GENERAL MOTORS CORP.
