Diagnostic System Check-Retained Accessory Power

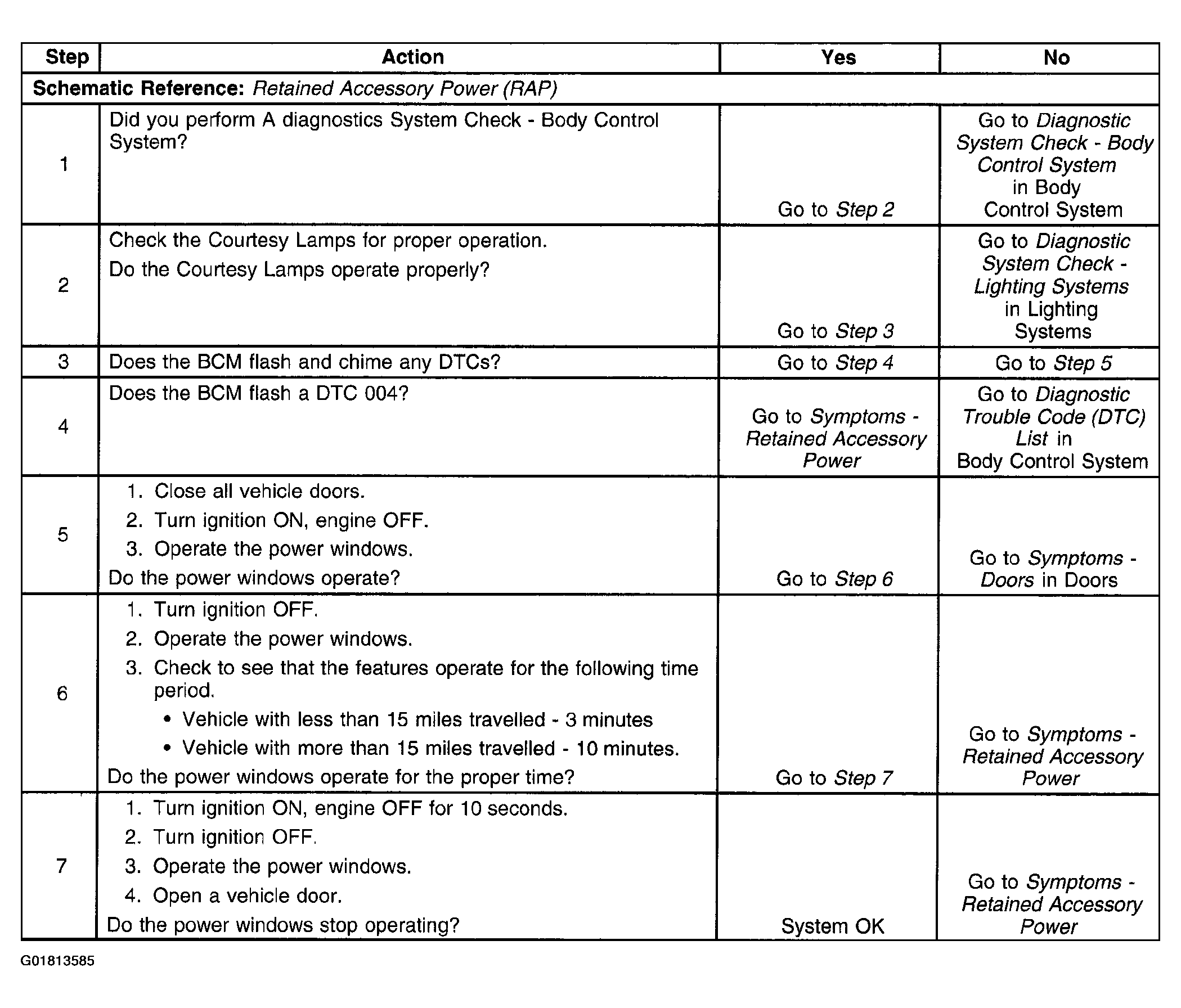

Fig 1: Diagnostic System Check-Retained Accessory Power

G01813585

Courtesy of GENERAL MOTORS CORP.
