Stationary Windows Connector End Views

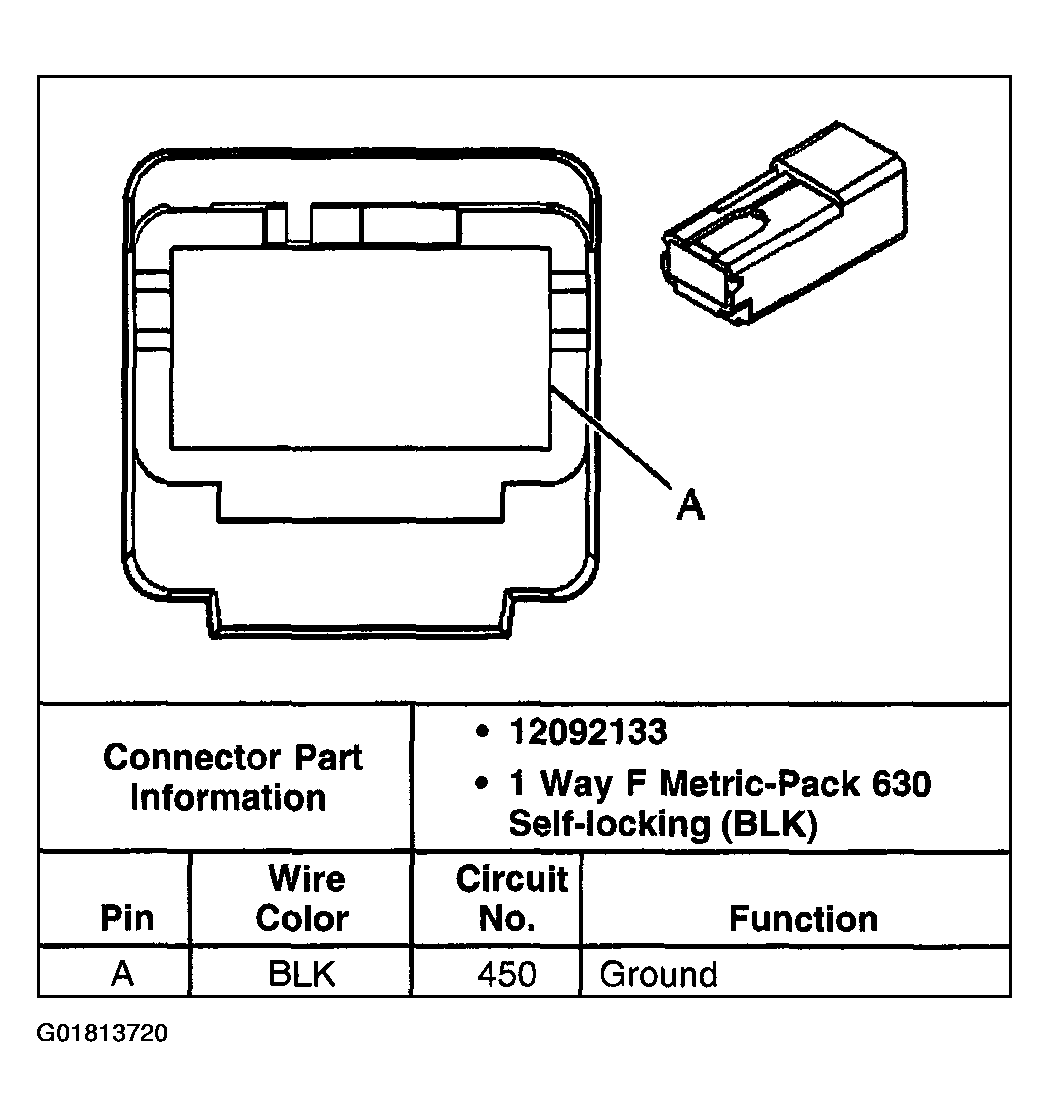

Fig 1: Rear Window Defogger Grid (C1)

G01813720

Courtesy of GENERAL MOTORS CORP.

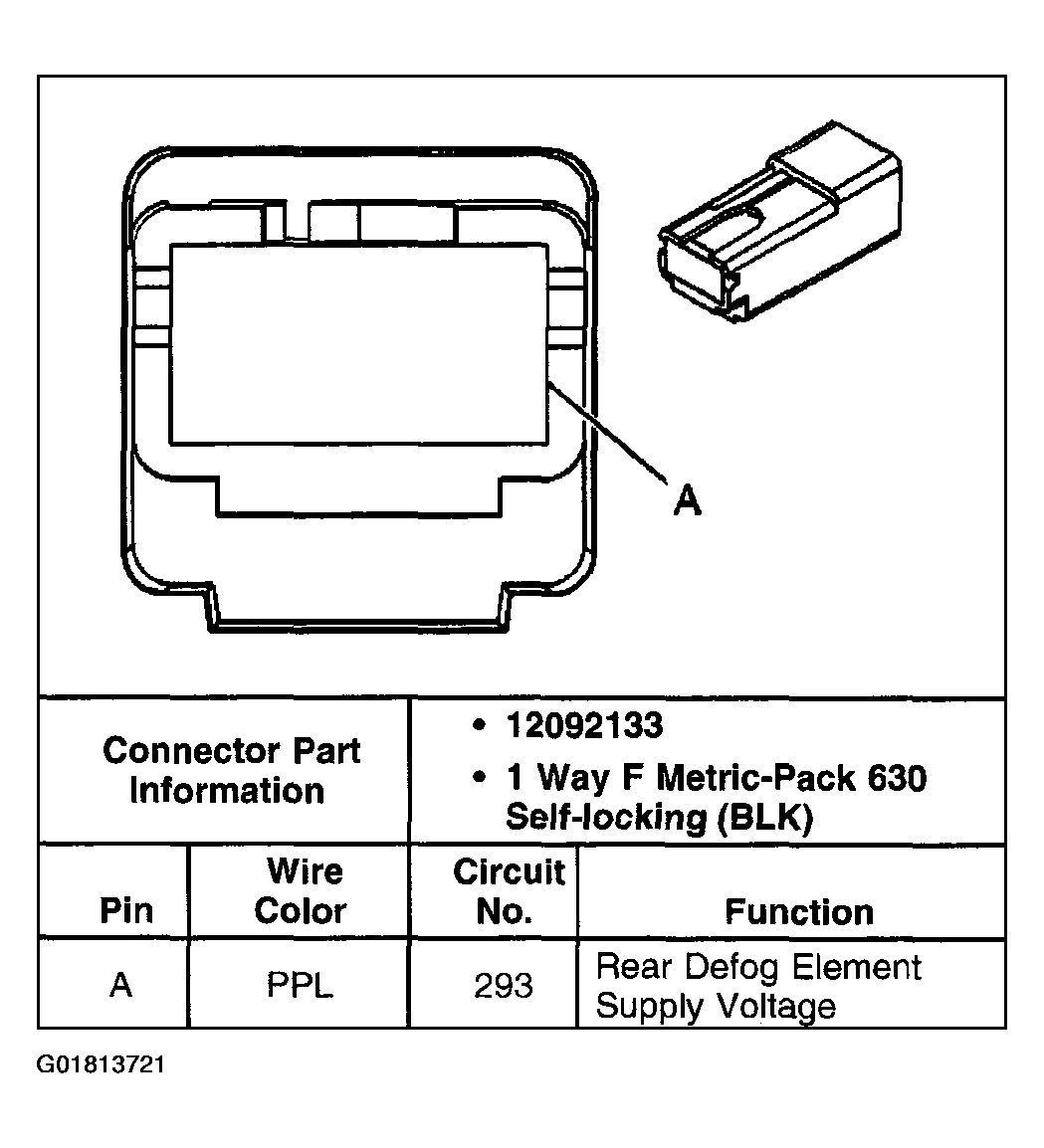

Fig 2: Rear Window Defogger Grid (C2)

G01813721

Courtesy of GENERAL MOTORS CORP.
