Power Window Schematics

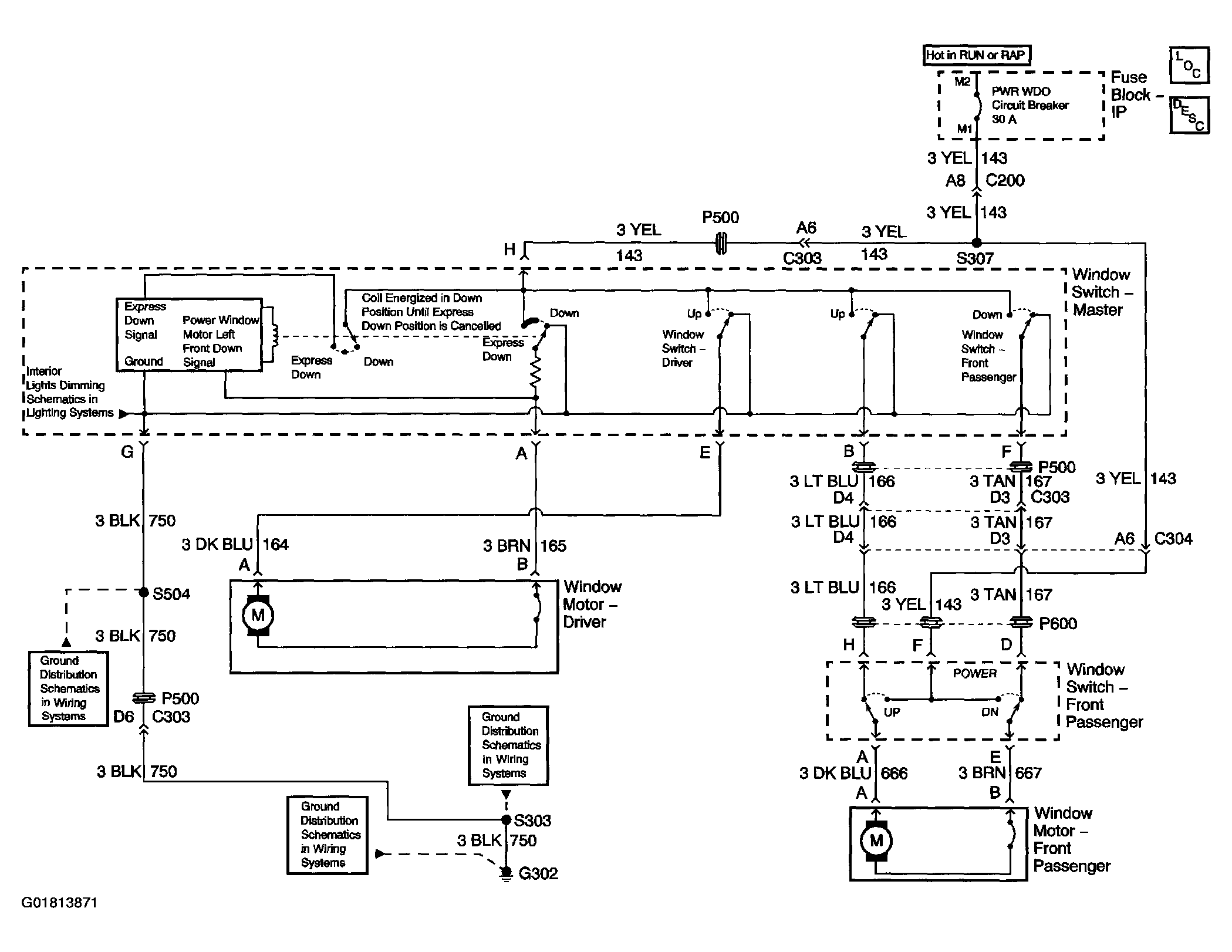

Fig 1: Power Window Schematics

Courtesy of GENERAL MOTORS CORP.

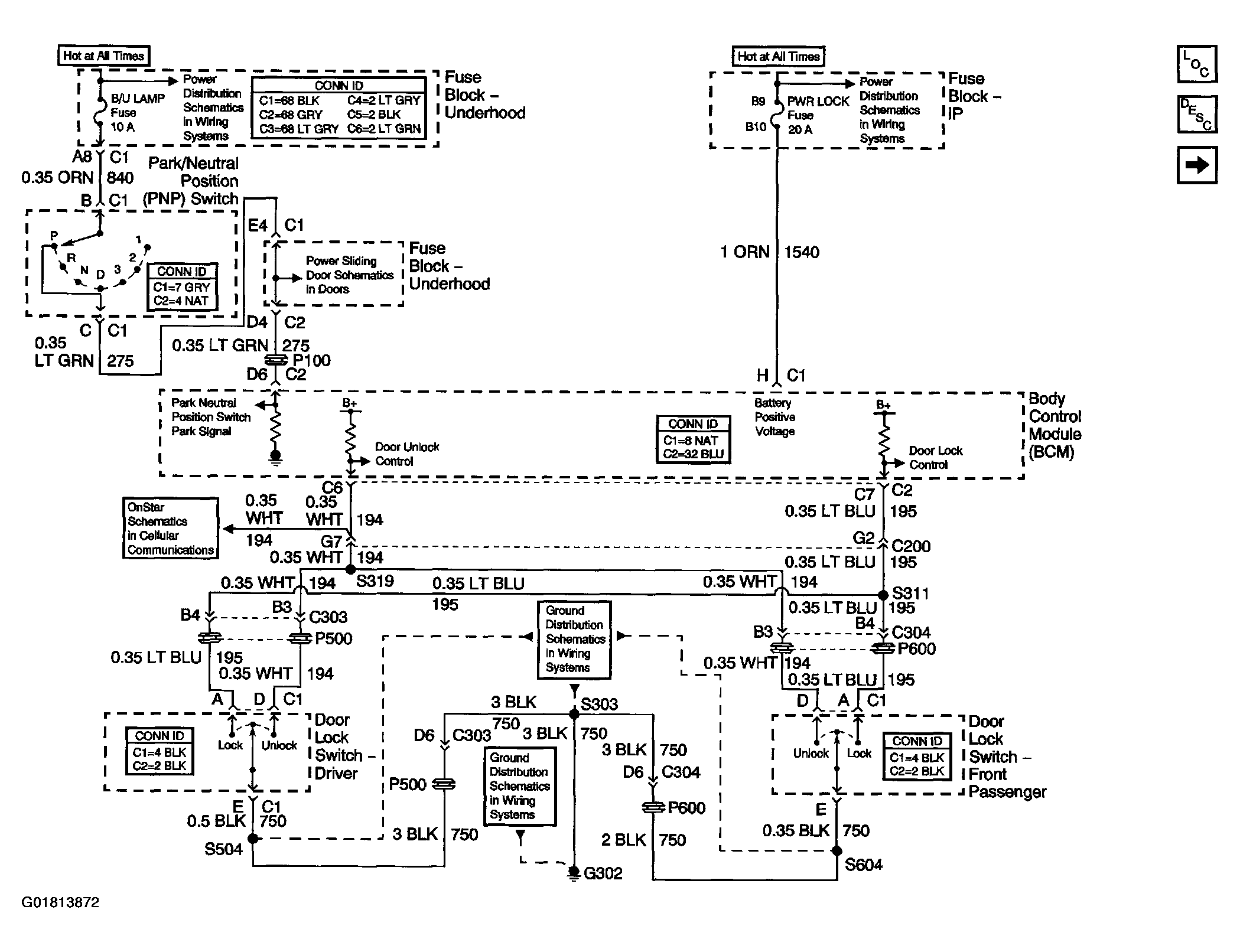

Fig 2: Door Lock/Indicator Schematics (Door Lock Switches)

Courtesy of GENERAL MOTORS CORP.

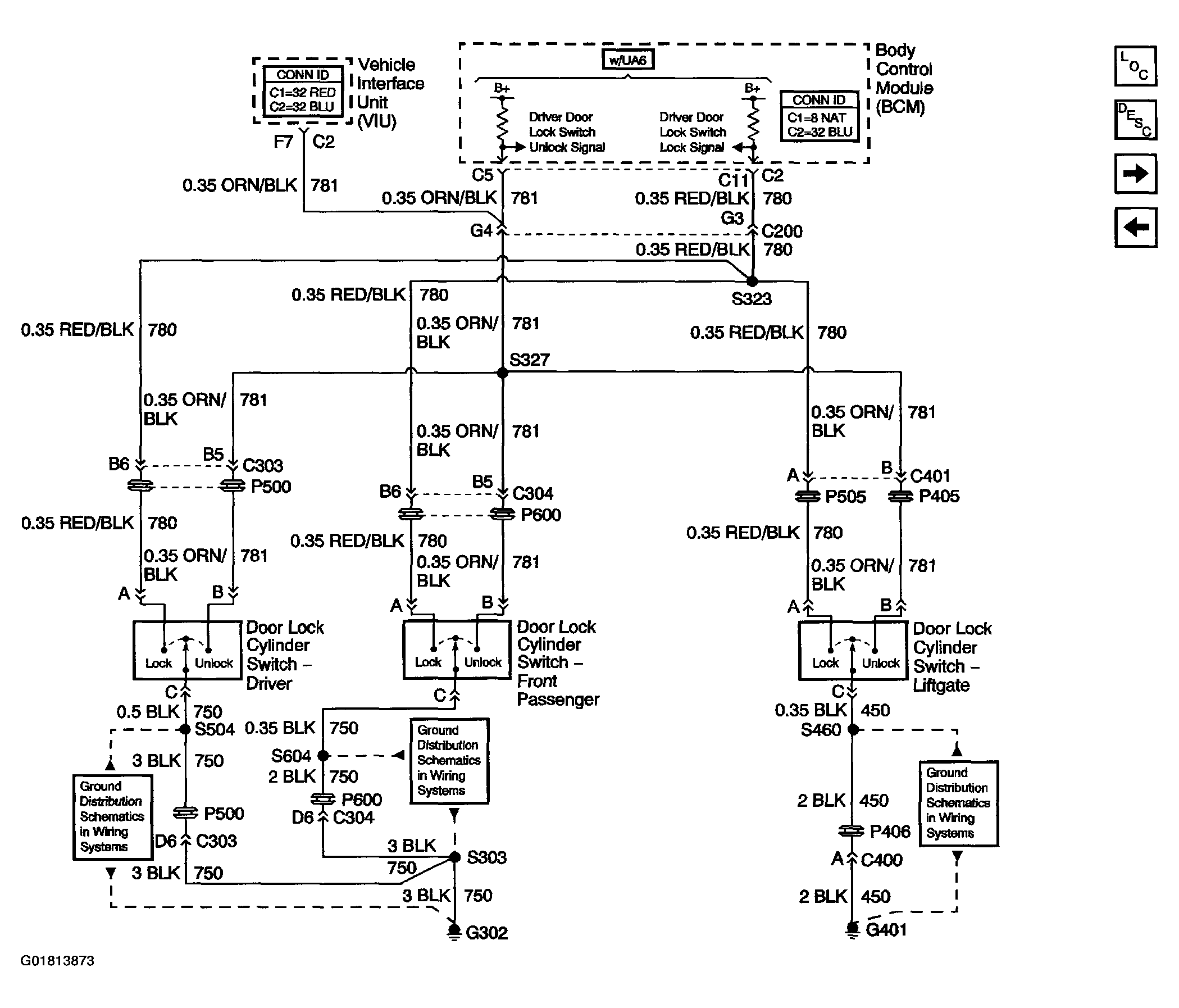

Fig 3: Door Lock/Indicator Schematics (Key Cylinder Switches)

Courtesy of GENERAL MOTORS CORP.

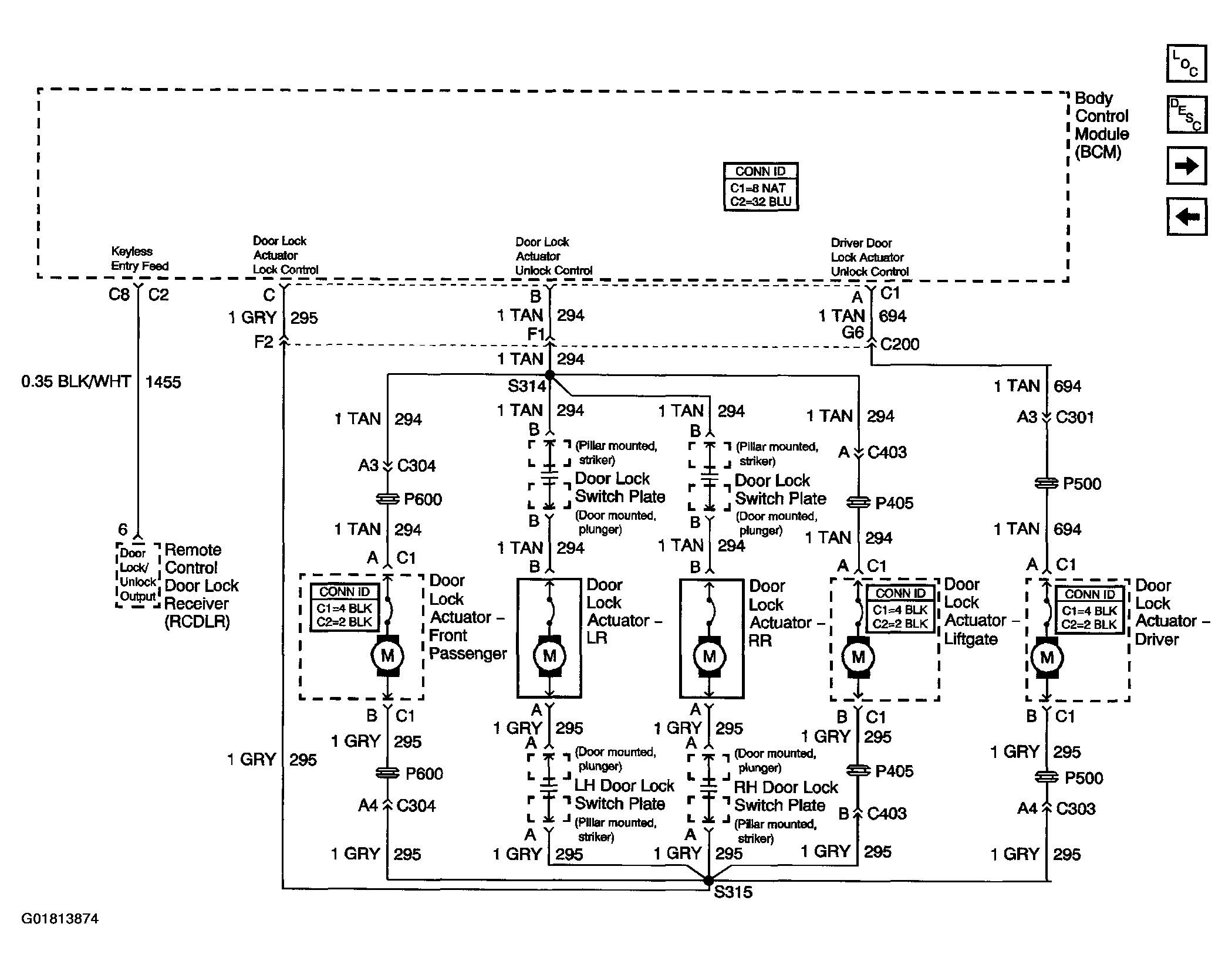

Fig 4: Door Lock/Indicator Schematics (Door Lock Actuators)

Courtesy of GENERAL MOTORS CORP.

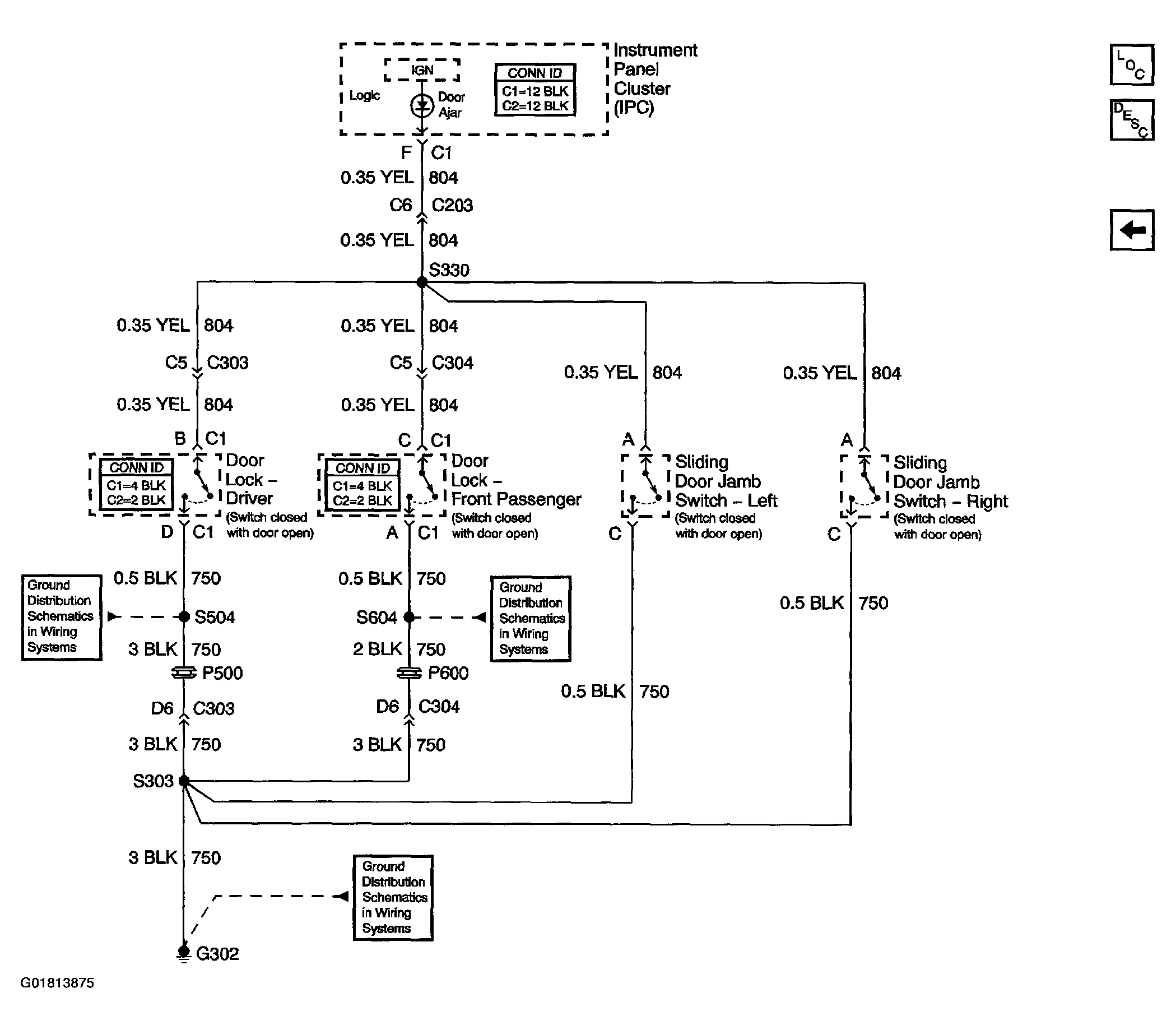

Fig 5: Door Lock/Indicator Schematics (IPC DOOR AJAR Telltale)

Courtesy of GENERAL MOTORS CORP.

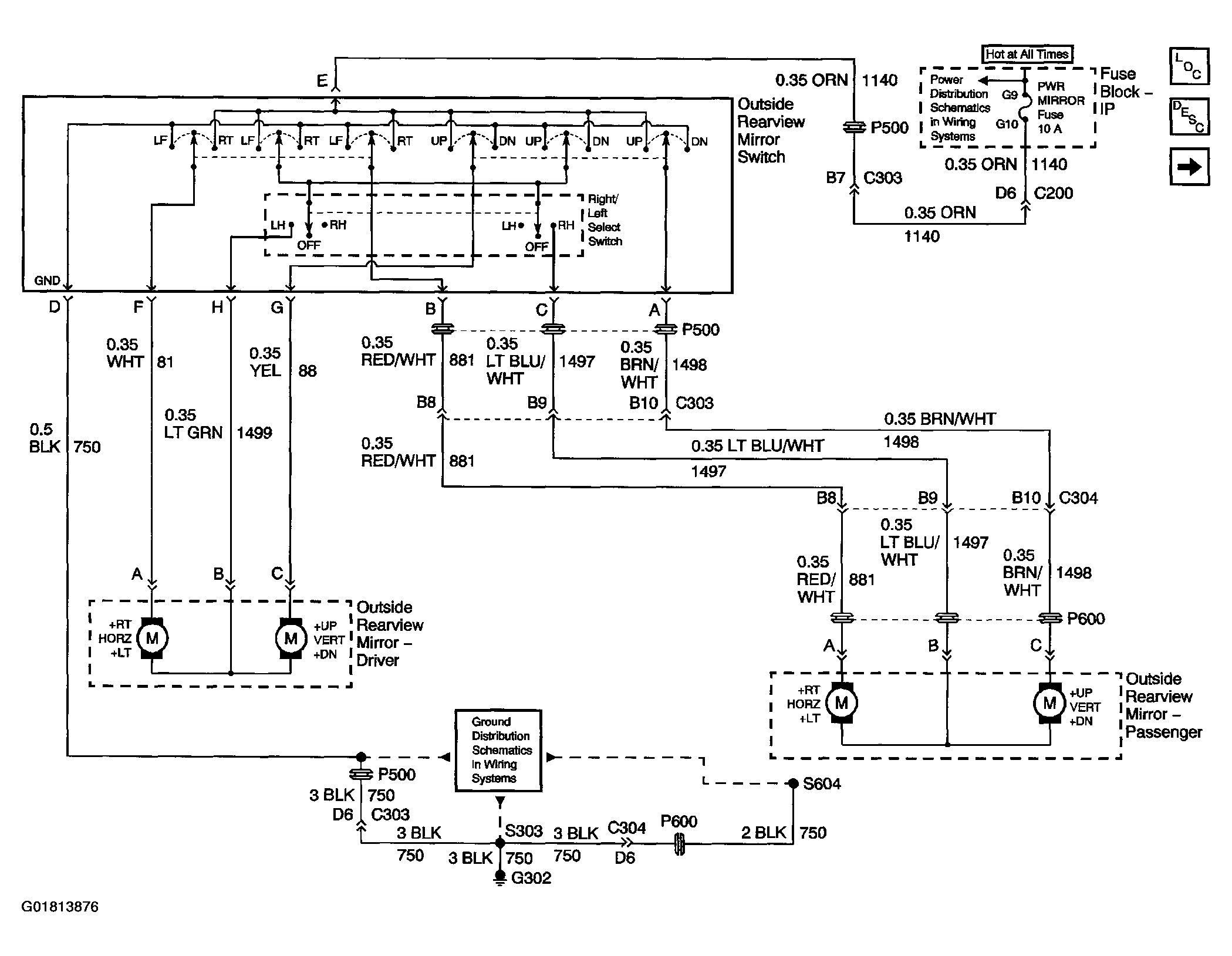

Fig 6: Outside Mirror Schematics (Power Mirrors)

Courtesy of GENERAL MOTORS CORP.

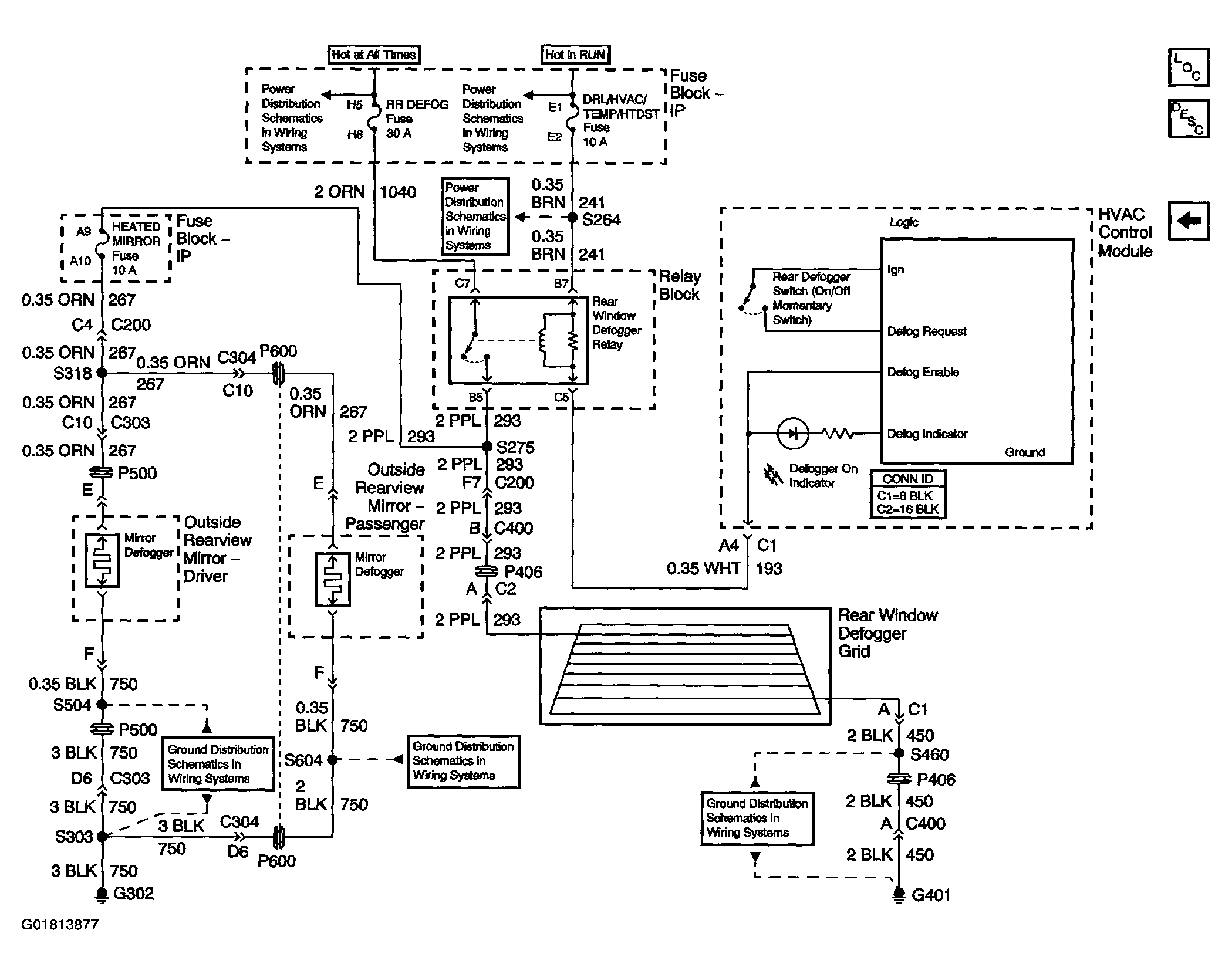

Fig 7: Outside Mirror Schematics (Heated Mirrors)

Courtesy of GENERAL MOTORS CORP.

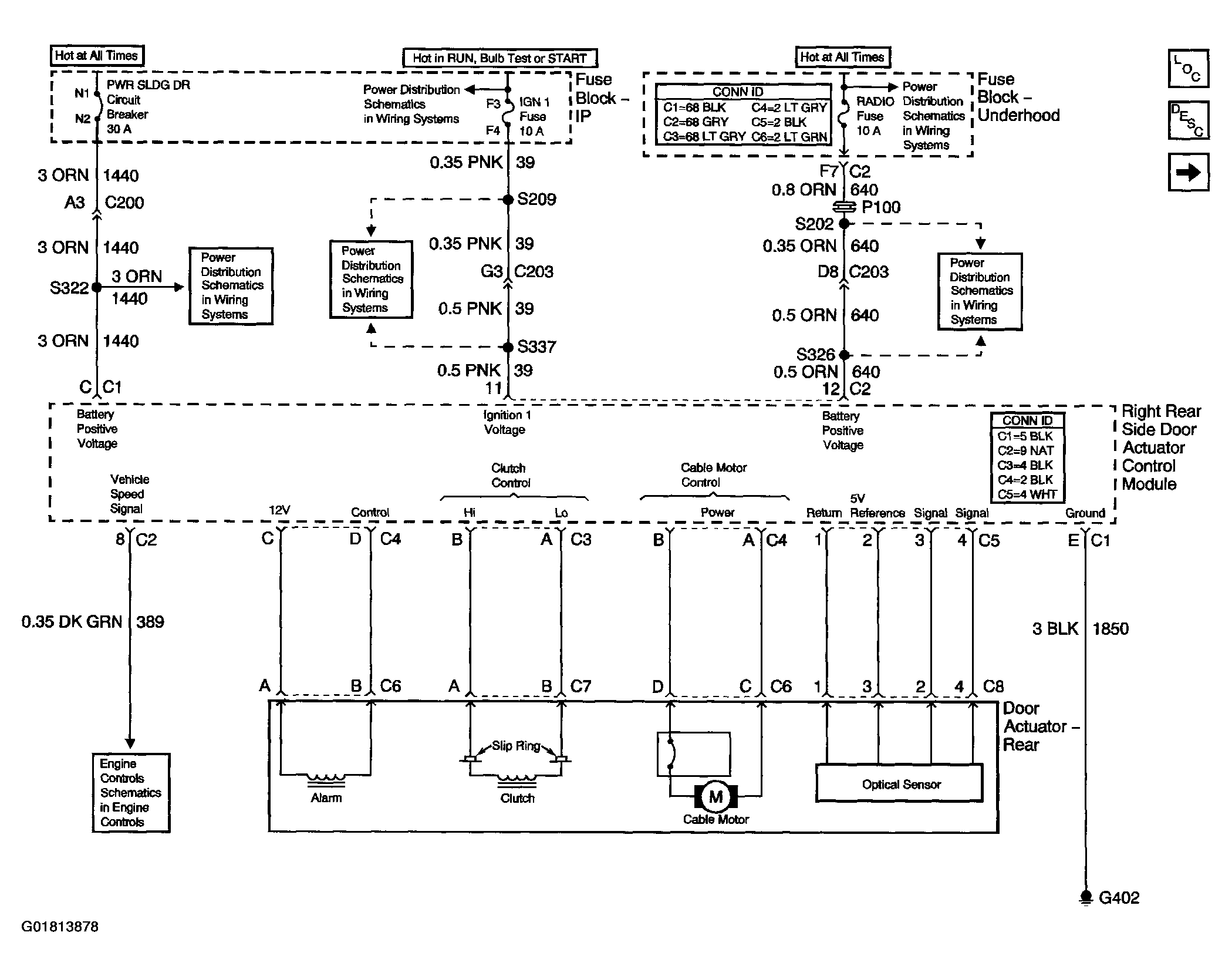

Fig 8: Power Sliding Door (PSD) Schematics (Right Door Power, Ground And PSD Motor)

Courtesy of GENERAL MOTORS CORP.

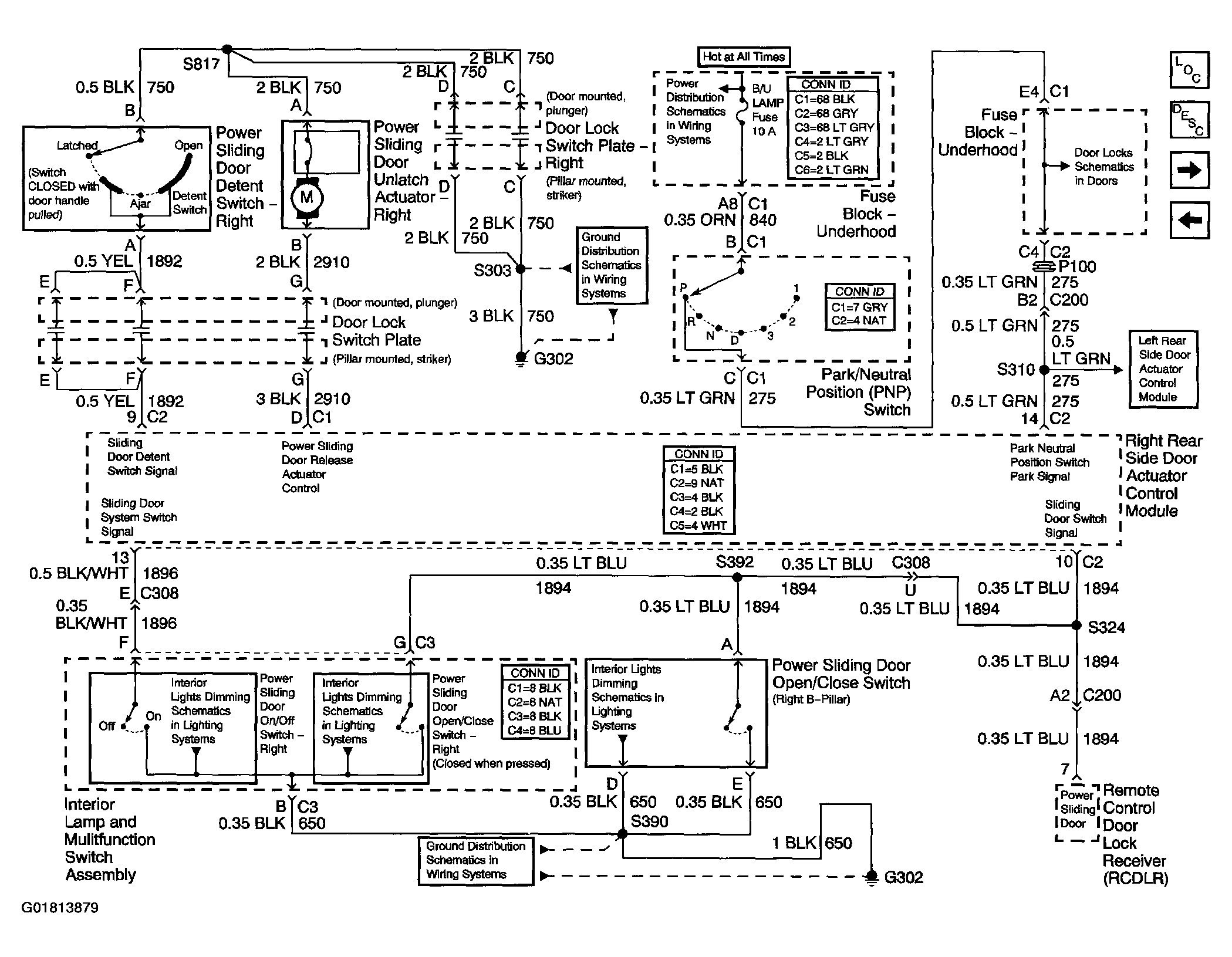

Fig 9: Power Sliding Door (PSD) Schematics (Right Door PSD Switches, Transmission Range Switch And RCDLR)

Courtesy of GENERAL MOTORS CORP.

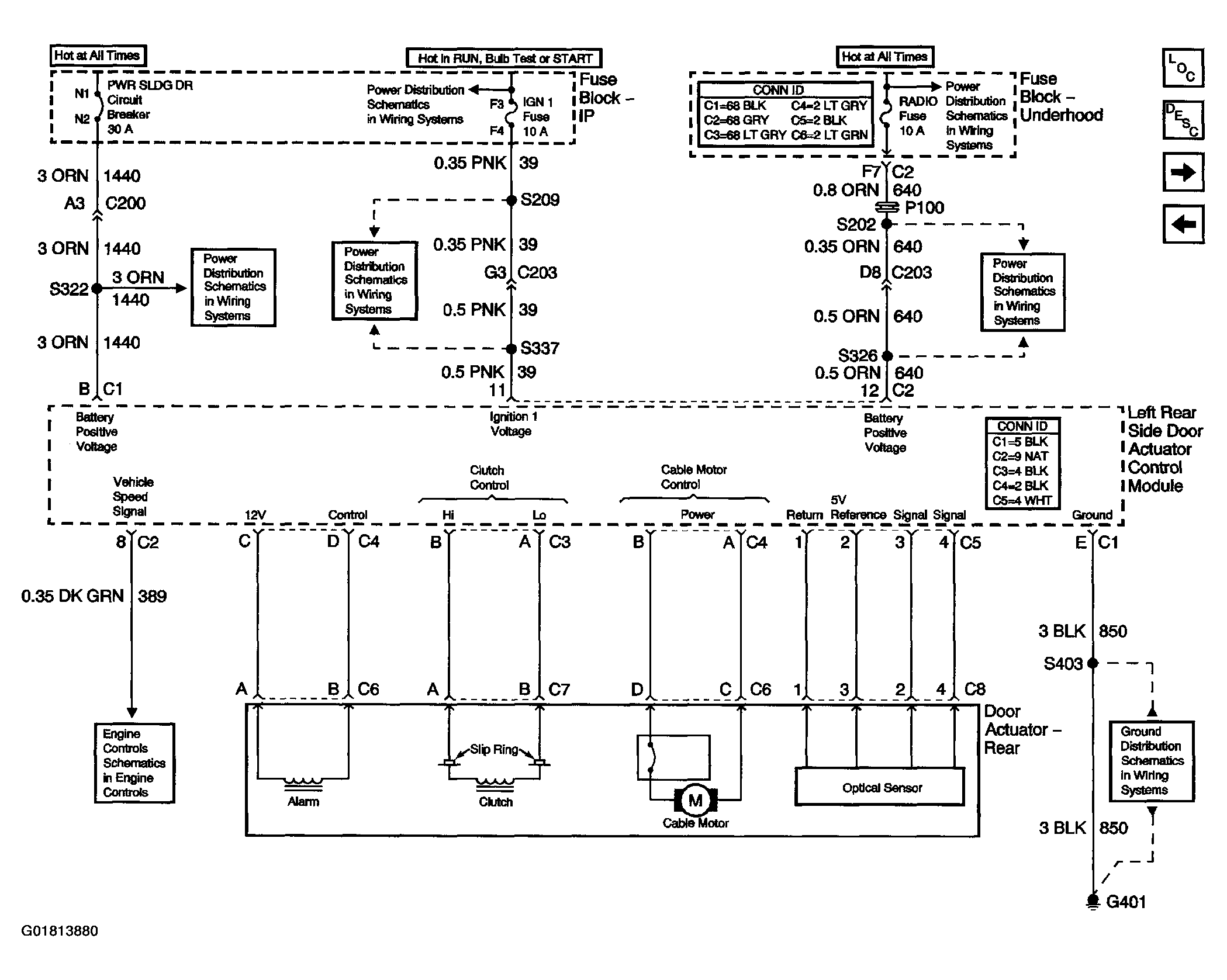

Fig 10: Power Sliding Door (PSD) Schematics (Left Door Power, Ground And PSD Motor)

Courtesy of GENERAL MOTORS CORP.

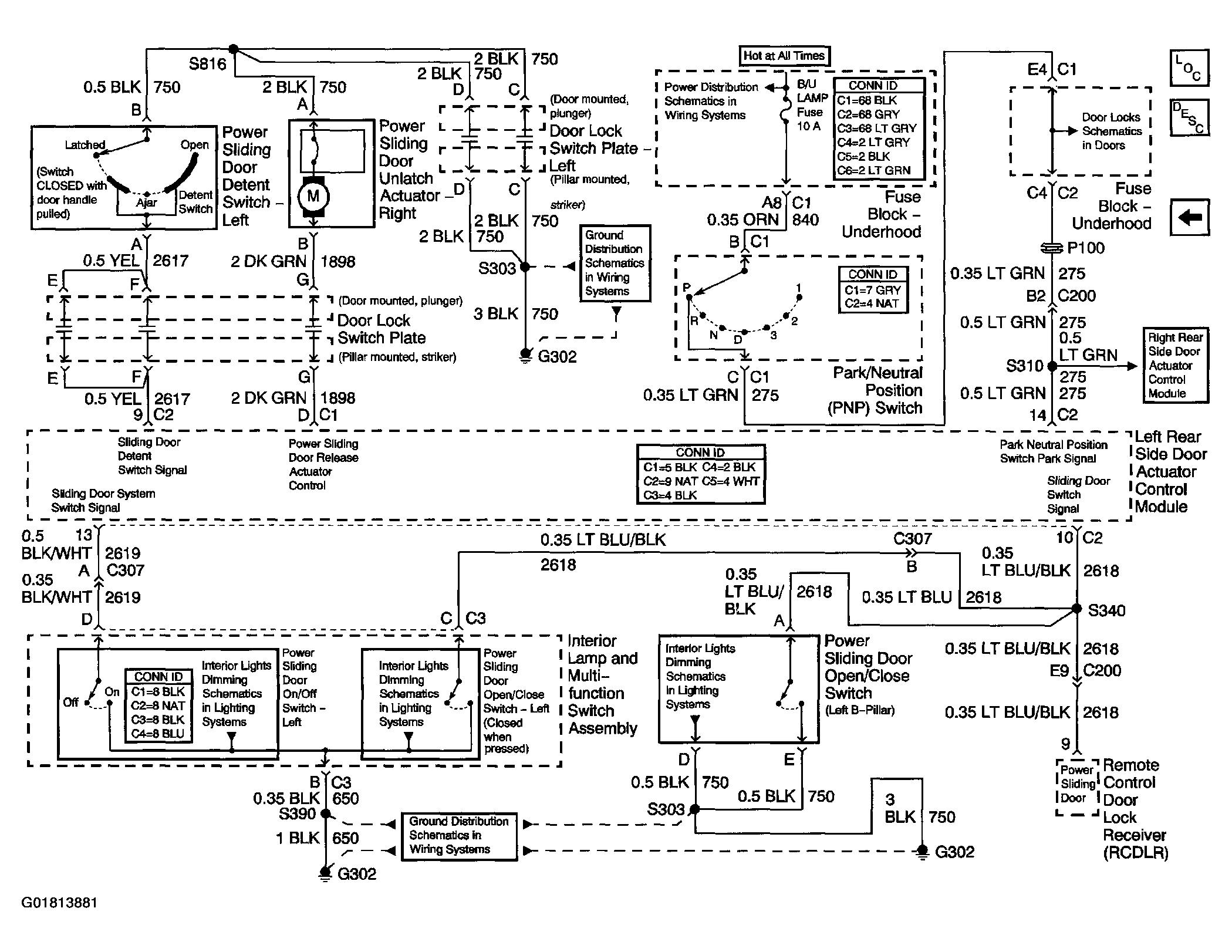

Fig 11: Power Sliding Door (PSD) Schematics (Left Door PSD Switches, Transmission Range Switch And RCDLR)

Courtesy of GENERAL MOTORS CORP.
