Removal Procedure

CAUTION: When working with any type of glass, use approved safety glasses and gloves to reduce the chance of personal injury.

Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
Remove the front door window inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
Using a small flat-bladed tool, press in on the retaining tabs to release the front door window from the front door window regulator track.
Slide the front door window from the lower run channel.

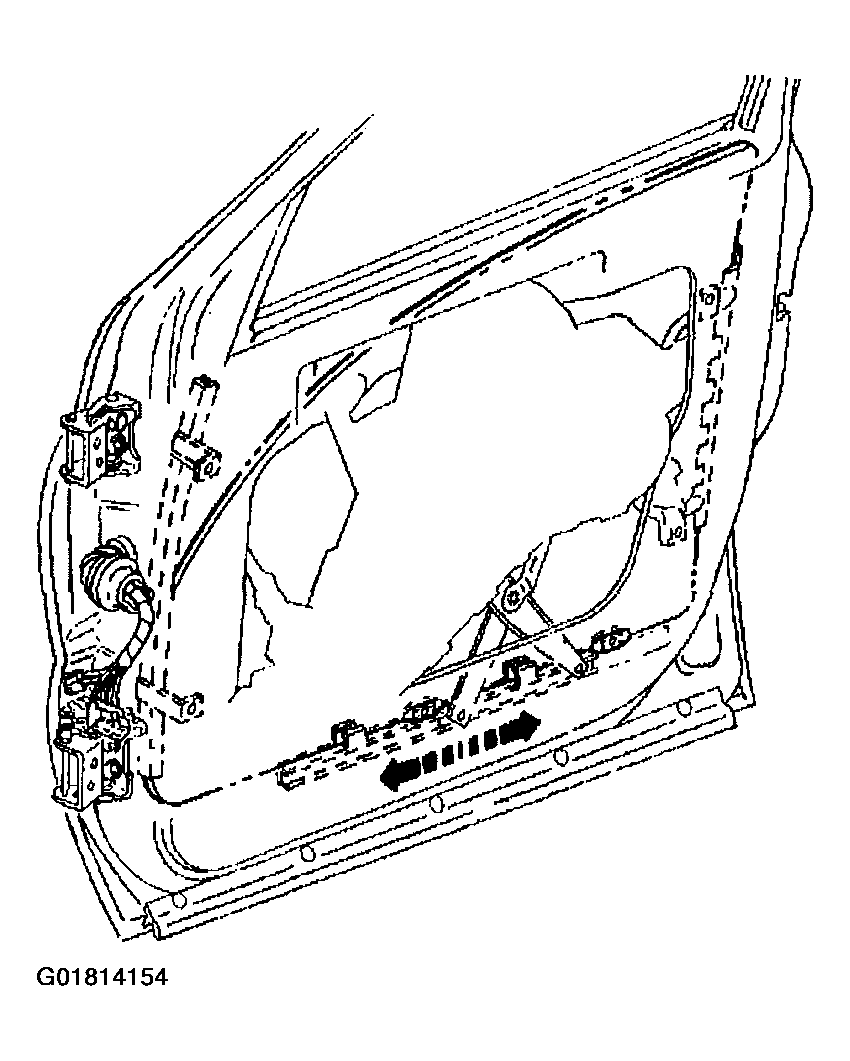

Fig 1: Removing Front Door Window Inner Belt Sealing Strip
Courtesy of GENERAL MOTORS CORP.
Remove the front door window from the front door.

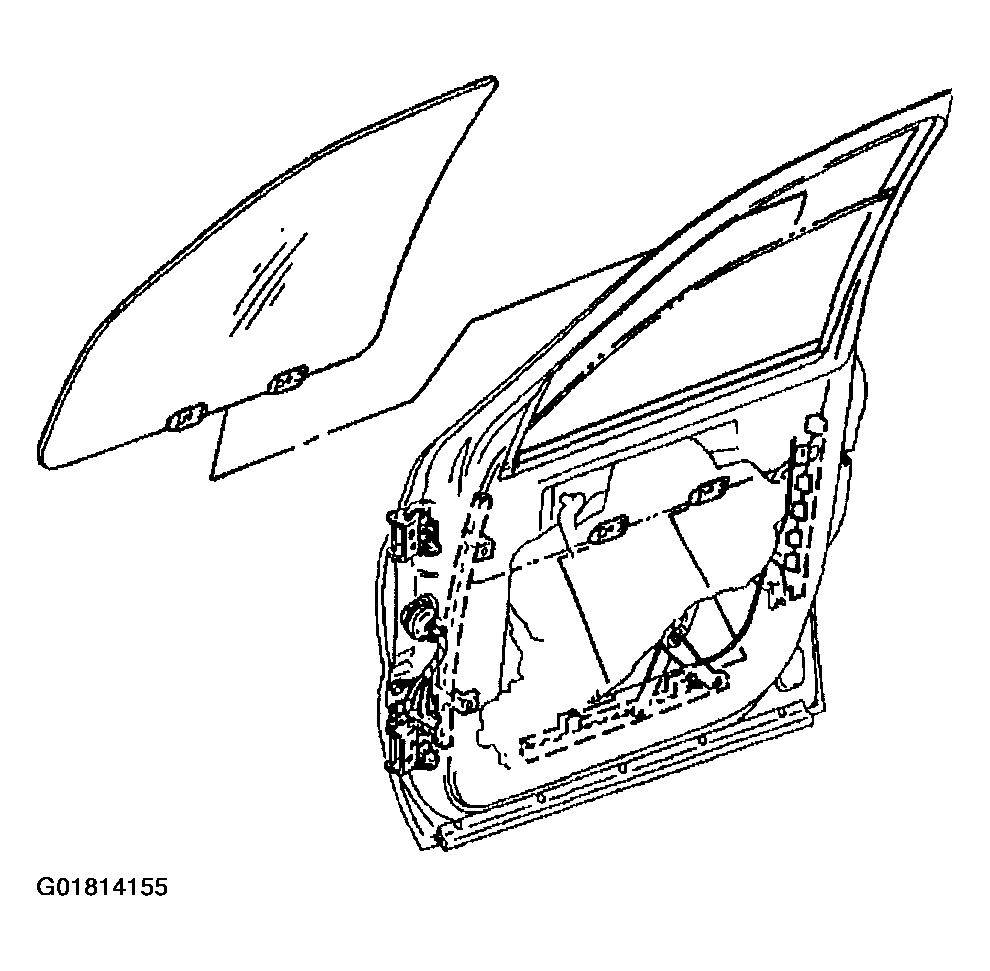

Fig 2: Removing Front Door Window
Courtesy of GENERAL MOTORS CORP.
