Home >> Chevrolet >> 2002 >> Venture Plus >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Weatherstrip Replacement - Window >> Removal Procedure

Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door window. Refer to Window Replacement - Front Door .
  4. Remove the weatherstrip from the door frame.

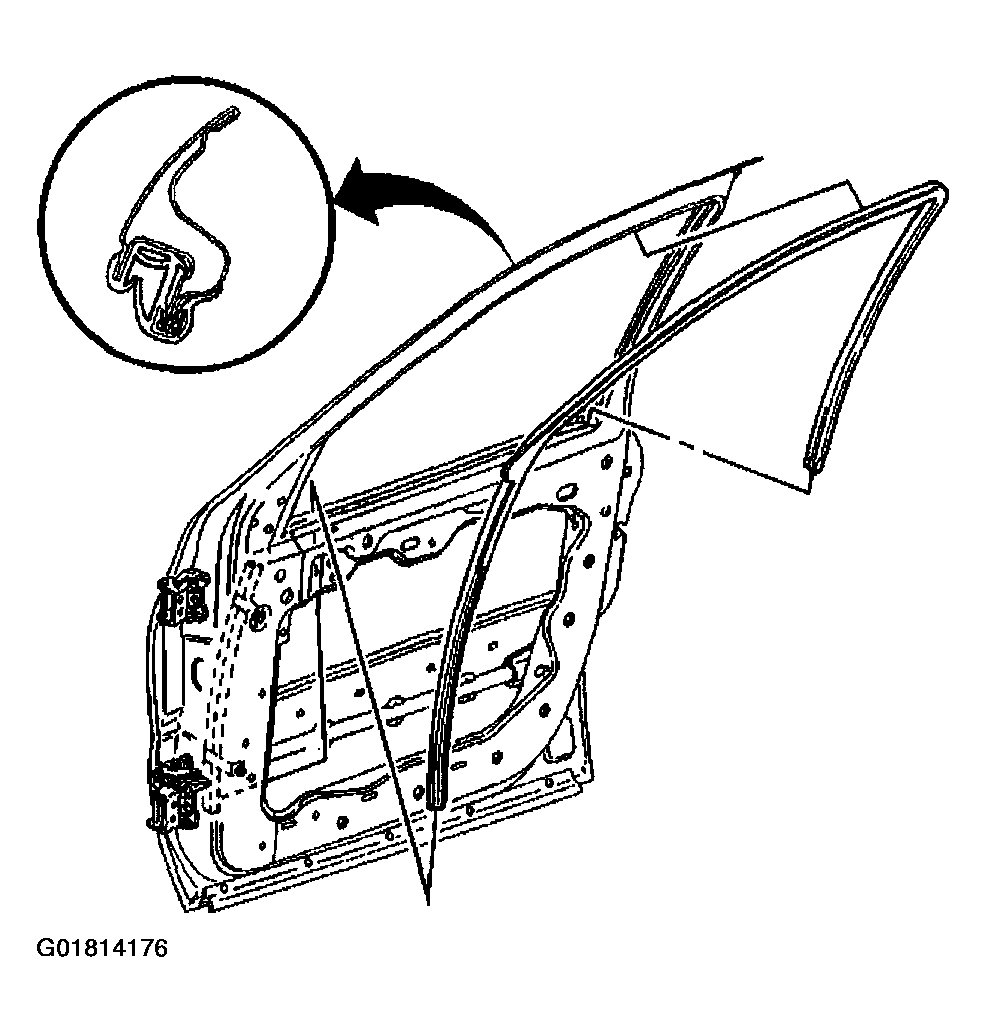

    Fig 1: Removing Weatherstrip From Door Frame (Window)
    G01814176Courtesy of GENERAL MOTORS CORP.
