Installation Procedure

  1. Install the weatherstrip to the door frame.
  2. Install the front door window. Refer to Window Replacement - Front Door .
  3. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .

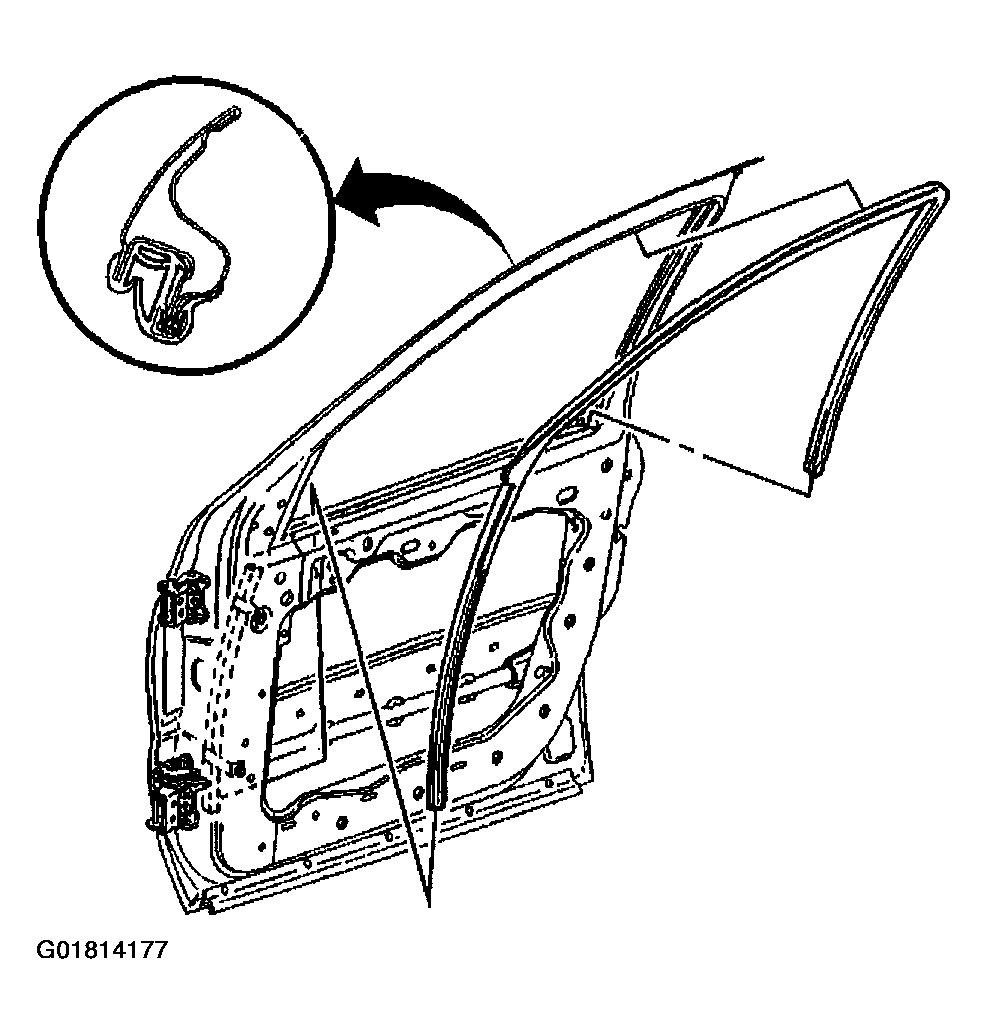

    Fig 1: Installing Weatherstrip To Door Frame (Window)
    G01814177Courtesy of GENERAL MOTORS CORP.
