Installation Procedure

Install the sliding door lower roller bracket to the lower track.

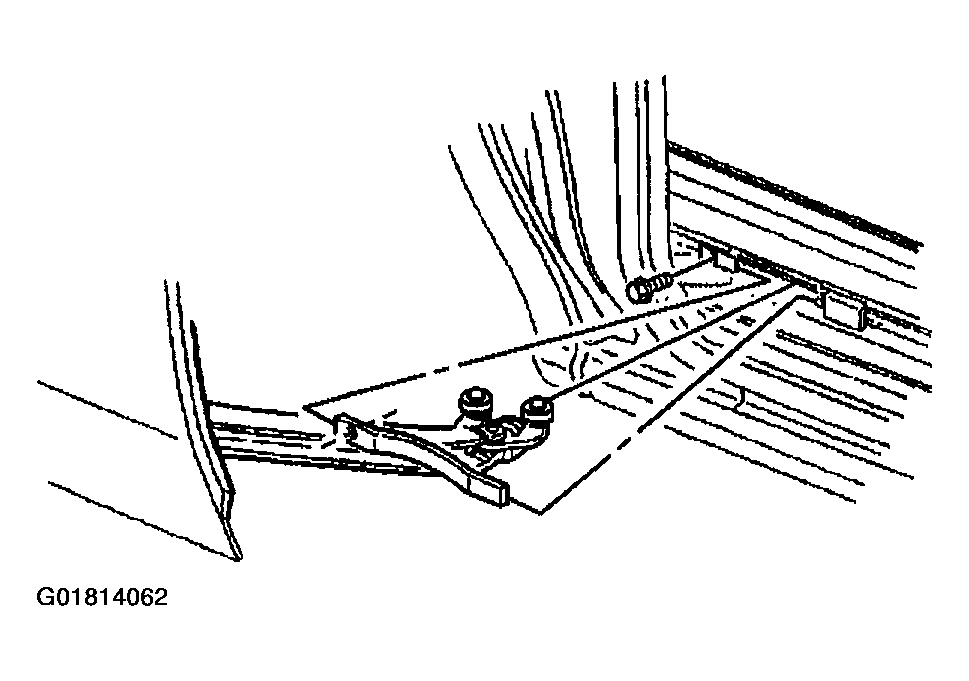

Fig 1: Installing Sliding Door Lower Roller Bracket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the sliding door catch with reinforcement channel bolt at the sliding door lower track.
Tighten

Tighten the reinforcement channel bolt to 12 N.m (106 lb in).

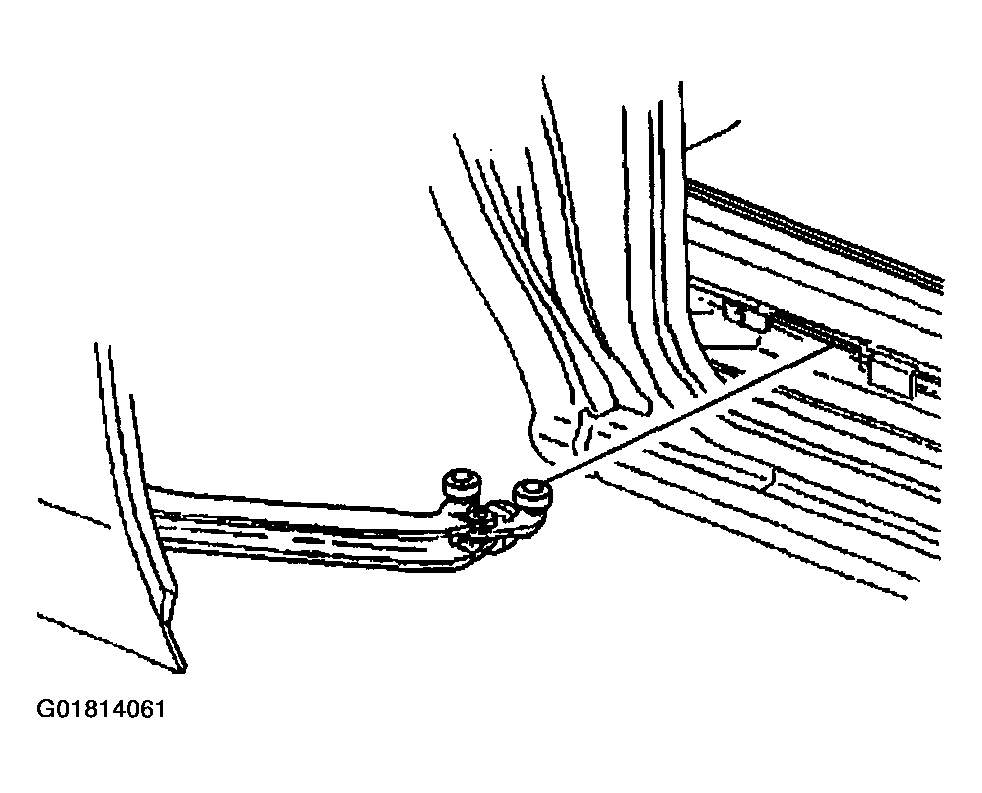

Fig 2: Installing Sliding Door Lower Roller Bracket To Lower Track
Courtesy of GENERAL MOTORS CORP.
Align the sliding door lower roller bracket to the grease pencil marks on the sliding door.
Install the sliding door lower roller bracket bolts.
Tighten

Tighten the lower roller bracket bolts to 25 N.m (18 lb ft).
Remove the support from the sliding door.
Install the front edge of the sliding door inner trim panel to the sliding door.

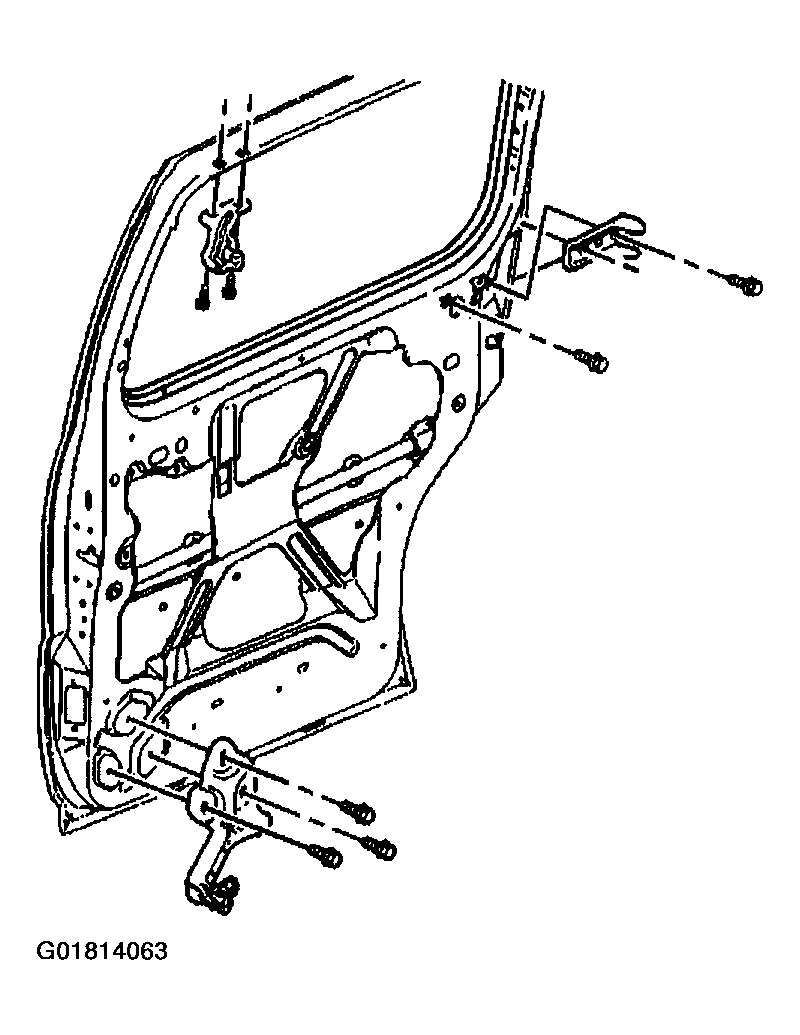

Fig 3: Installing Sliding Door Lower Roller Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
