Removal Procedure

  1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
  2. Lift up in order to unsnap the switch mounting plate from the front door trim panel.
  3. Disconnect the electrical connectors.

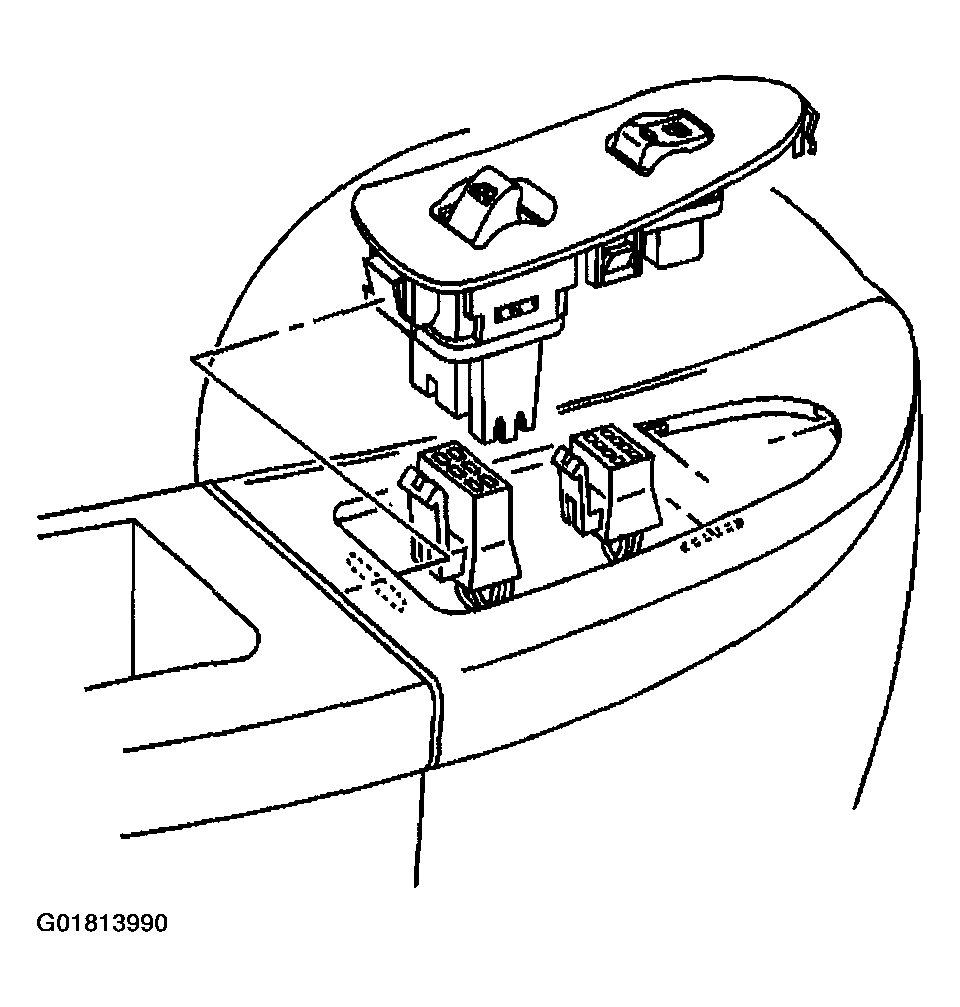

    Fig 1: Removing Switch Mounting Plate (Right Front)
    G01813990Courtesy of GENERAL MOTORS CORP.
  4. Unsnap the power window switch from the switch mounting plate.

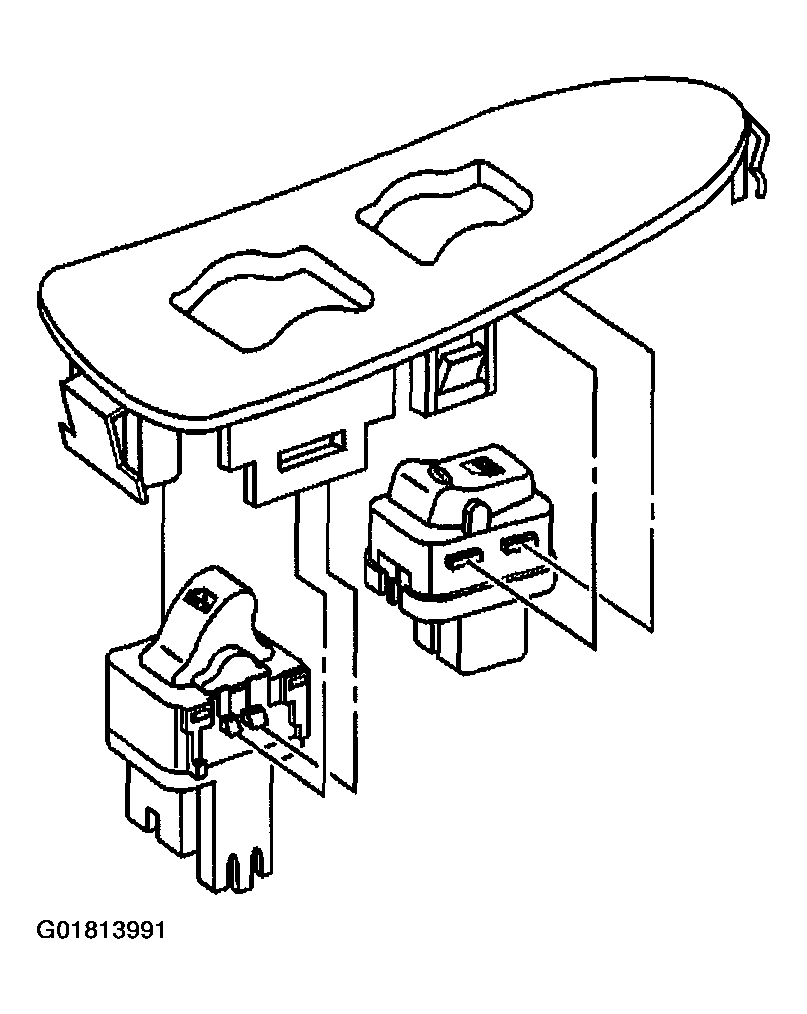

    Fig 2: Removing Power Window Switch (Right Front)
    G01813991Courtesy of GENERAL MOTORS CORP.
