Installation Procedure

Install the power window switch to the switch mounting plate.

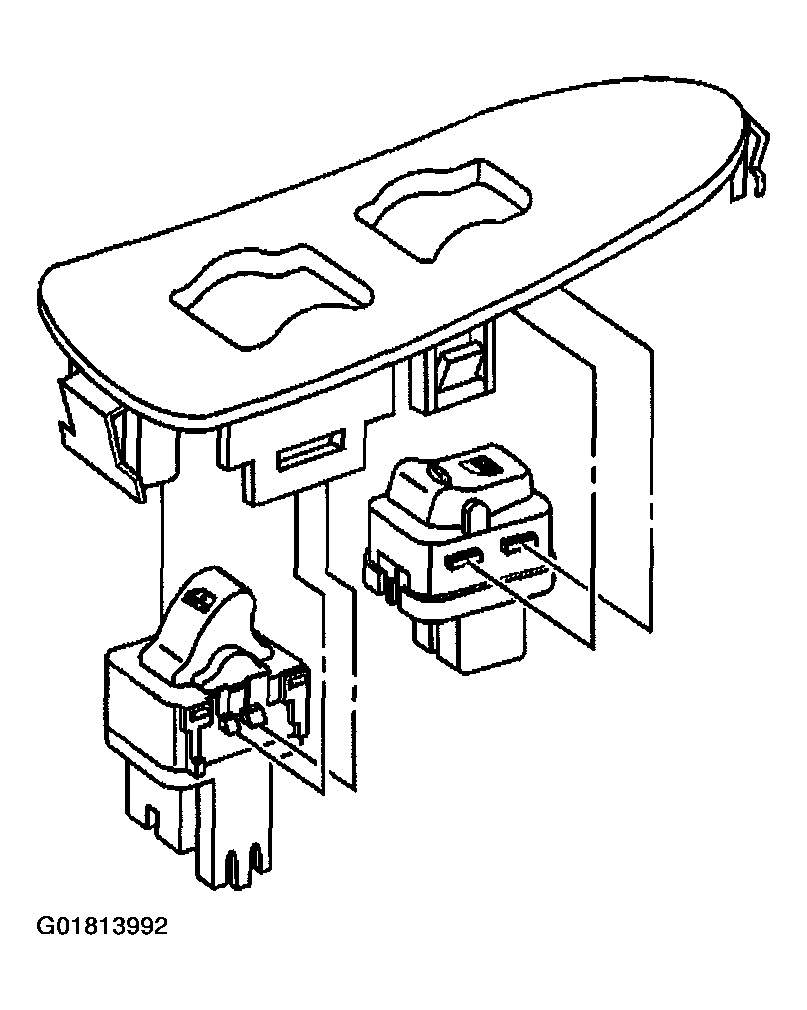

Fig 1: Installing Power Window Switch (Right Front)
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors.
Install the switch mounting plate to the front door trim panel.

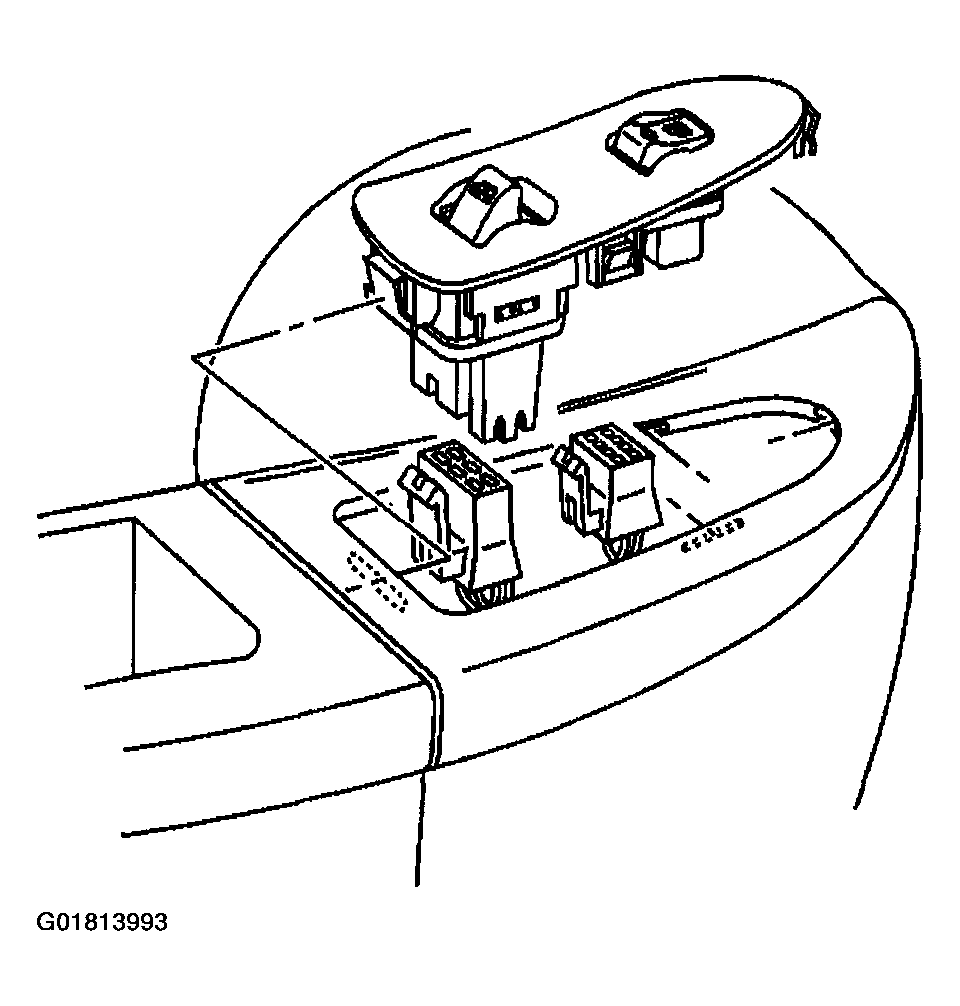

Fig 2: Installing Switch Mounting Plate (Right Front)
Courtesy of GENERAL MOTORS CORP.

Insert the front edge into the trim panel and snap down the rear of the switch mounting plate to the front door trim panel.
