Removal Procedure

  1. Use the following procedure in order to remove the power mirror switch.
    1. 1.1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
    2. 1.2. Lift up in order to unsnap the switch mounting plate from the front door trim panel.
  2. Disconnect the electrical connectors.

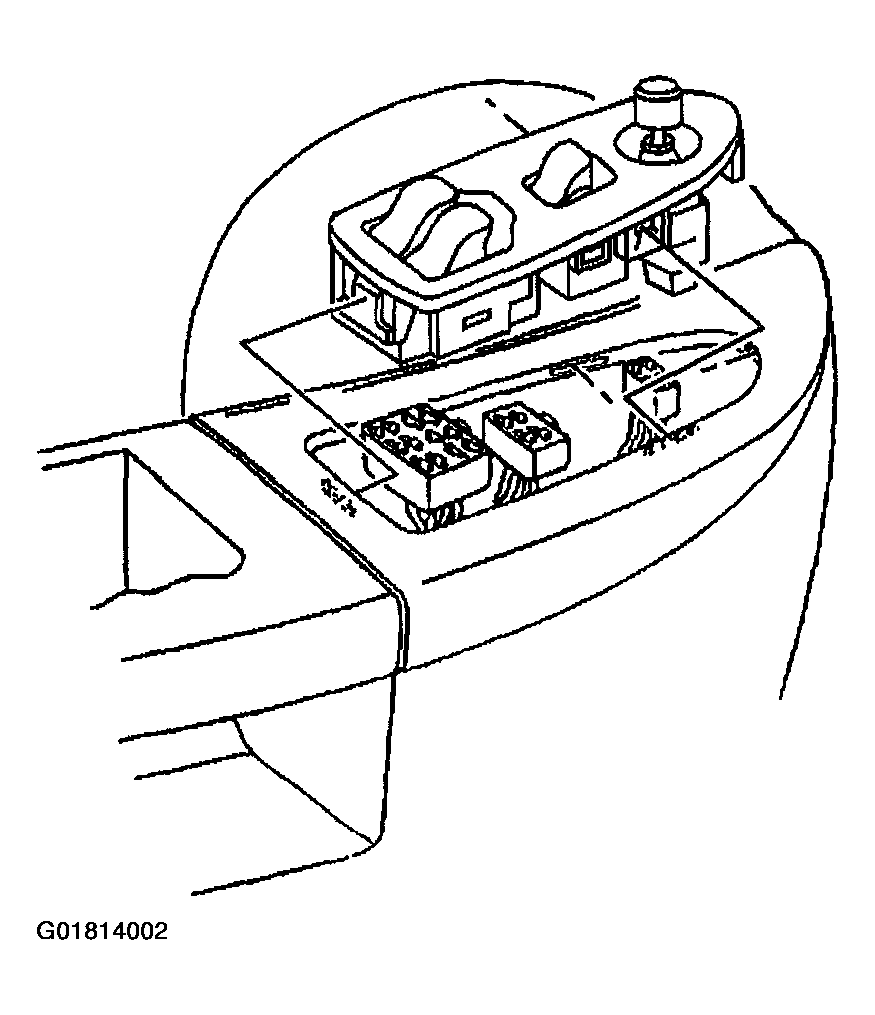

    Fig 1: Removing Power Mirror Switch
    G01814002Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the power mirror switch from the switch mounting plate.

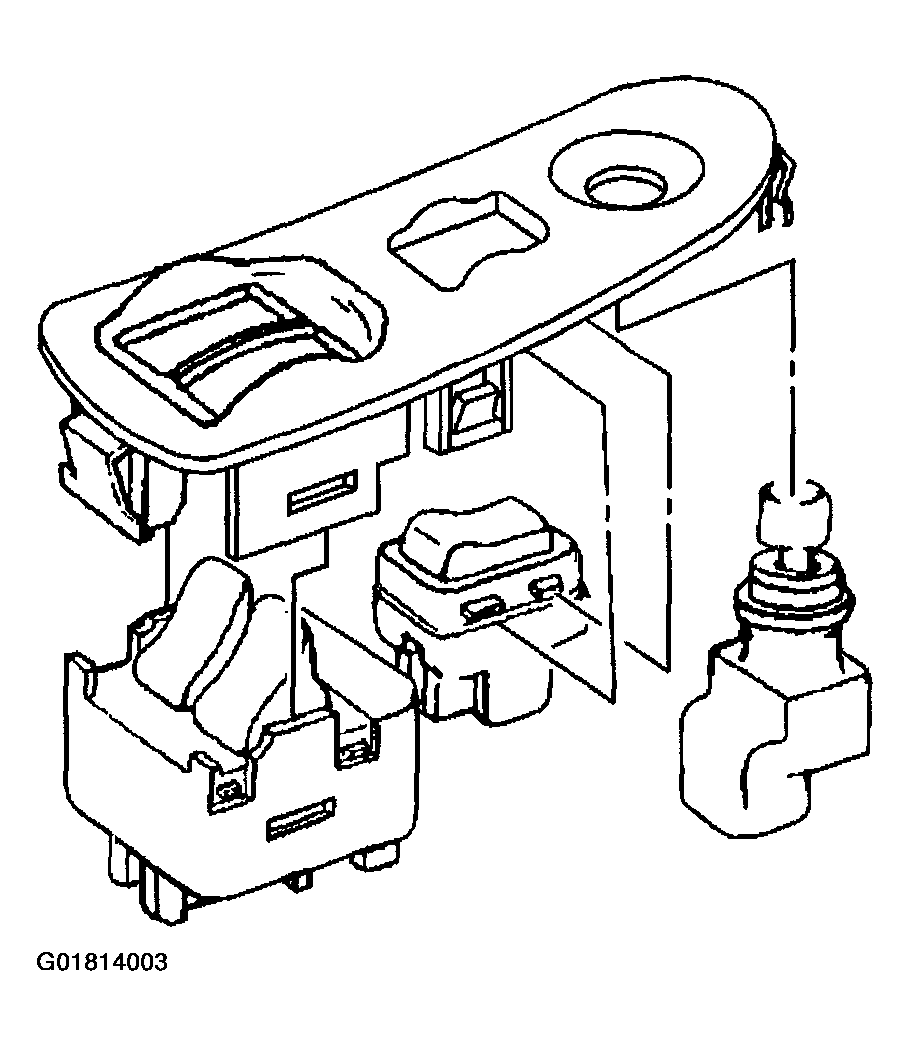

    Fig 2: Removing Power Mirror Switch & Mounting Plate
    G01814003Courtesy of GENERAL MOTORS CORP.
