Removal Procedure

Remove the front door lock module. Refer to Door Module Replacement - Front .
Using a small flat-bladed tool, press down on the locking tab and remove the front door inside handle.

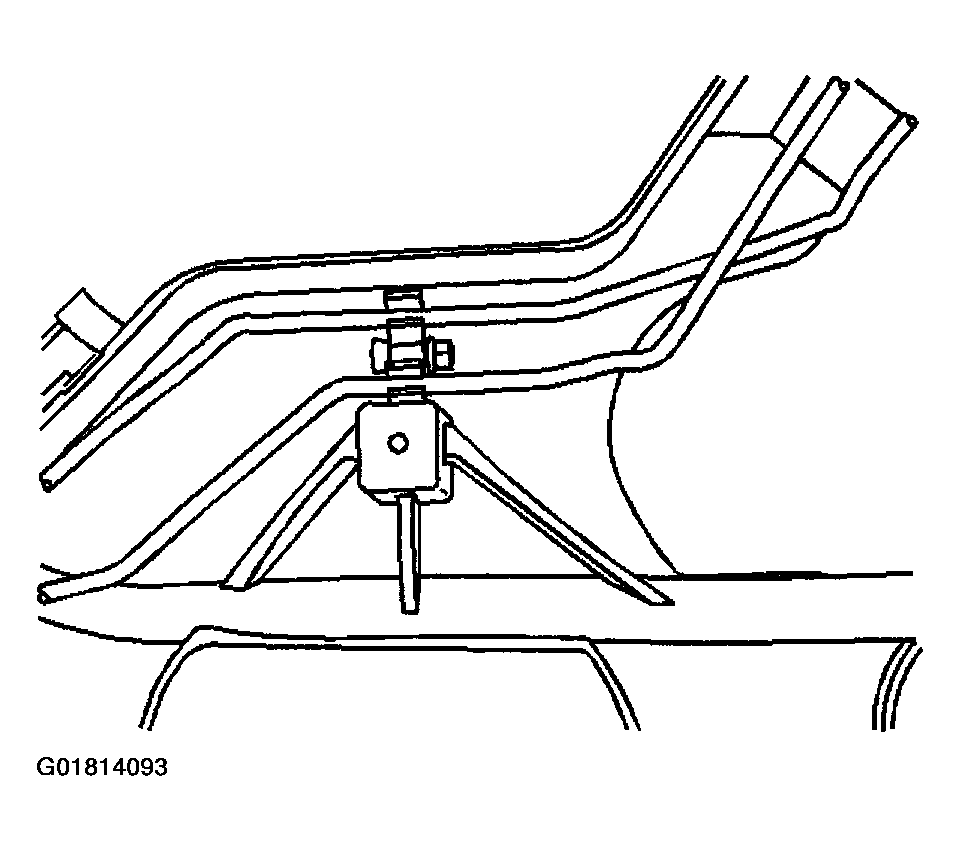

Fig 1: Removing Front Door Lock Module
Courtesy of GENERAL MOTORS CORP.
Disconnect the front door inside handle rods from the rod guide.

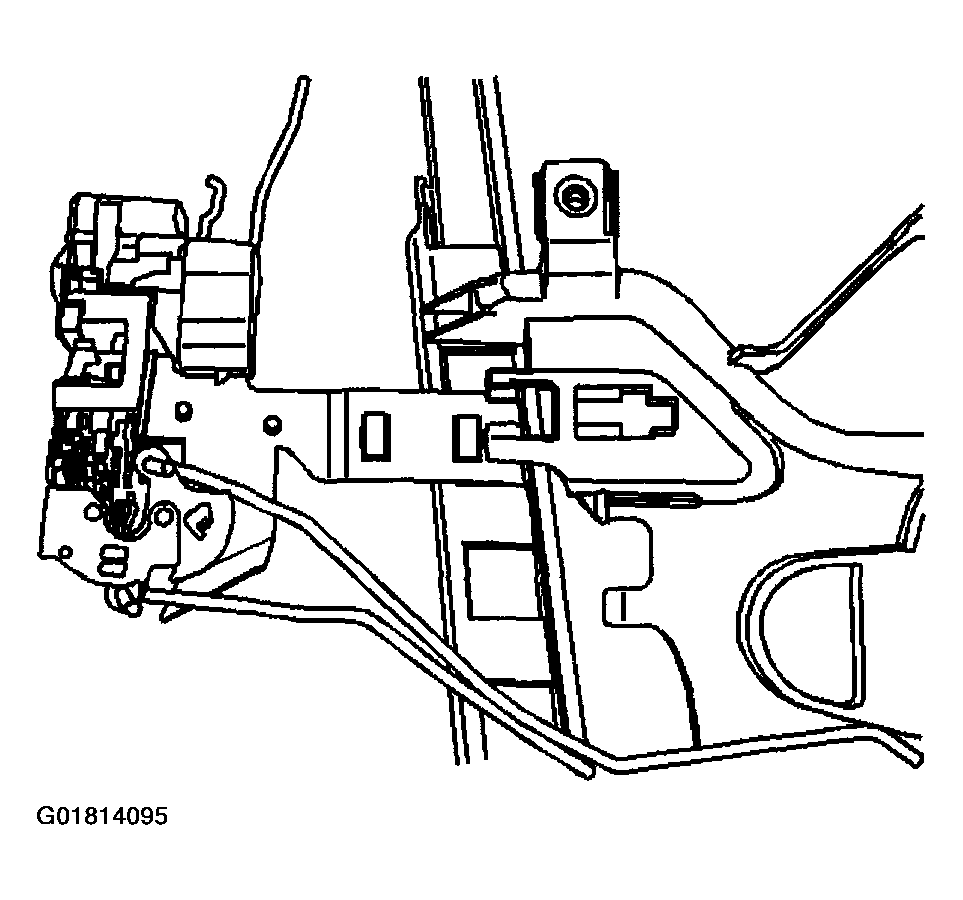

Fig 2: Disconnecting Front Door Inside Handle Rods From Rod Guide
Courtesy of GENERAL MOTORS CORP.
Using a small flat-bladed tool, press the front door lock retainer in and slide forward to disengage the front door lock from the front door lock module.

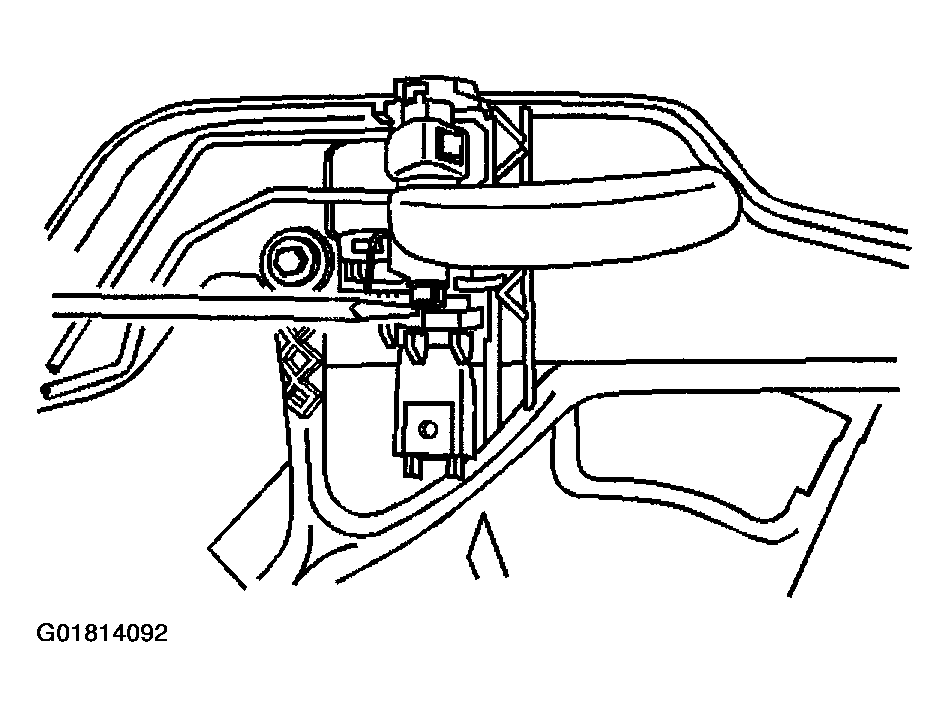

Fig 3: Removing Front Door Lock Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the front door lock from the front door lock module.

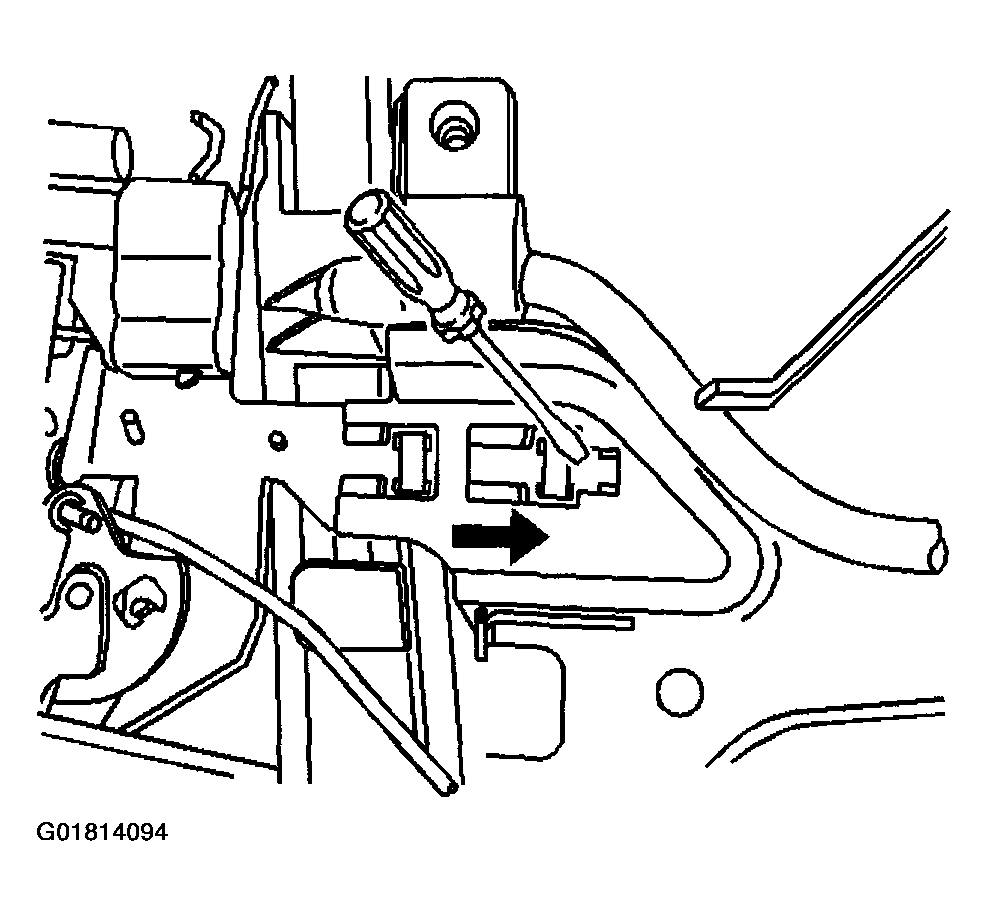

Fig 4: Removing Front Door Lock From Front Door Lock Module
Courtesy of GENERAL MOTORS CORP.
Disconnect the front door inside handle rods from the front door lock.
