Removal Procedure

  1. Use the following procedure in order to remove the switch mounting plate:
    1. 1.1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
    2. 1.2. Lift up in order to unsnap the mounting plate from the front door trim panel.
  2. Disconnect the electrical connectors.

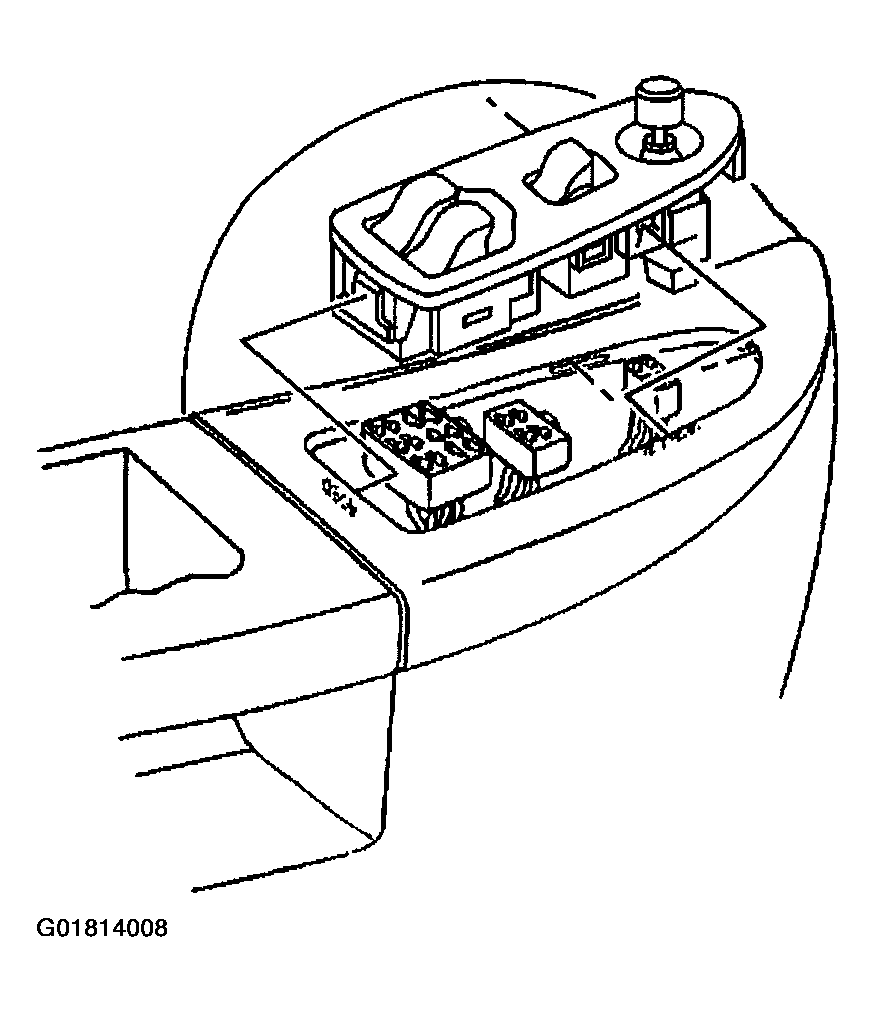

    Fig 1: Removing Switch Mounting Plate (Door Trim Plate)
    G01814008Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the switch from the mounting plate.

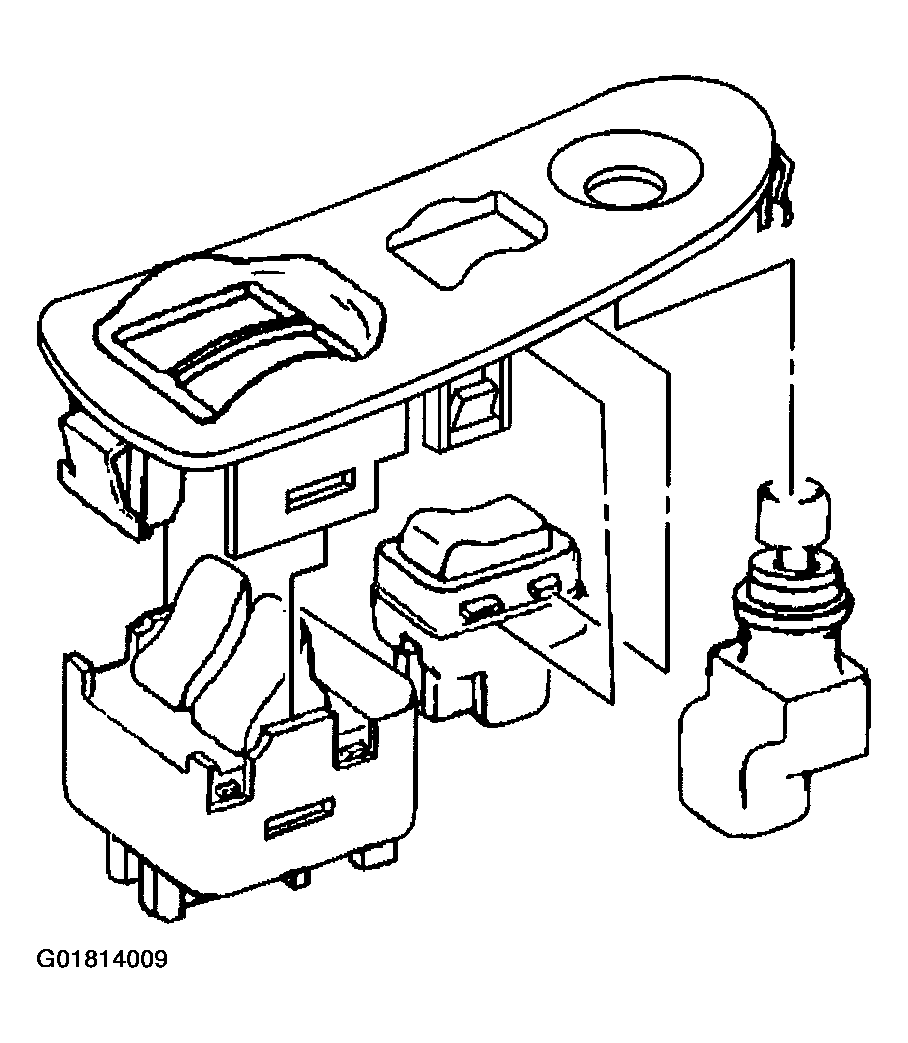

    Fig 2: Disconnecting Electrical Connectors (Door Trim Plate)
    G01814009Courtesy of GENERAL MOTORS CORP.
