Power Seat Systems Connector End Views

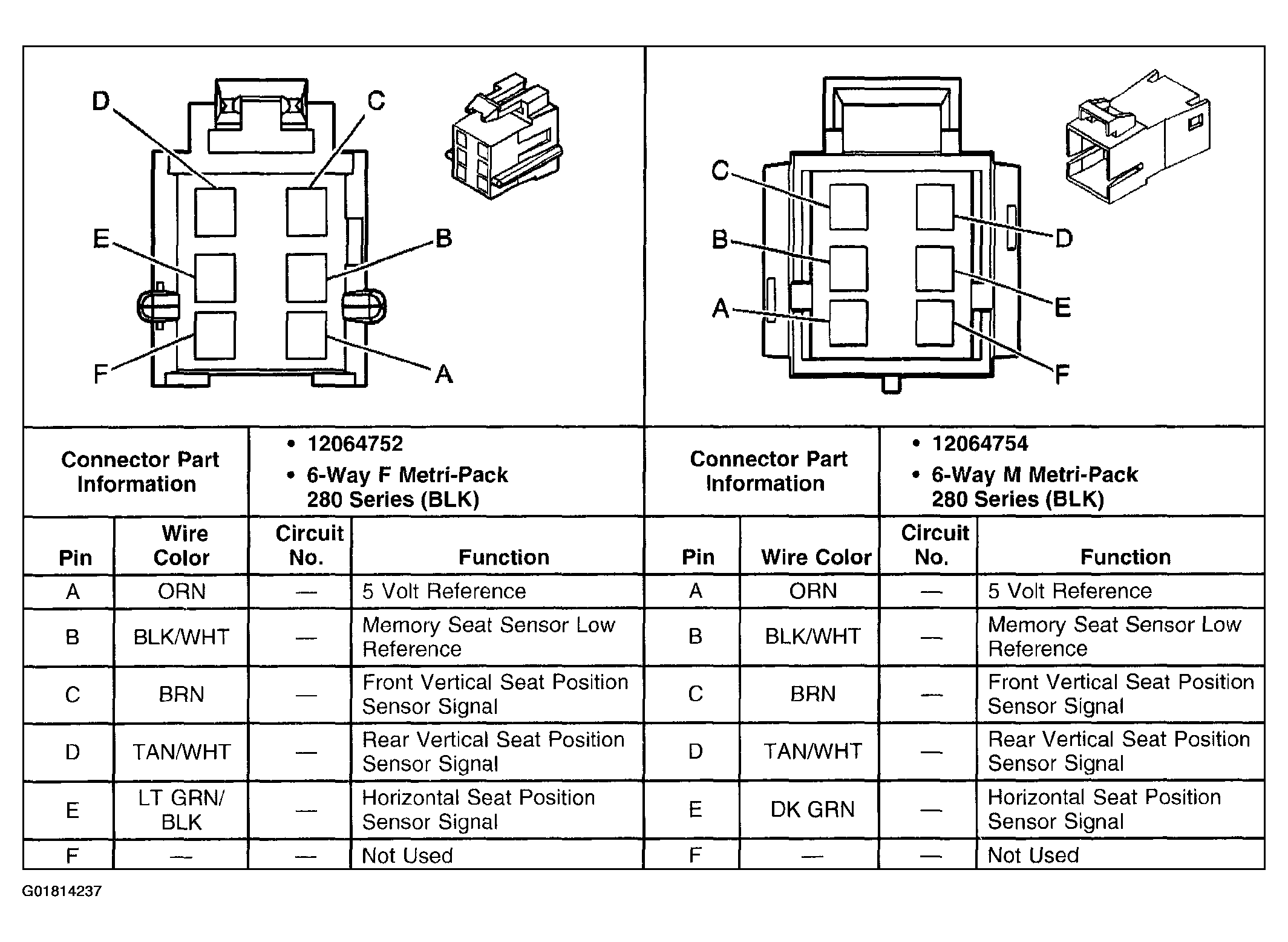

Fig 1: Horizontal Position And Rear Vertical Sensors - Driver Side (w/Memory)

Courtesy of GENERAL MOTORS CORP.

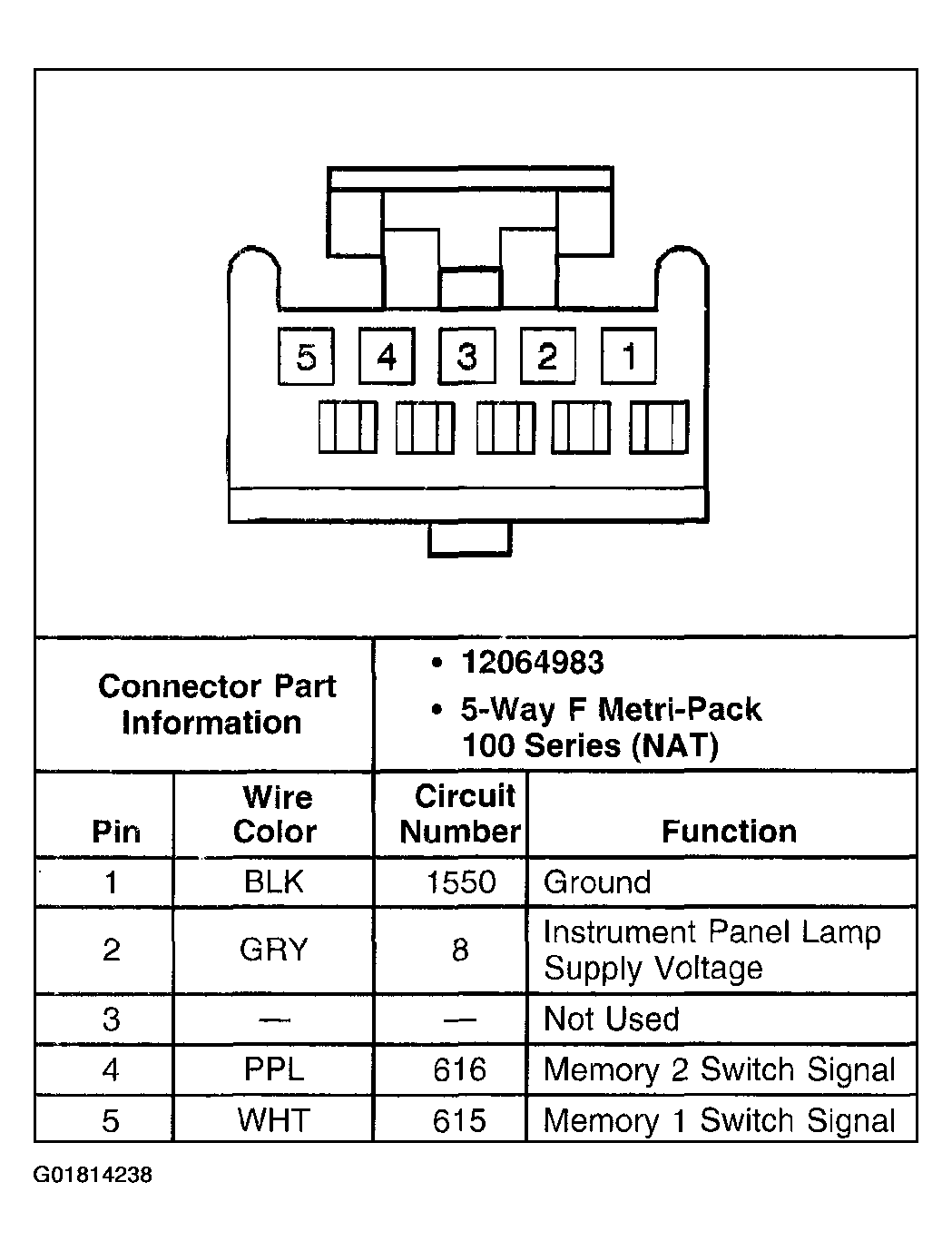

Fig 2: Memory Seat Switch

Courtesy of GENERAL MOTORS CORP.

Fig 3: Memory Seat Module Connector C1

Courtesy of GENERAL MOTORS CORP.

Fig 4: Memory Seat Module Connector C2

Courtesy of GENERAL MOTORS CORP.

Fig 5: Memory Seat Module Connector C3

Courtesy of GENERAL MOTORS CORP.

Fig 6: Memory Seat Module Connector C4

Courtesy of GENERAL MOTORS CORP.

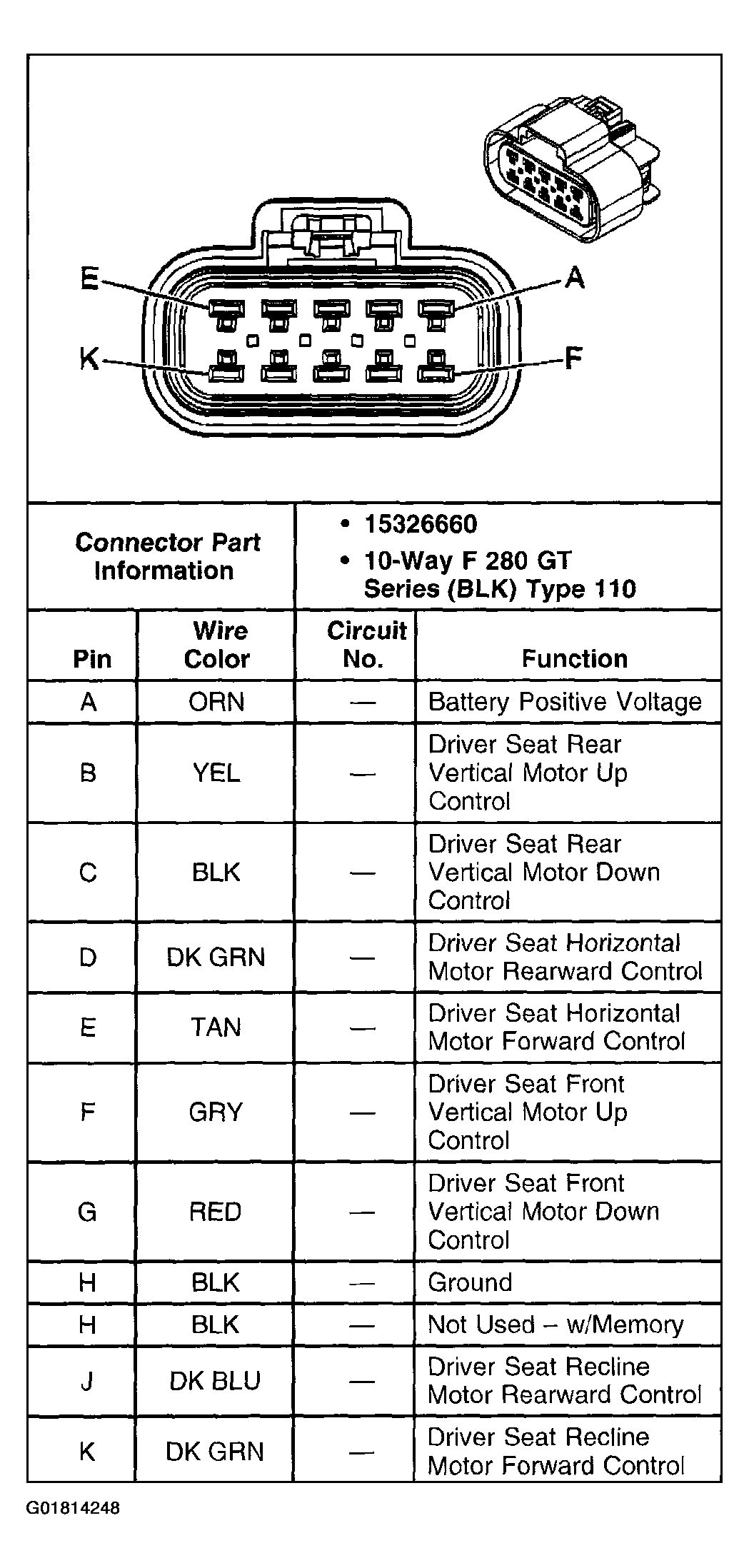

Fig 7: Motor Assembly - Driver Side

Courtesy of GENERAL MOTORS CORP.

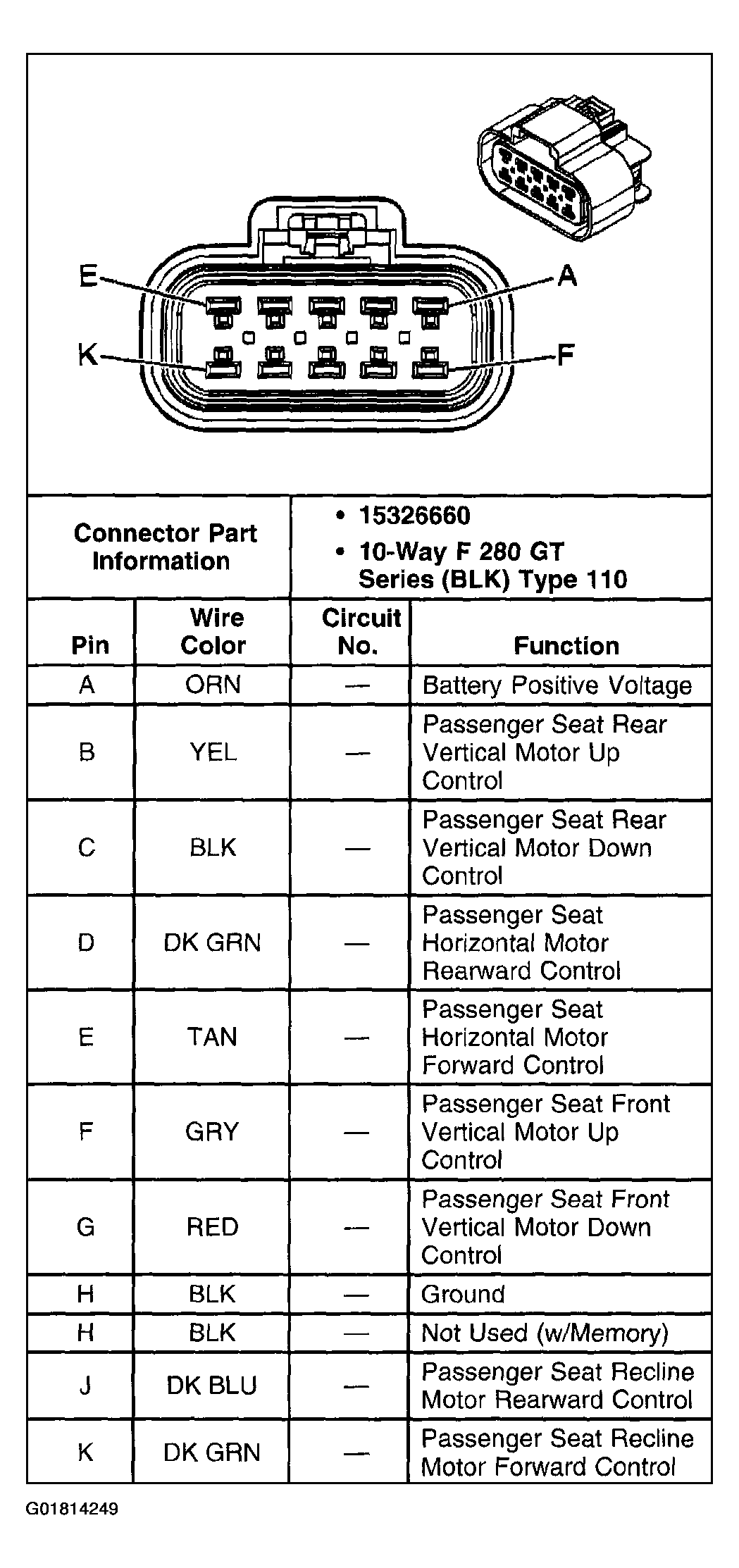

Fig 8: Motor Assembly - Passenger Side

Courtesy of GENERAL MOTORS CORP.

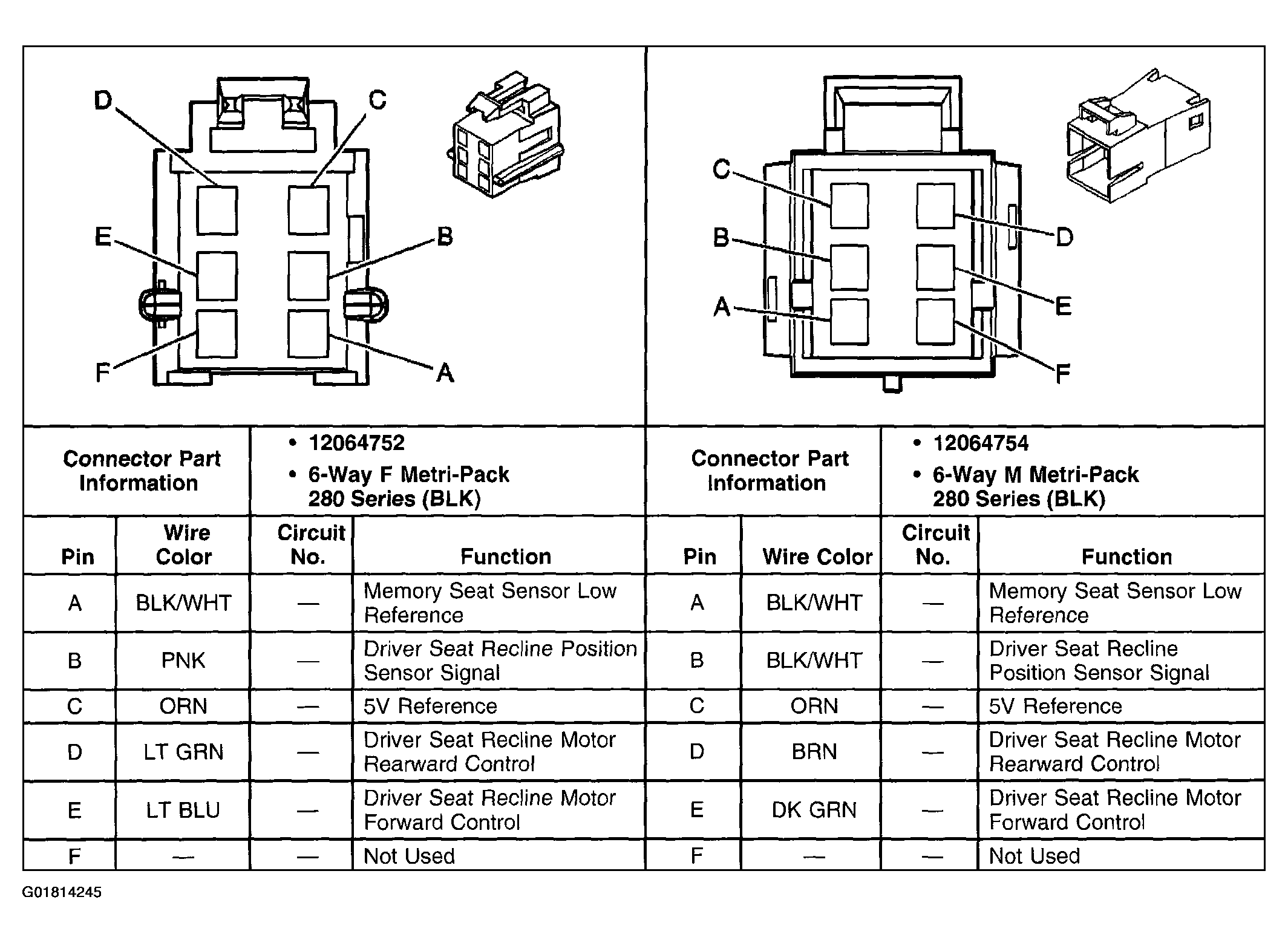

Fig 9: Recline Motor And Position Sensor - Driver Side - w/Memory

Courtesy of GENERAL MOTORS CORP.

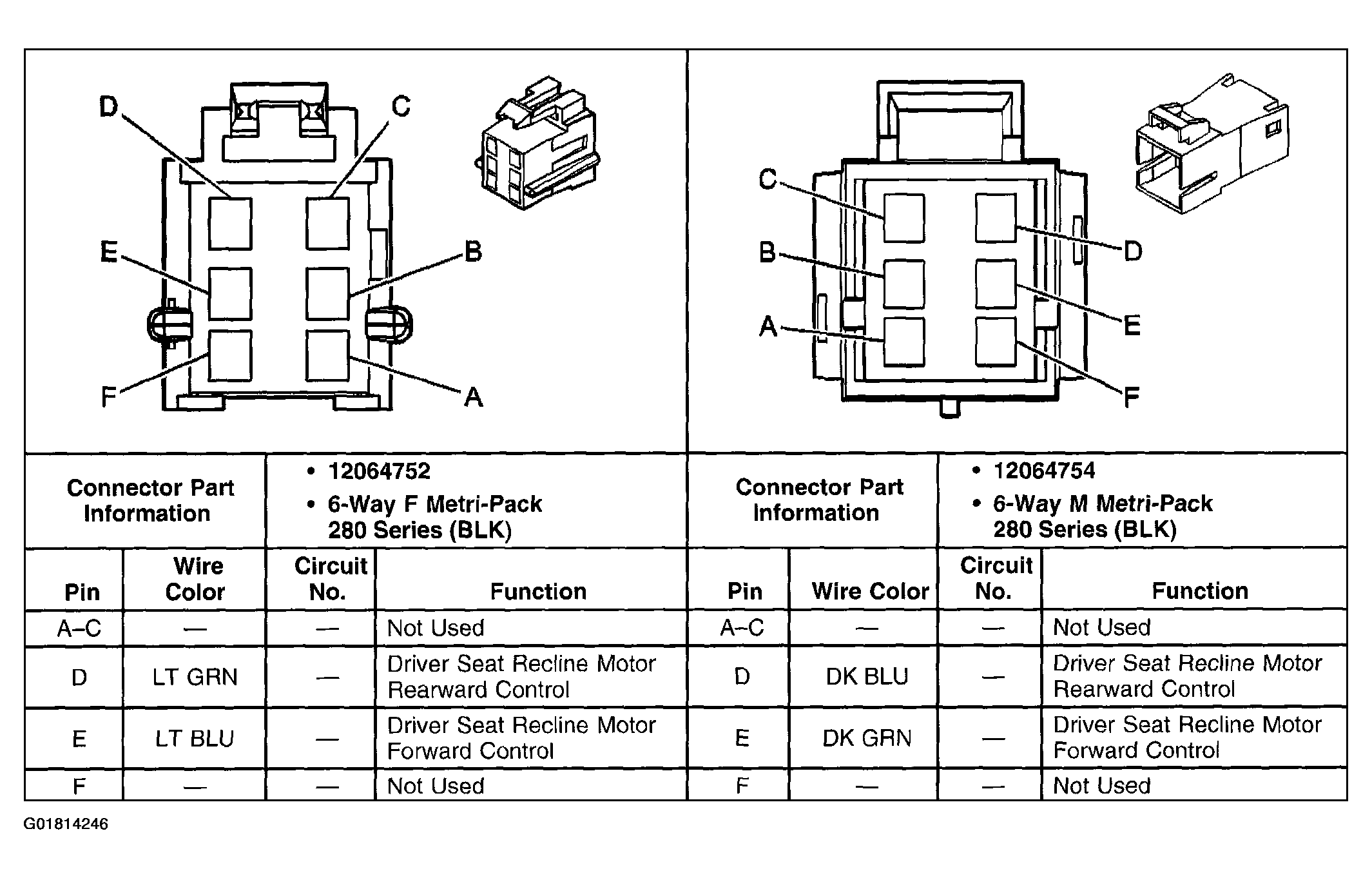

Fig 10: Recline Motor - Driver Side - w/o Memory

Courtesy of GENERAL MOTORS CORP.

Fig 11: Recline Motor - Passenger Side

Courtesy of GENERAL MOTORS CORP.

Fig 12: Seat Adjuster Switch - Driver

Courtesy of GENERAL MOTORS CORP.

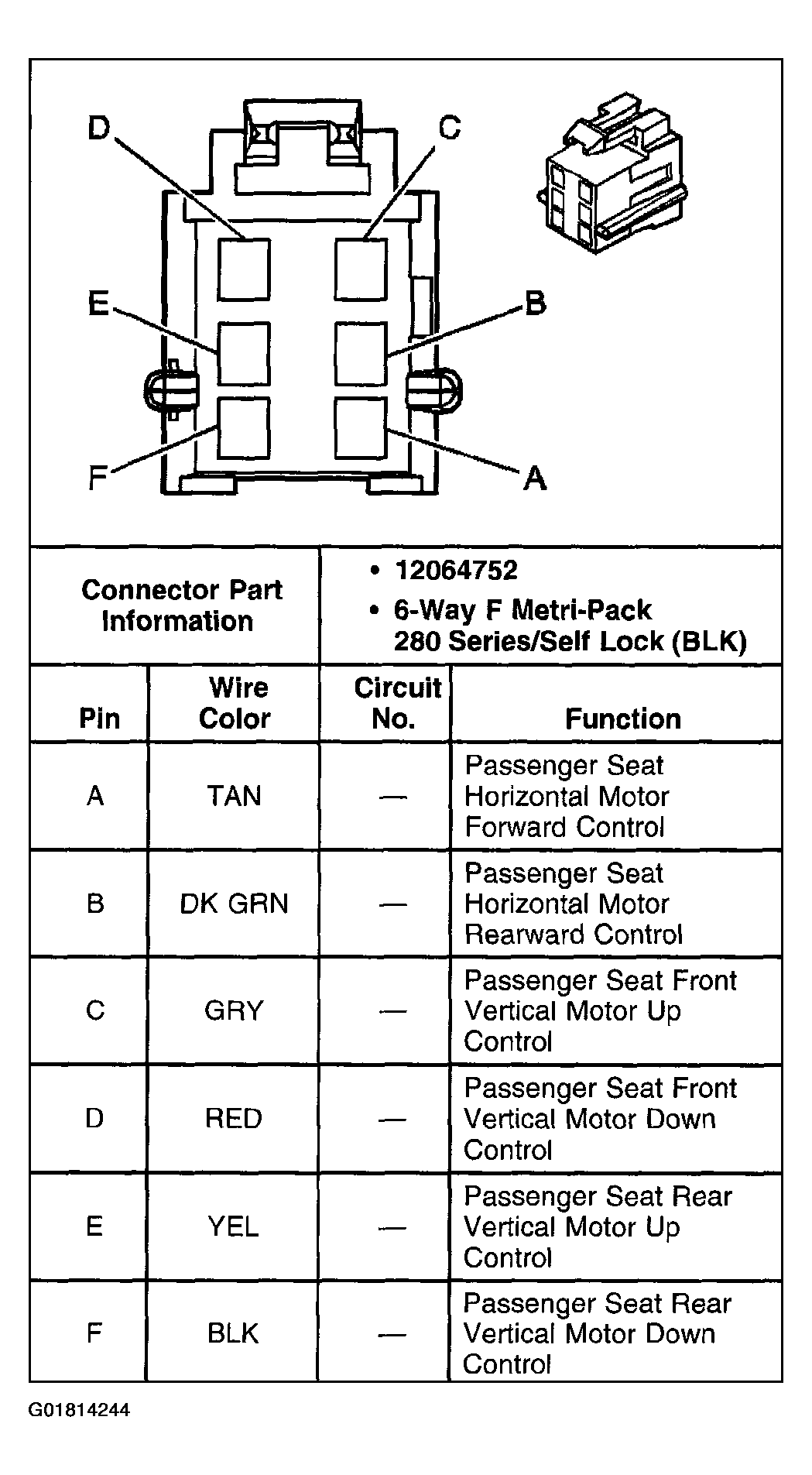

Fig 13: Seat Adjuster Switch - Passenger Side

Courtesy of GENERAL MOTORS CORP.
