Removal Procedure

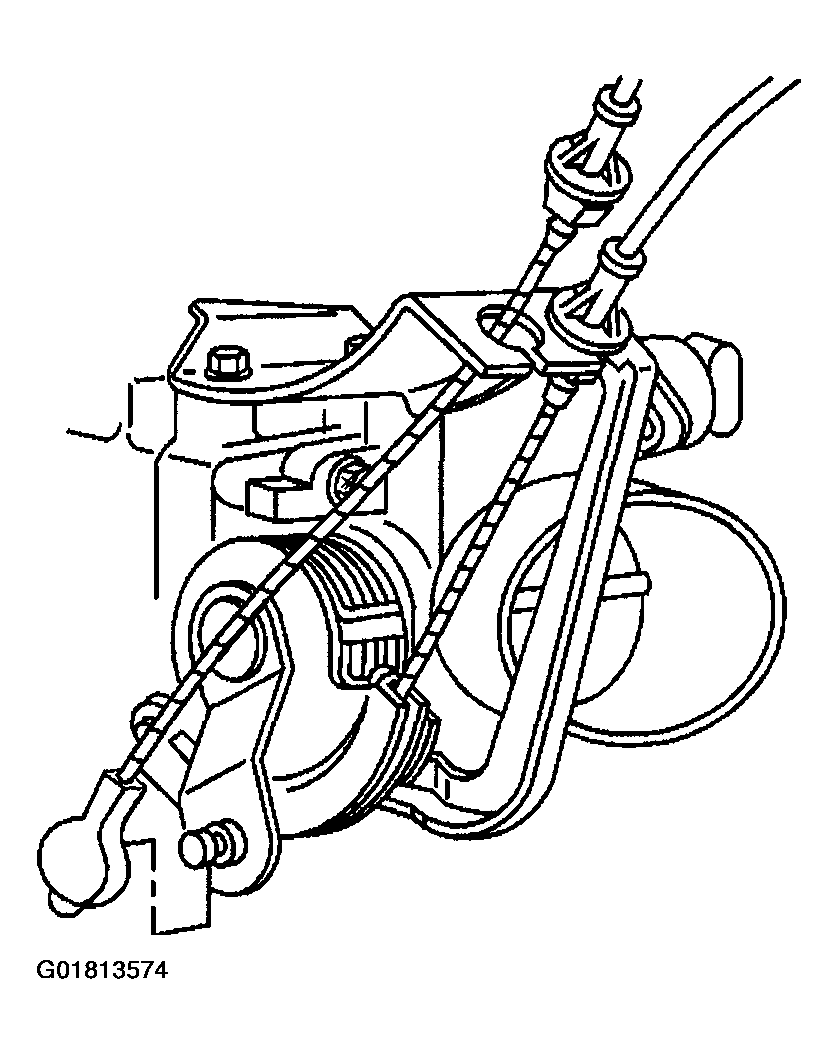

Fig 1: Removing Cable From Throttle Lever & Accelerator Control Cable Bracket
G01813574Courtesy of GENERAL MOTORS CORP.
  1. Remove the cable from the throttle lever and accelerator control cable bracket.
  2. Rotate the cable counter clockwise at the module in order to remove the cable from the module.
  3. Remove the cable from the module band.
    Fig 2: Removing Cable From Module Band
    G01813575Courtesy of GENERAL MOTORS CORP.
