Installation Procedure

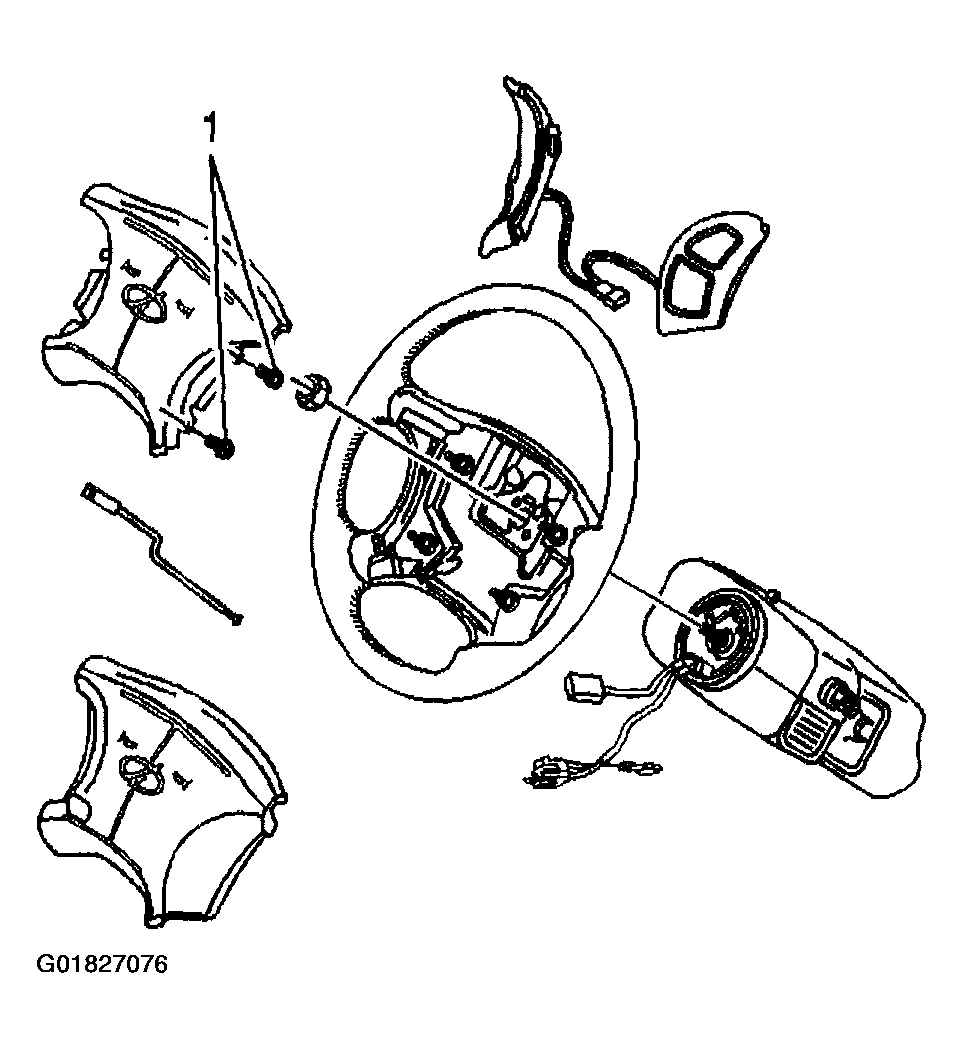

    Fig 1: Steering Wheel Control Switch Assembly (Oldsmobile)
    G01827076Courtesy of GENERAL MOTORS CORP.
  1. Install the switches and the harness to the inflatable restraint steering wheel module.
  2. Install the wire harness connector to the retainer on the inflatable restraint steering wheel module.
  3. Route the steering wheel controls harness on the inflatable restraint steering wheel module and if necessary, re-connect the horn switch ground connector to the ground bracket.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the screws (1).

    Tighten

    Tighten the retaining screws to 2 N.m (18 lb in).

  5. Install the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
