Side Impact Module Connector End View - Right

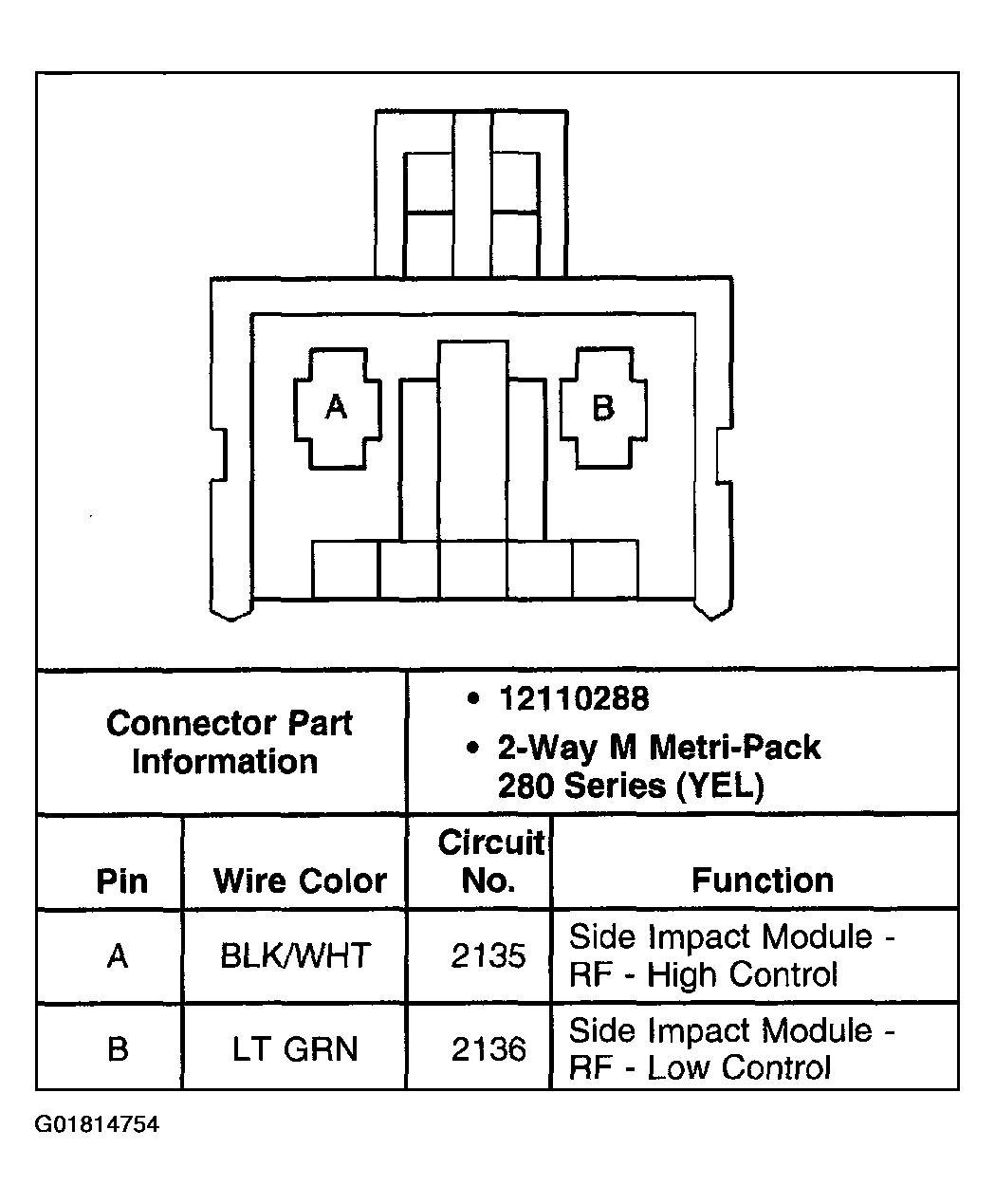

Fig 1: Side Impact Module - Right

G01814754

Courtesy of GENERAL MOTORS CORP.
