Side Impact Module Connector End View - Left

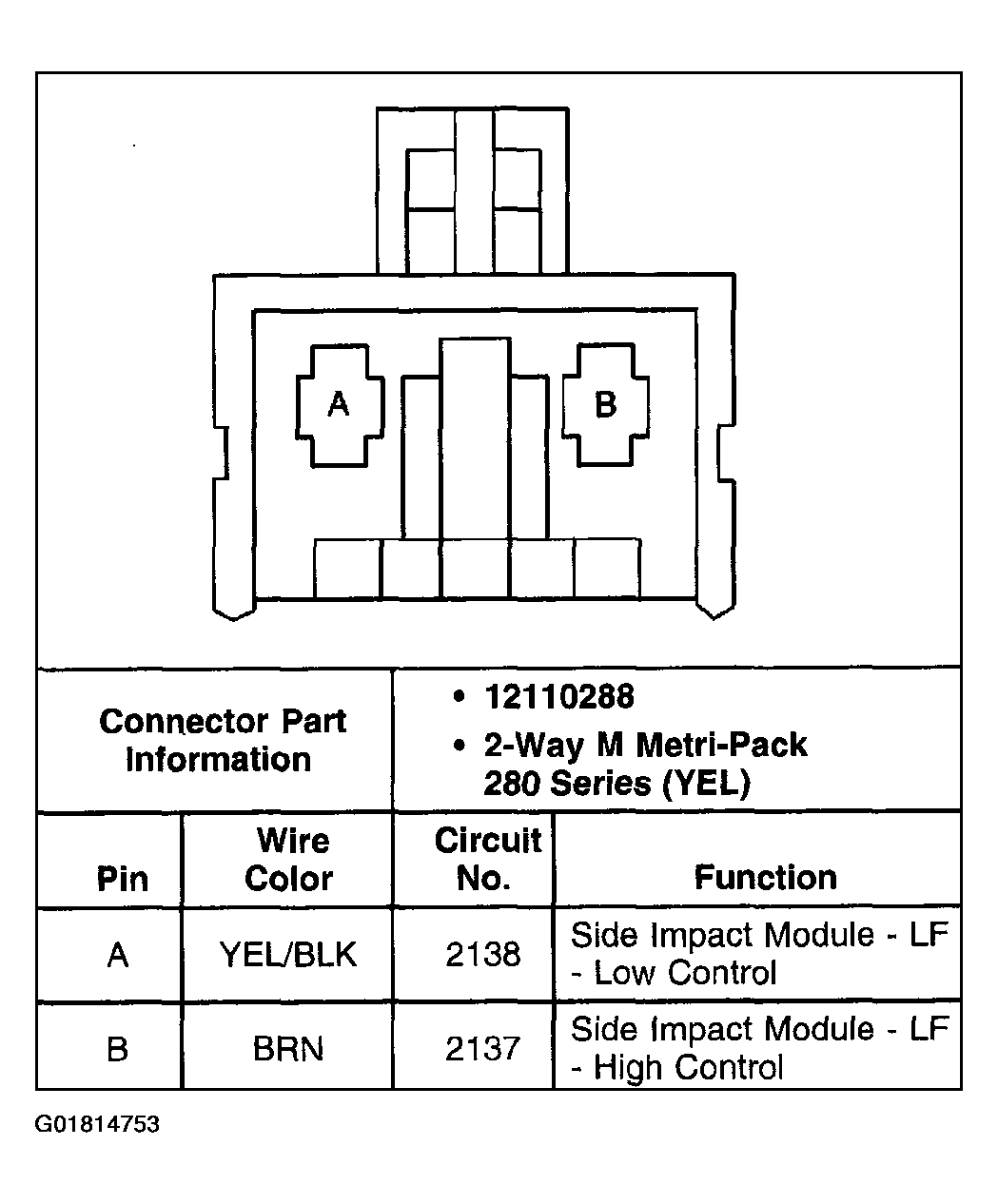

Fig 1: Side Impact Module - Left

G01814753

Courtesy of GENERAL MOTORS CORP.
