OnStar® Button Assembly Connector End View

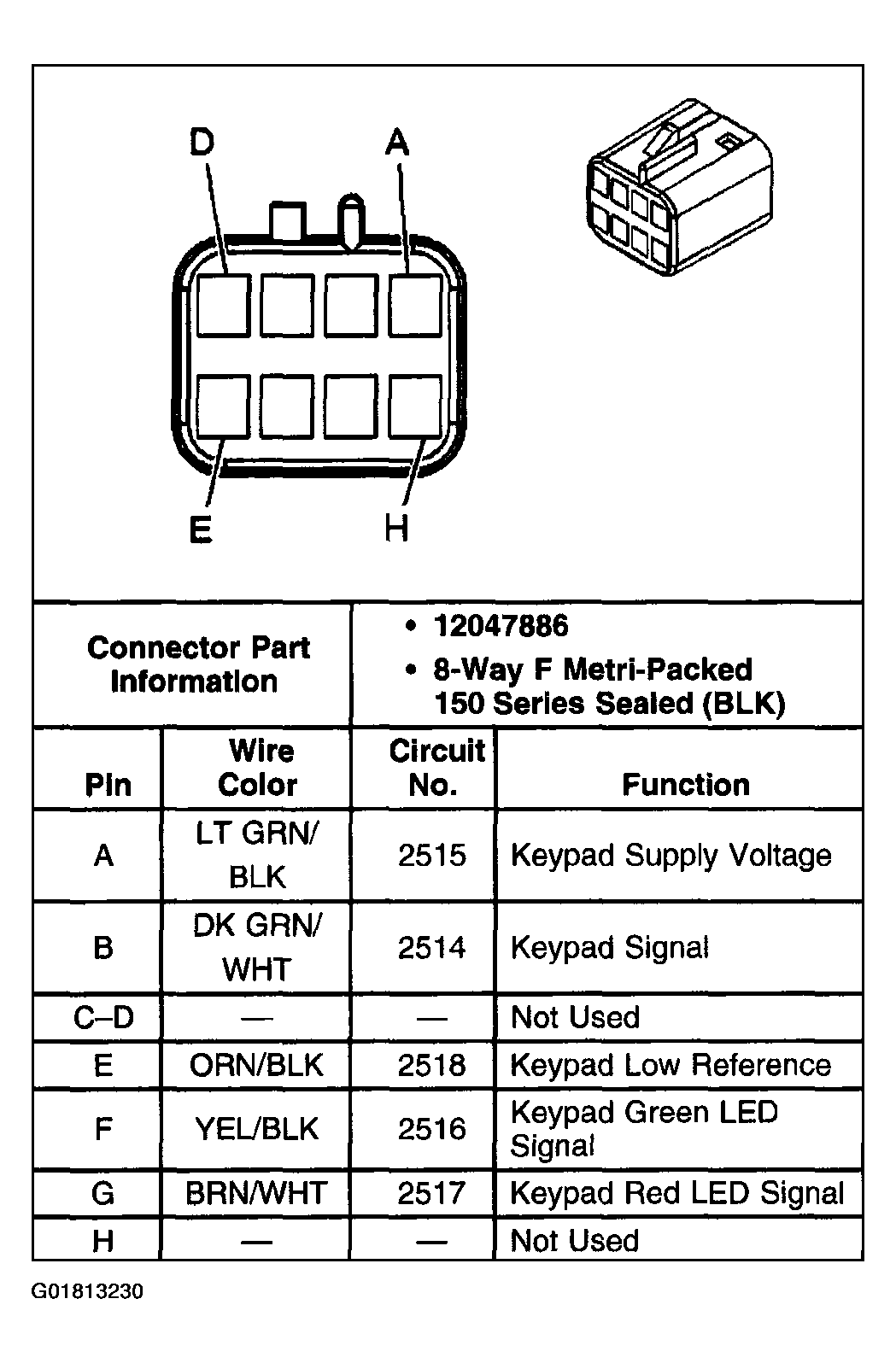

Fig 1: OnStar® Button Assembly

G01813230

Courtesy of GENERAL MOTORS CORP.
