Motor Assembly Connector End View - Driver Side

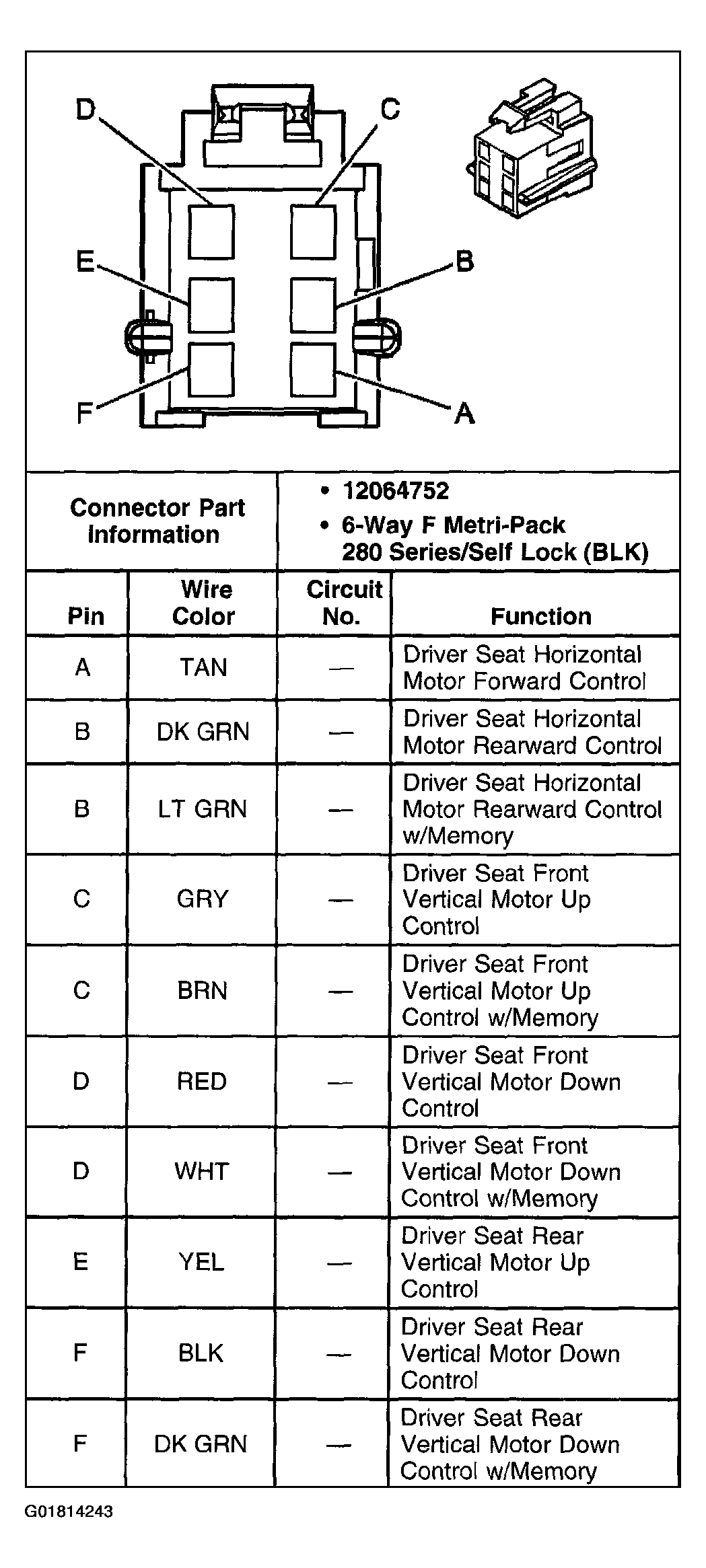

Fig 1: Motor Assembly - Driver Side

G01814243

Courtesy of GENERAL MOTORS CORP.
