Inflatable Restraint Steering Wheel Module Connector End View

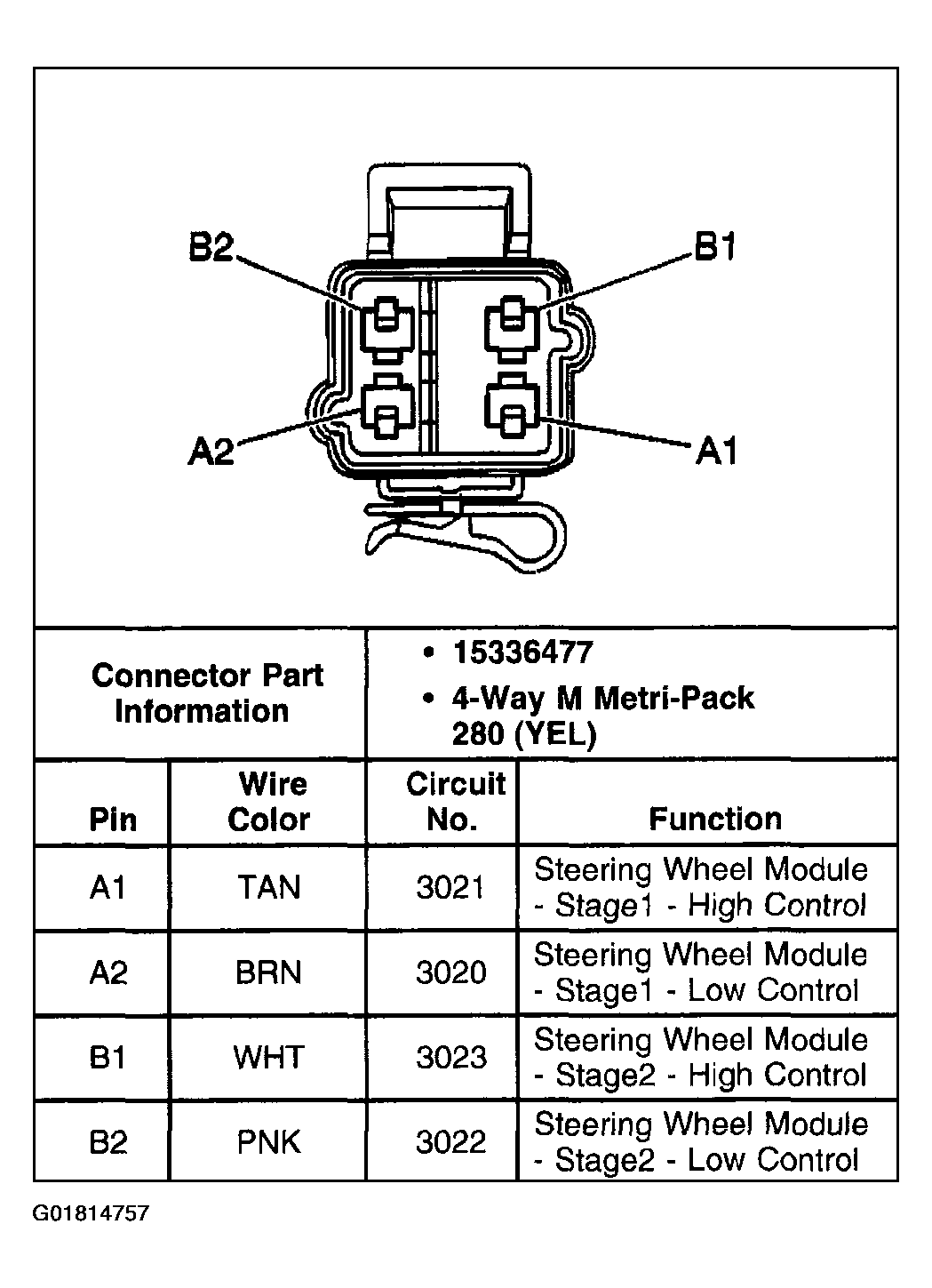

Fig 1: Inflatable Restraint Steering Wheel Module

G01814757

Courtesy of GENERAL MOTORS CORP.
