HVAC Control Module Connector End View C1

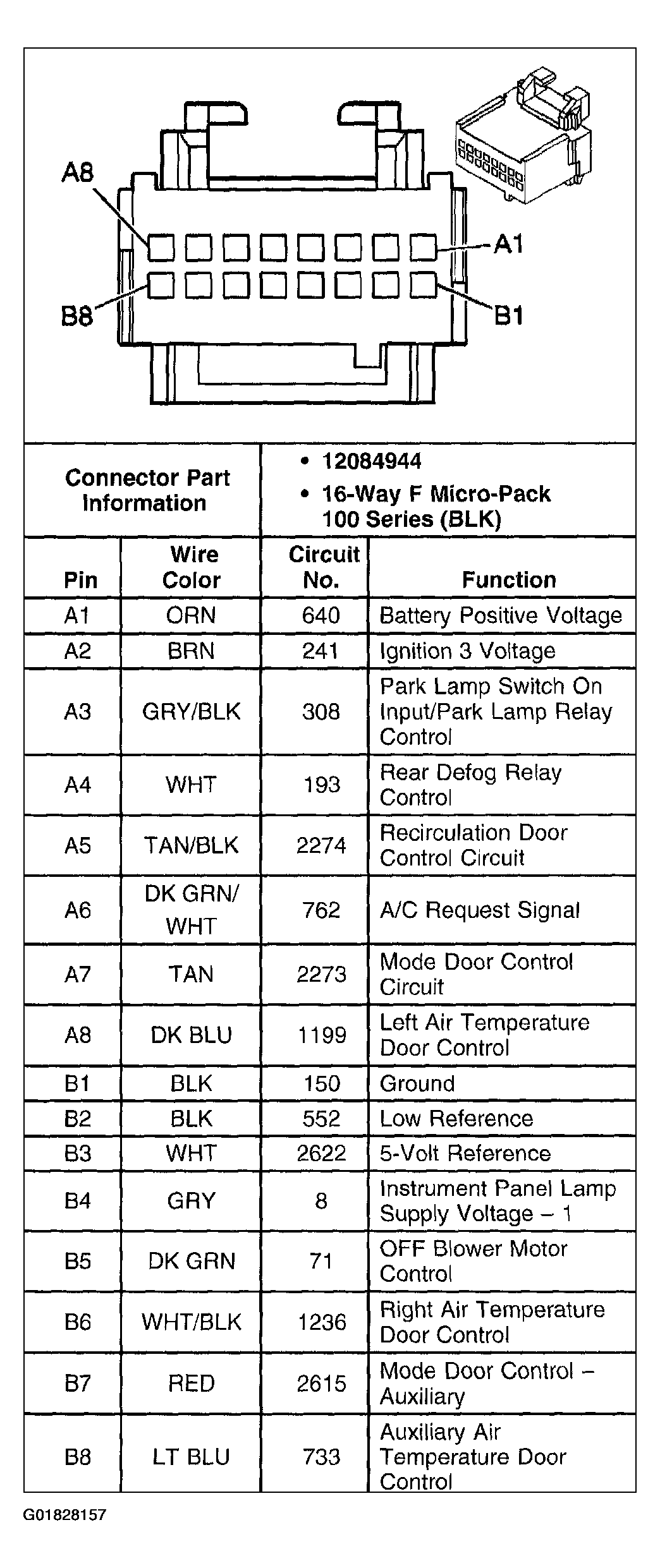

Fig 1: HVAC Control Module C1

G01828157

Courtesy of GENERAL MOTORS CORP.
