HVAC Control Module Connector End View - Auxiliary C2

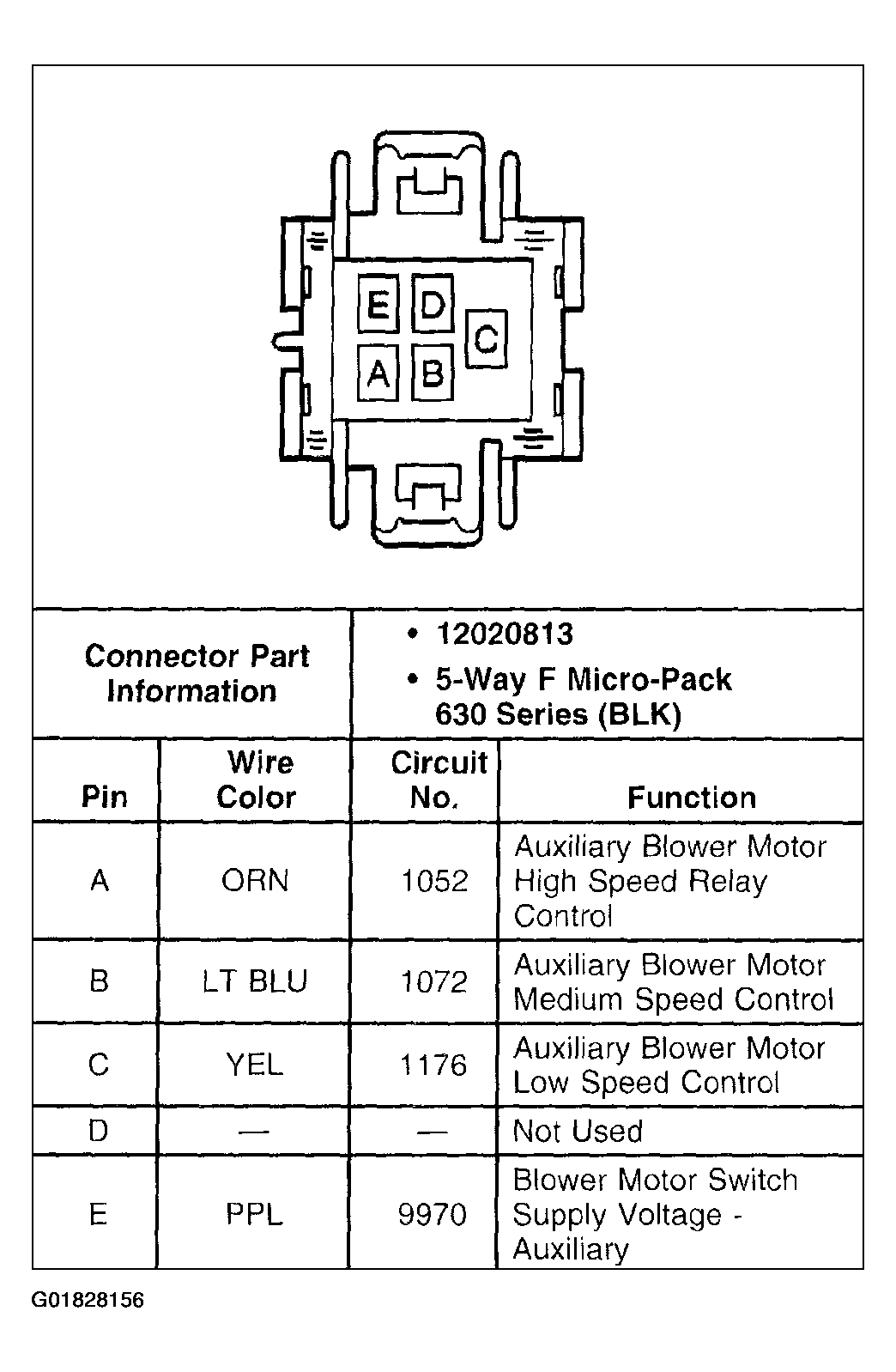

Fig 1: HVAC Control Module - Auxiliary C2

G01828156

Courtesy of GENERAL MOTORS CORP.
