Daytime Running Lamps (DRL) Control Module Connector End View C1

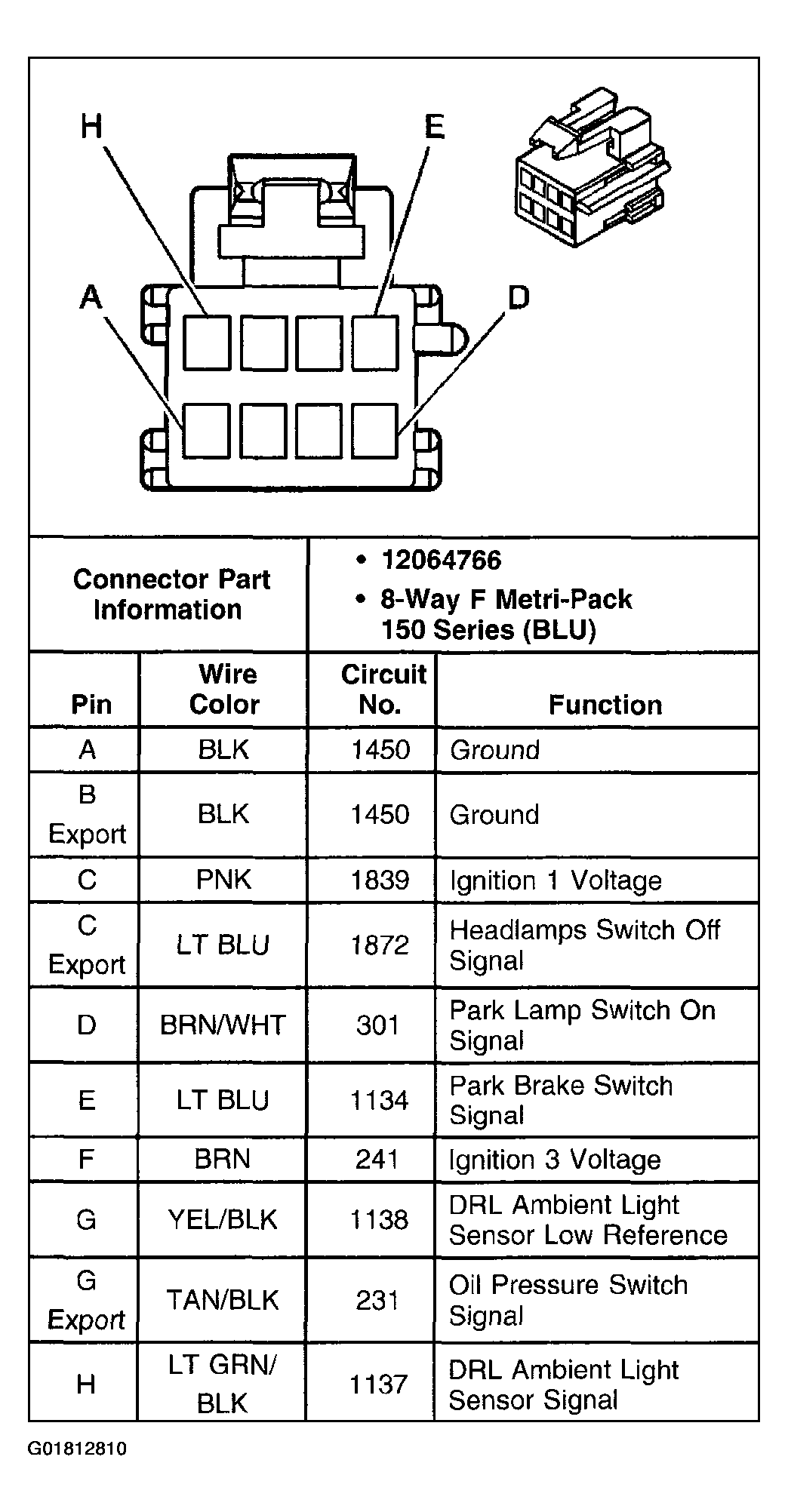

Fig 1: Daytime Running Lamps (DRL) Control Module C1

G01812810

Courtesy of GENERAL MOTORS CORP.
