Memory Seat Module Connector End View C4

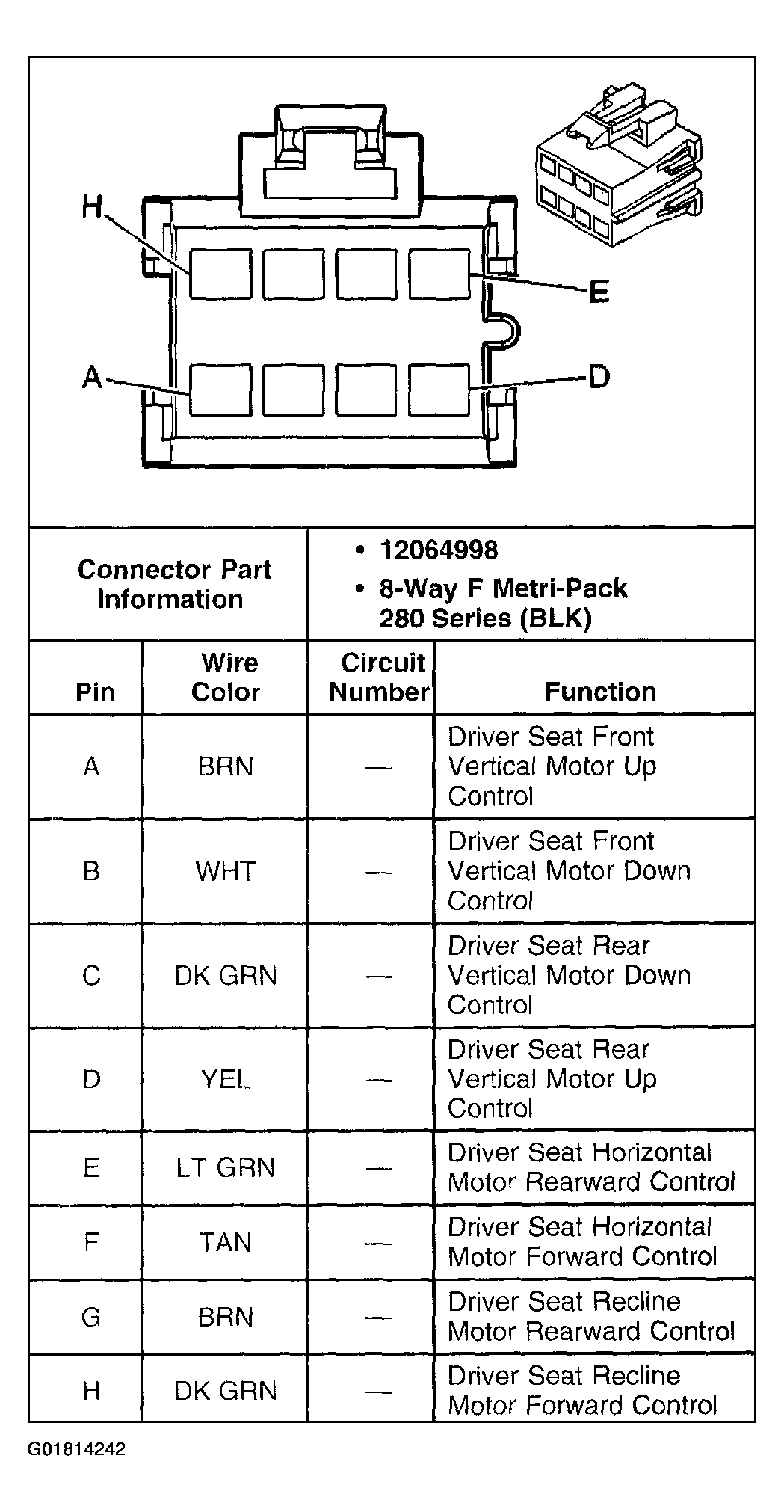

Fig 1: Memory Seat Module C4

G01814242

Courtesy of GENERAL MOTORS CORP.
