Memory Seat Module Connector End View C3

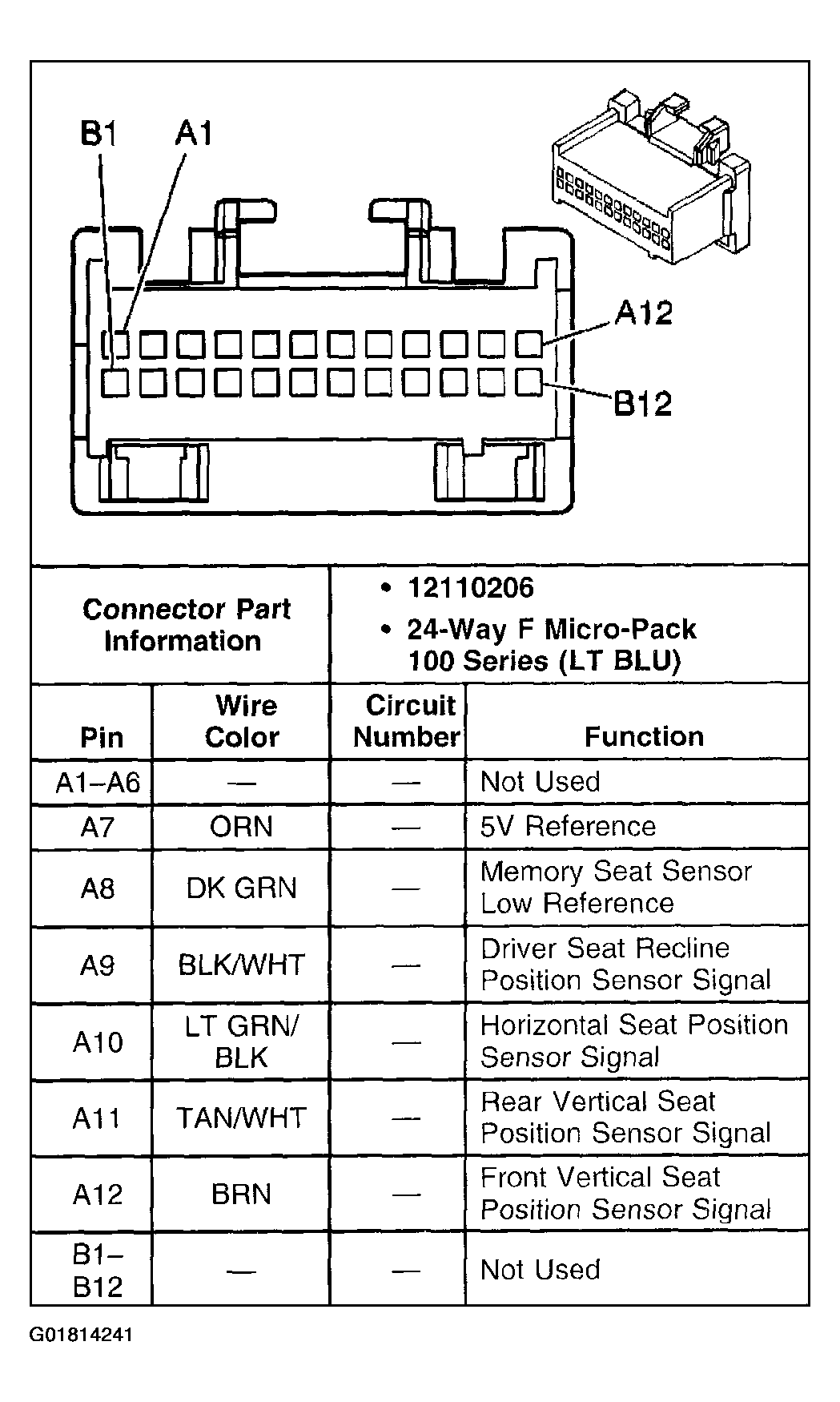

Fig 1: Memory Seat Module C3

G01814241

Courtesy of GENERAL MOTORS CORP.
