Wiper/Washer System Component Views

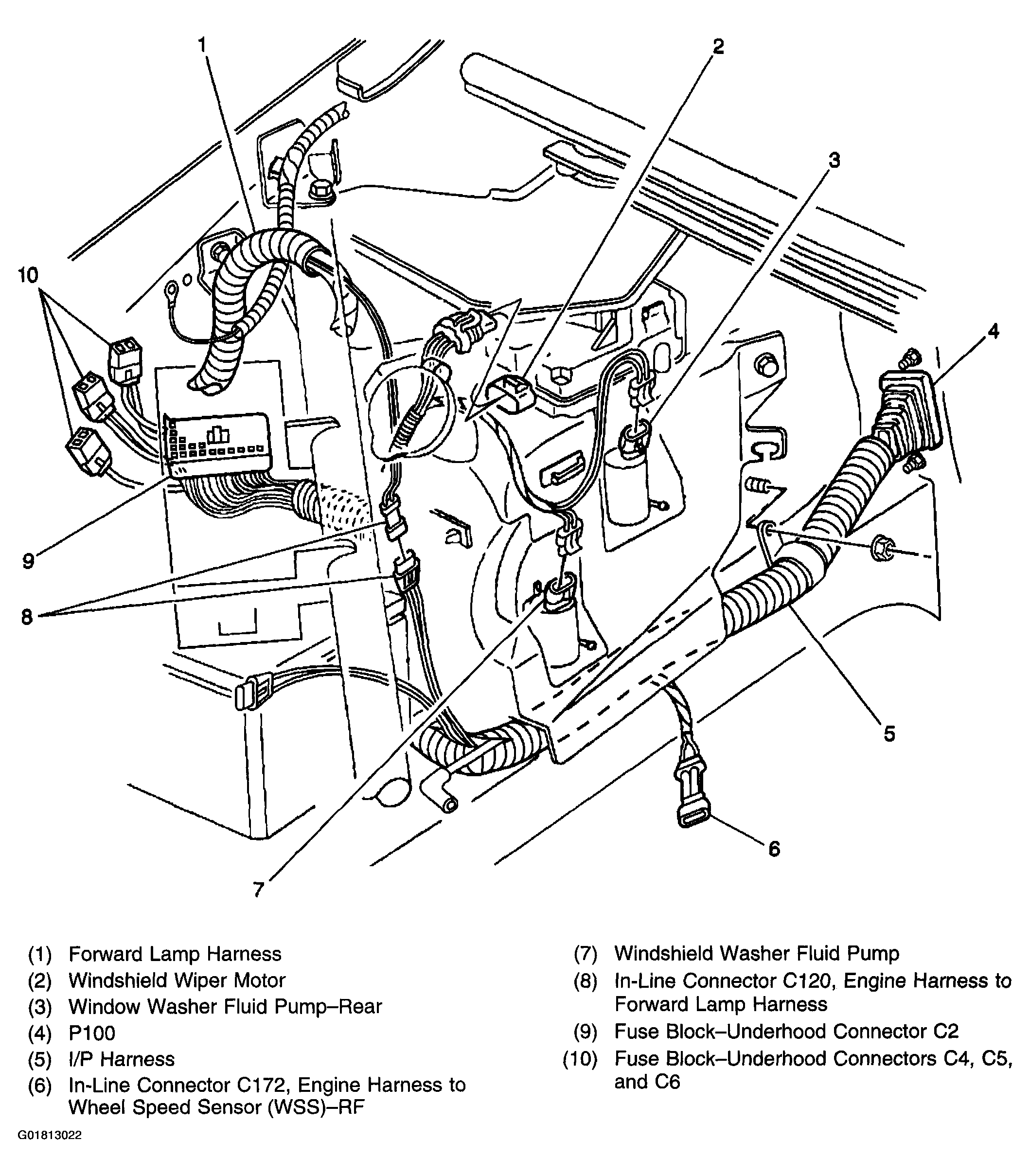

Fig 1: Rear, Left Side Of Engine Compartment
G01813022Courtesy of GENERAL MOTORS CORP.

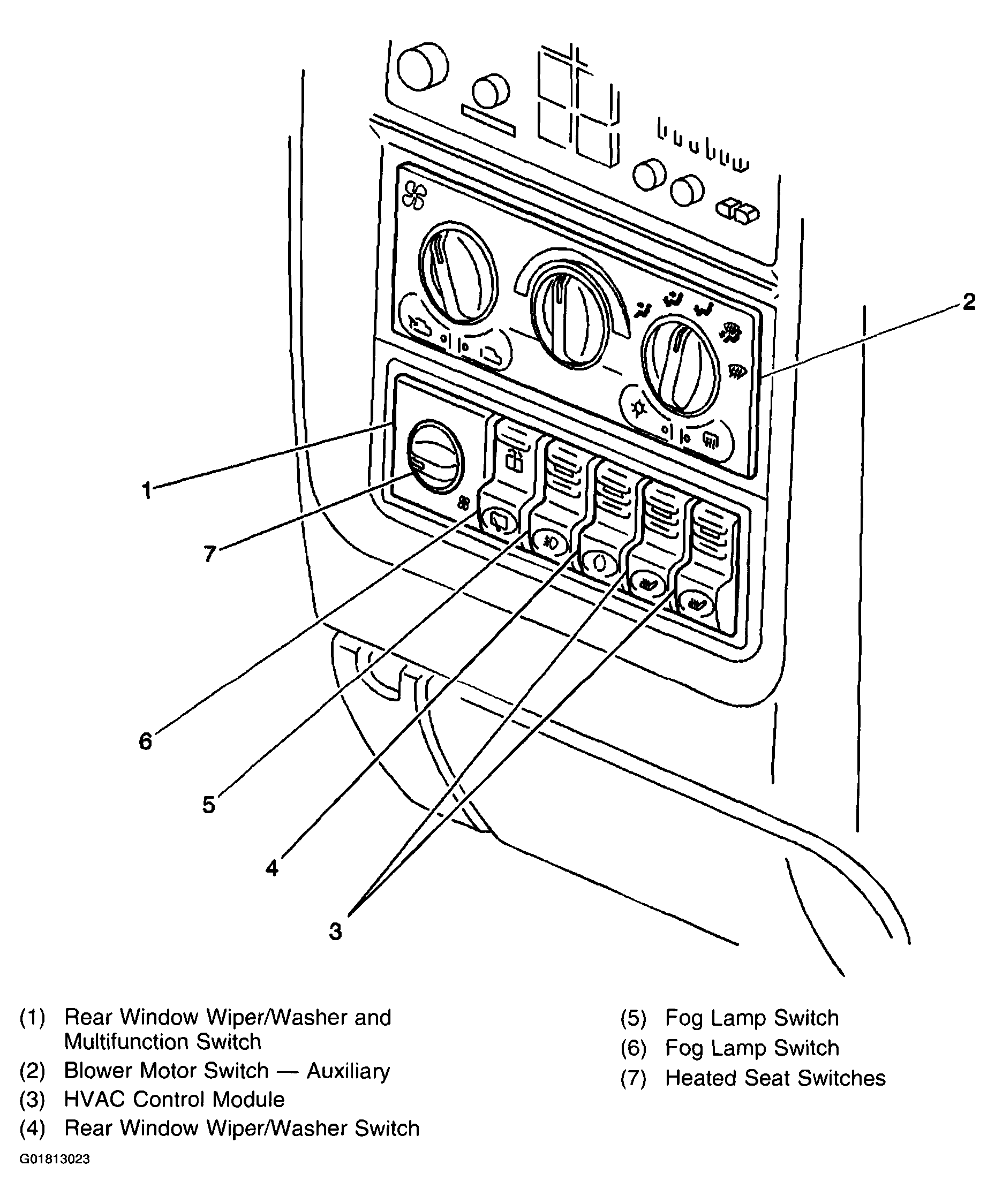

Fig 2: Center Of IP
G01813023Courtesy of GENERAL MOTORS CORP.

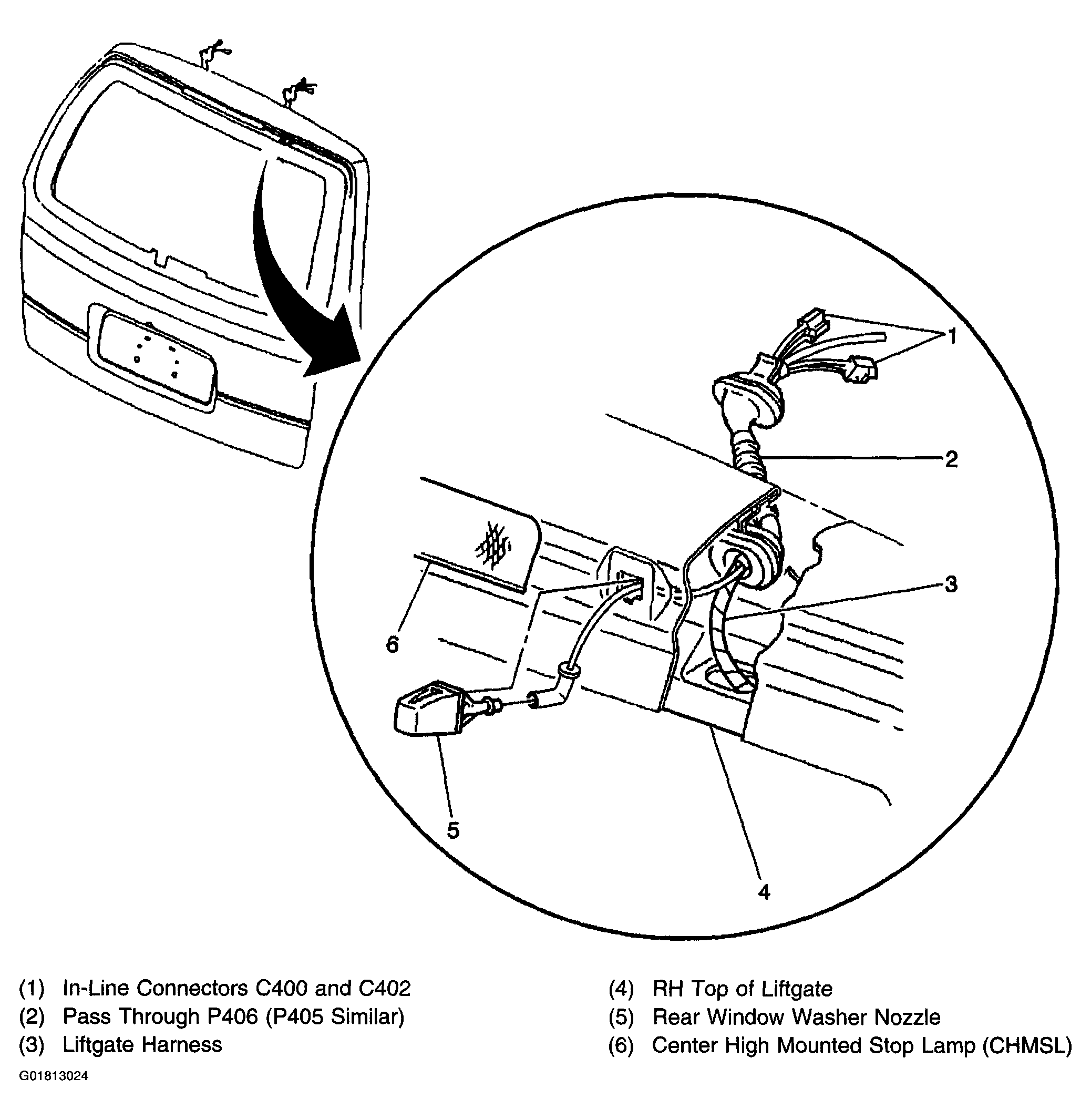

Fig 3: Top, RH Side Of Liftgate
G01813024Courtesy of GENERAL MOTORS CORP.
