Cellular Communication Component Views

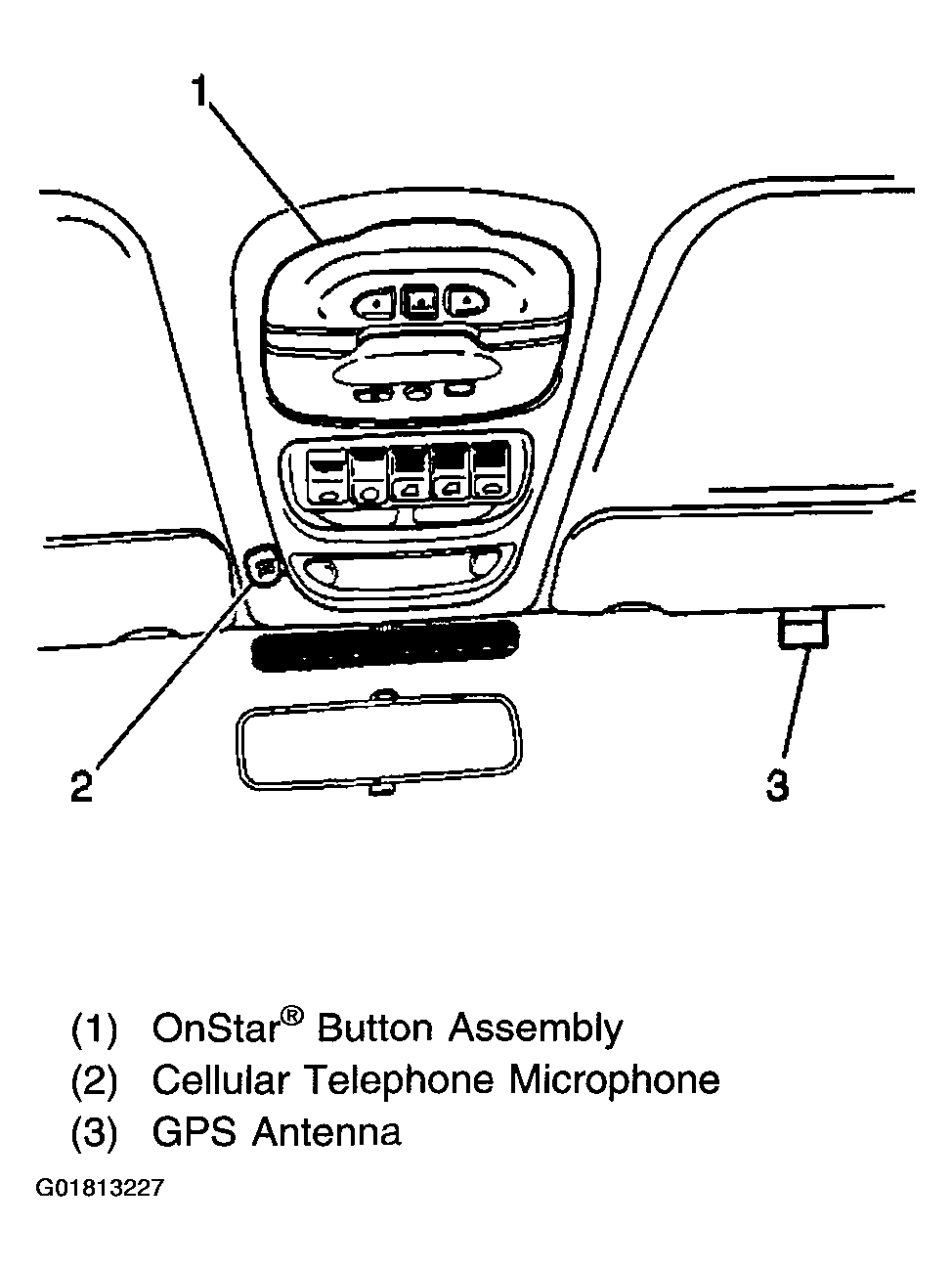

Fig 1: Front Center Of Roof In Overhead Console

G01813227

Courtesy of GENERAL MOTORS CORP.

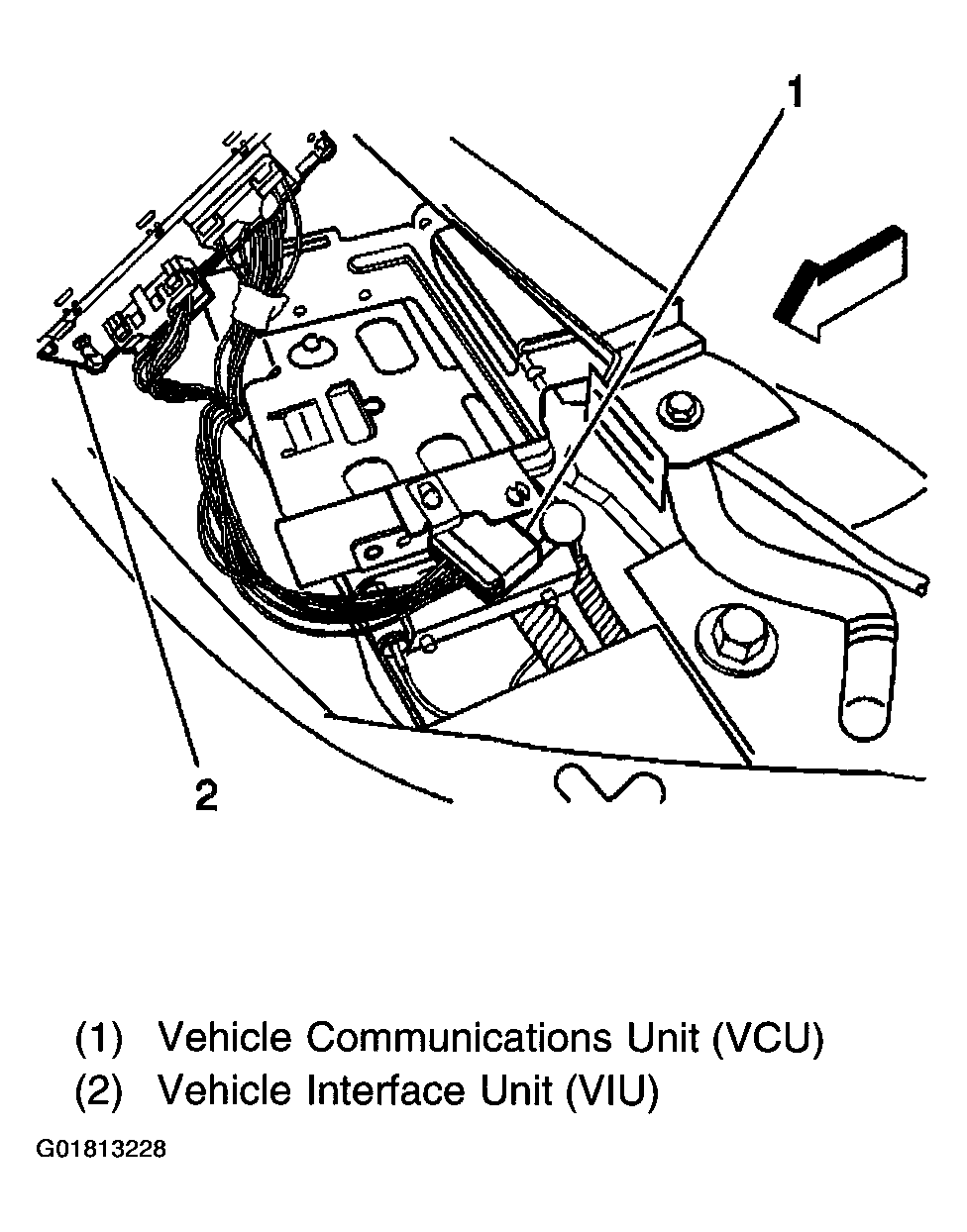

Fig 2: Under Driver Side Of The IP

G01813228

Courtesy of GENERAL MOTORS CORP.
