Lighting Systems Connector End Views: Notes

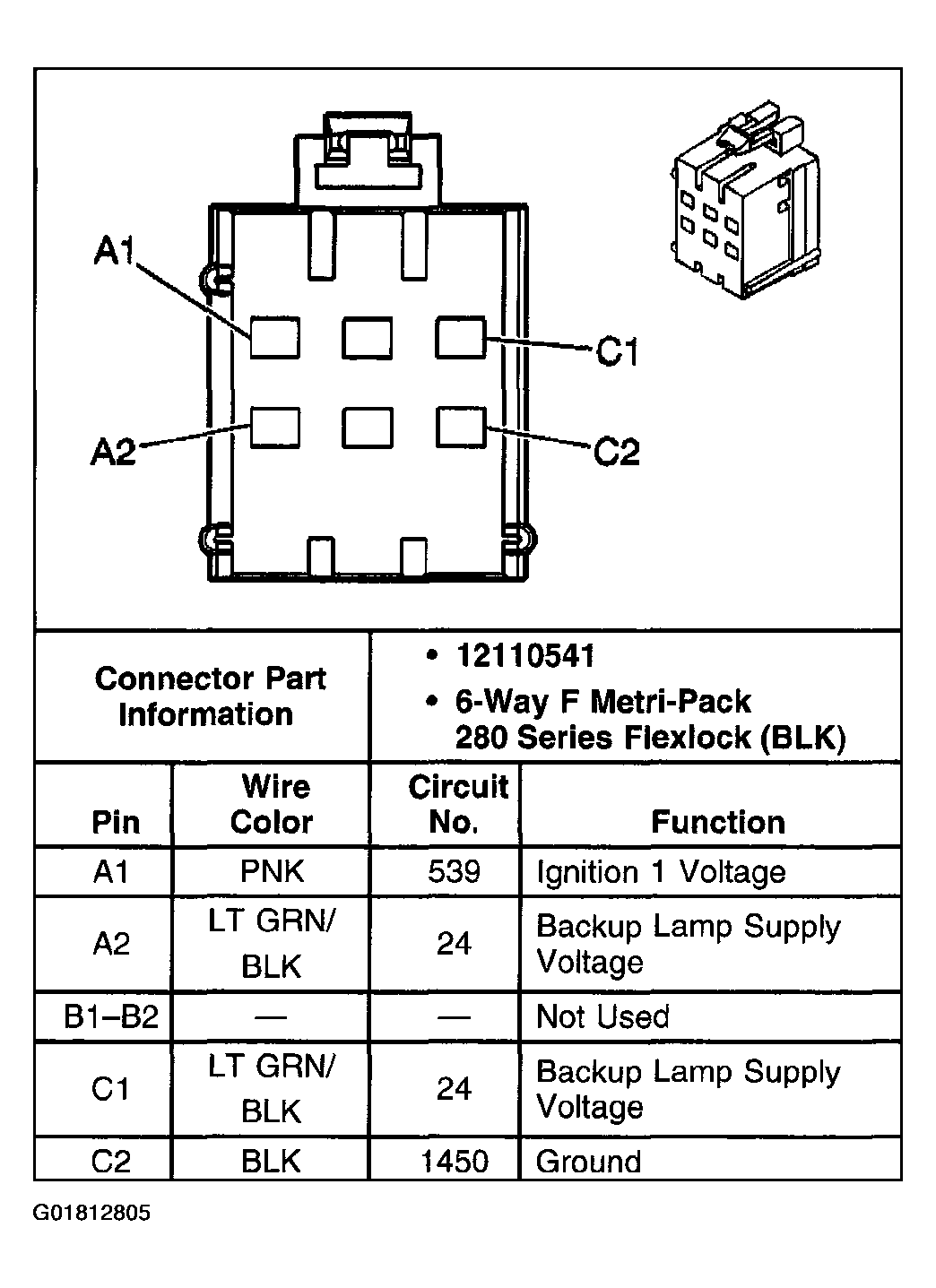

Fig 1: Backup Lamp Relay (Export)
G01812805Courtesy of GENERAL MOTORS CORP.

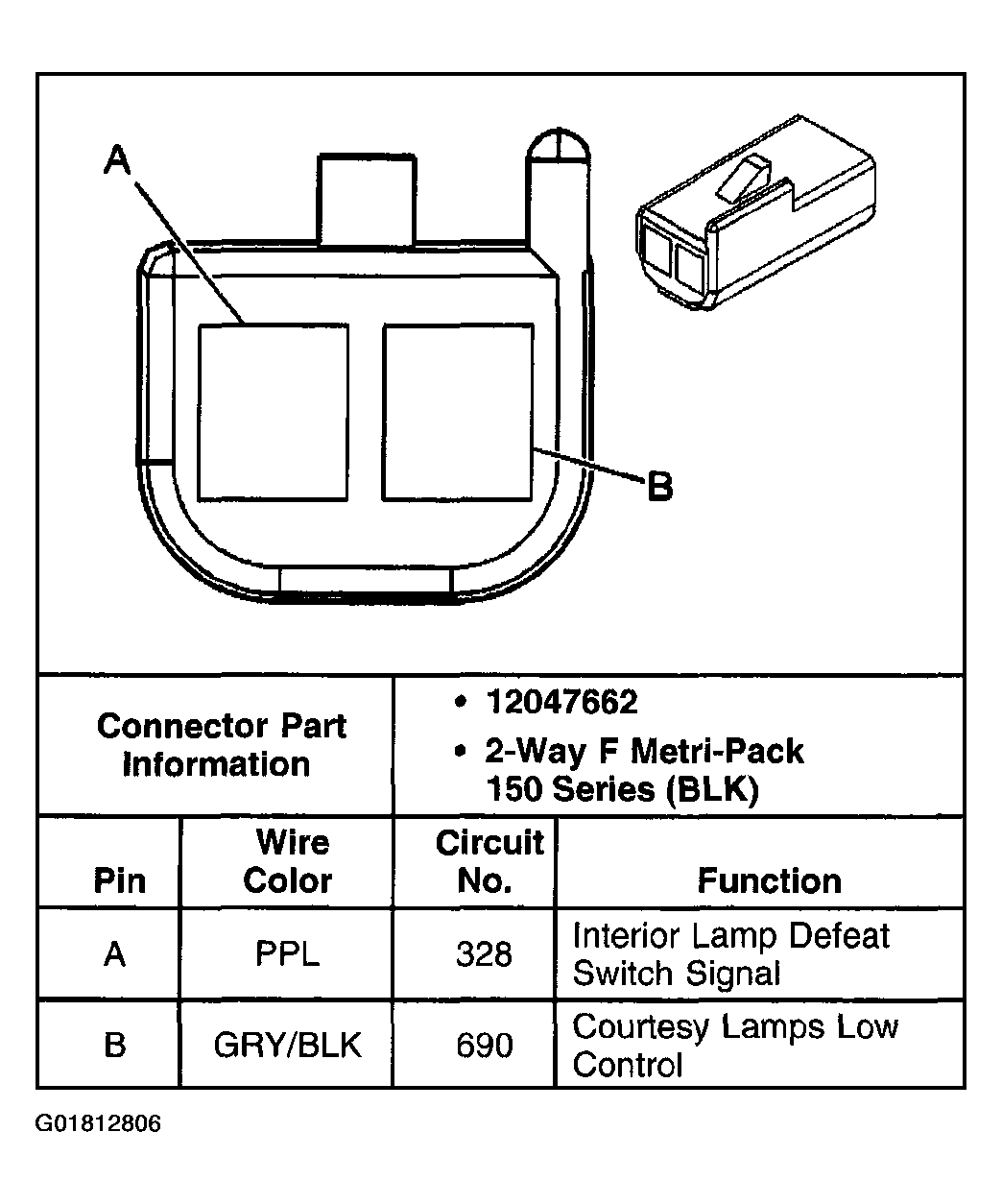

Fig 2: Cargo Lamp
G01812806Courtesy of GENERAL MOTORS CORP.

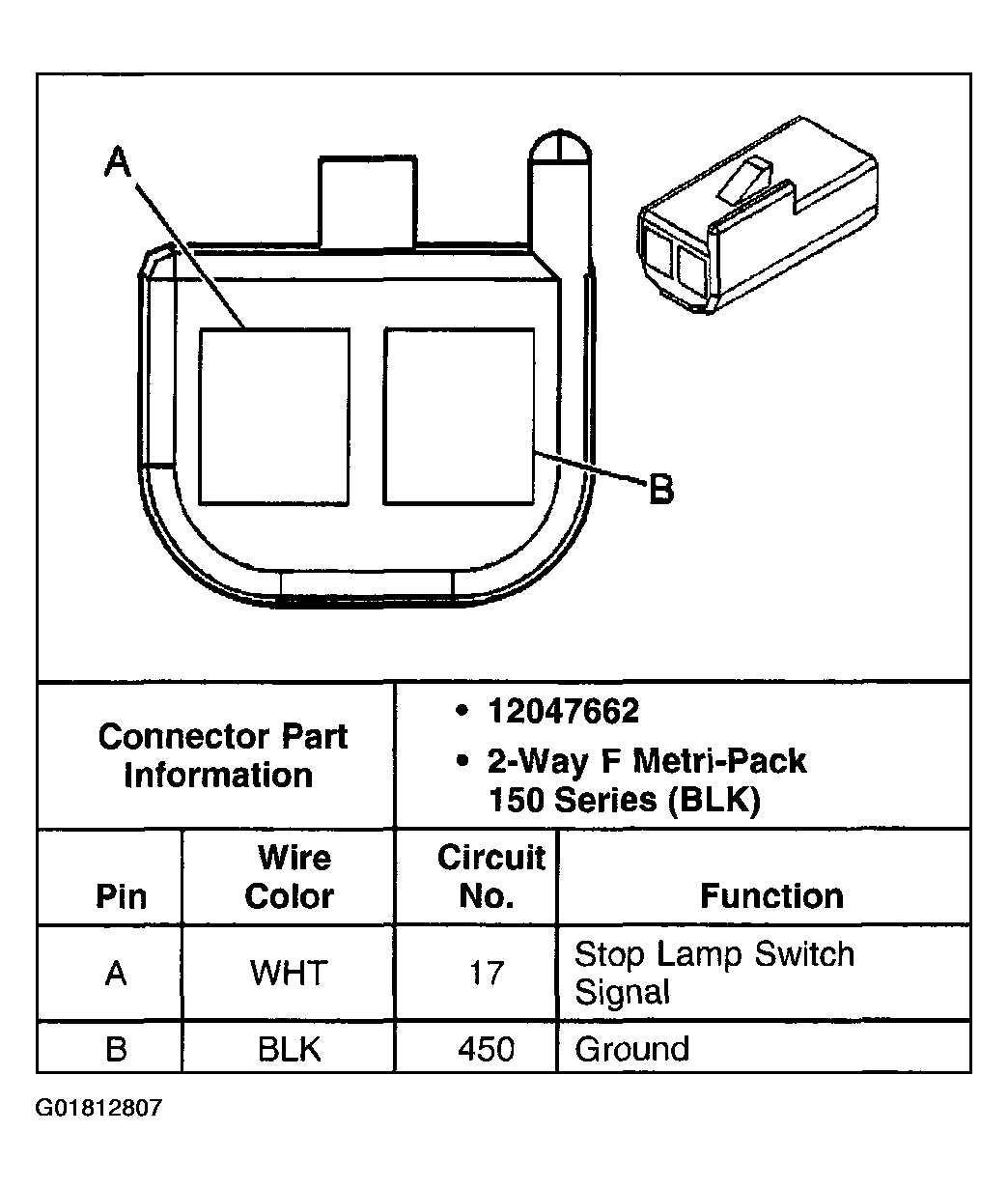

Fig 3: Center High Mounted Stop Lamp (CHMSL)
G01812807Courtesy of GENERAL MOTORS CORP.

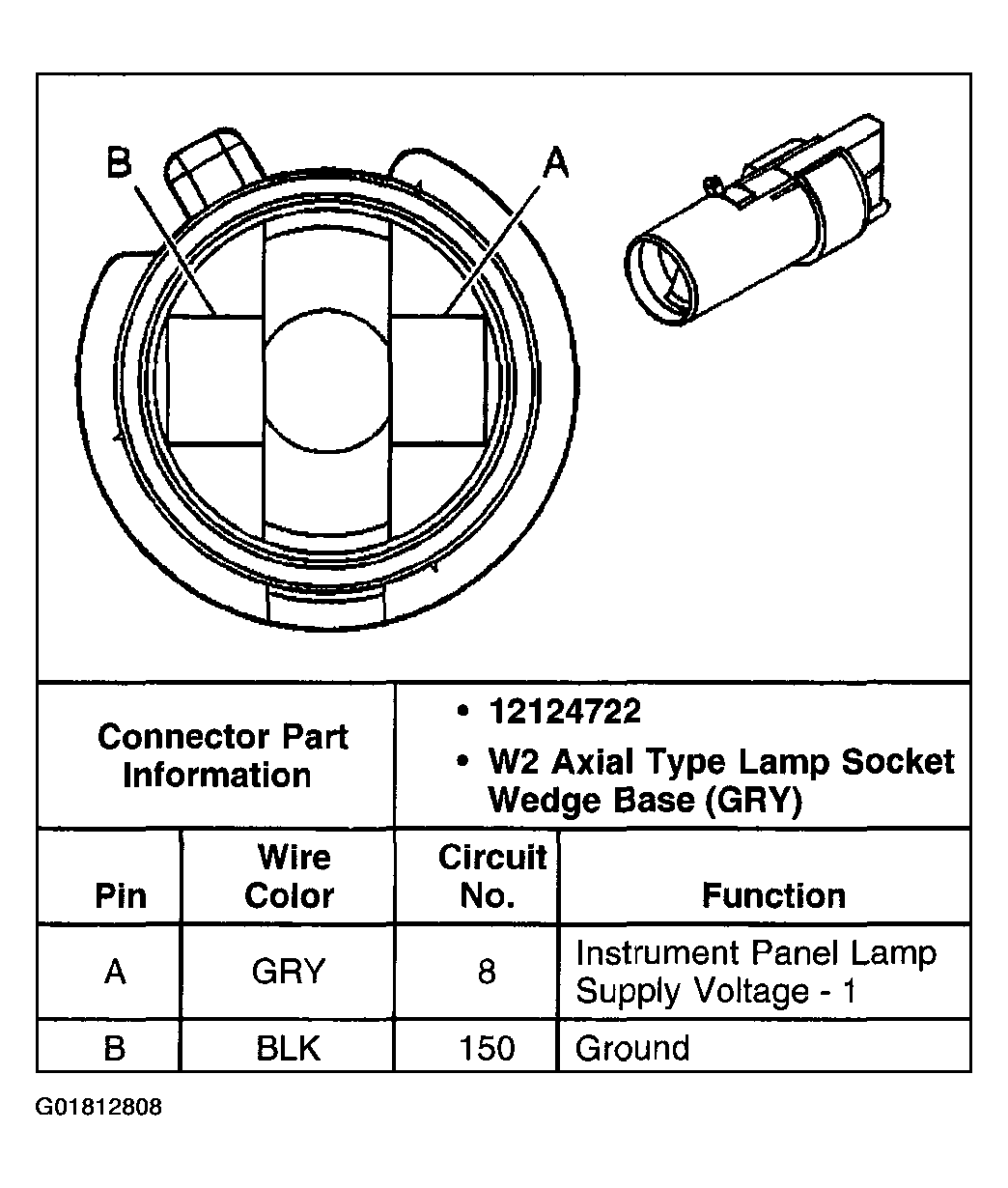

Fig 4: Cigar Lighter Lamp Connector
G01812808Courtesy of GENERAL MOTORS CORP.

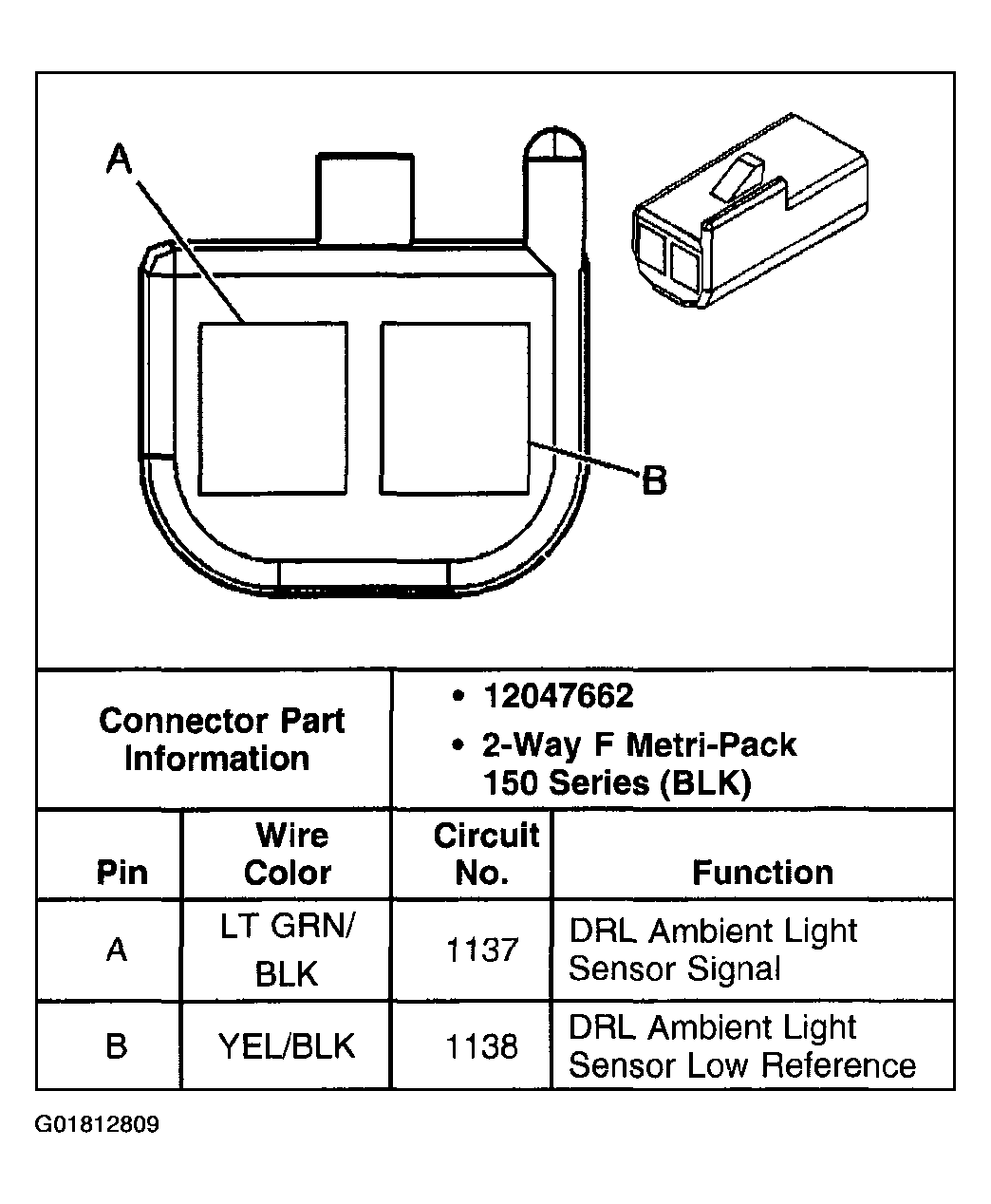

Fig 5: Daytime Running Lamps (DRL) Ambient Light Sensor
G01812809Courtesy of GENERAL MOTORS CORP.
Fig 6: Daytime Running Lamps (DRL) Control Module C1
G01812810Courtesy of GENERAL MOTORS CORP.
Fig 7: Daytime Running Lamps (DRL) Control Module C2
G01812811Courtesy of GENERAL MOTORS CORP.

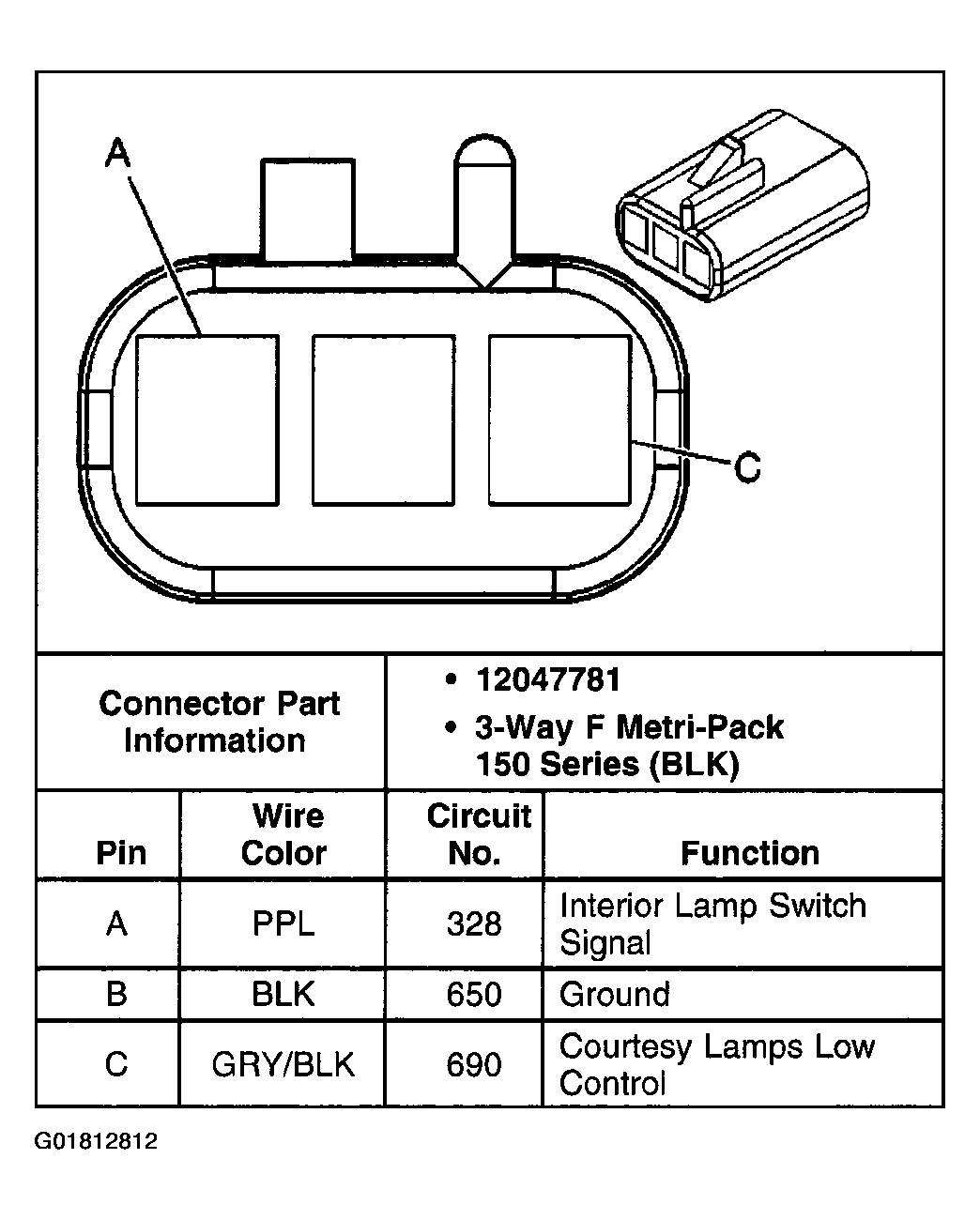

Fig 8: Dome Lamp
G01812812Courtesy of GENERAL MOTORS CORP.

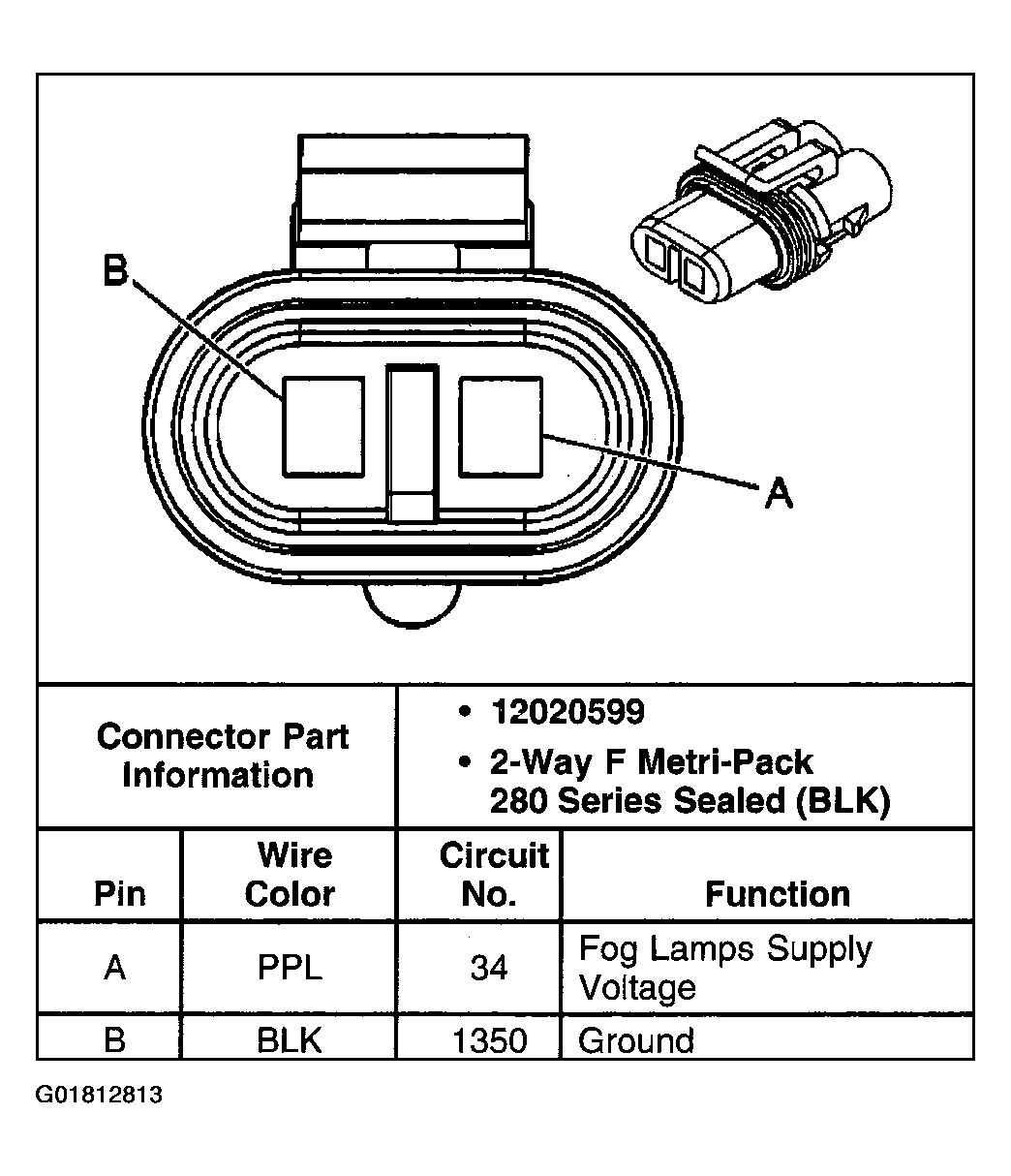

Fig 9: Fog Lamp-LF
G01812813Courtesy of GENERAL MOTORS CORP.

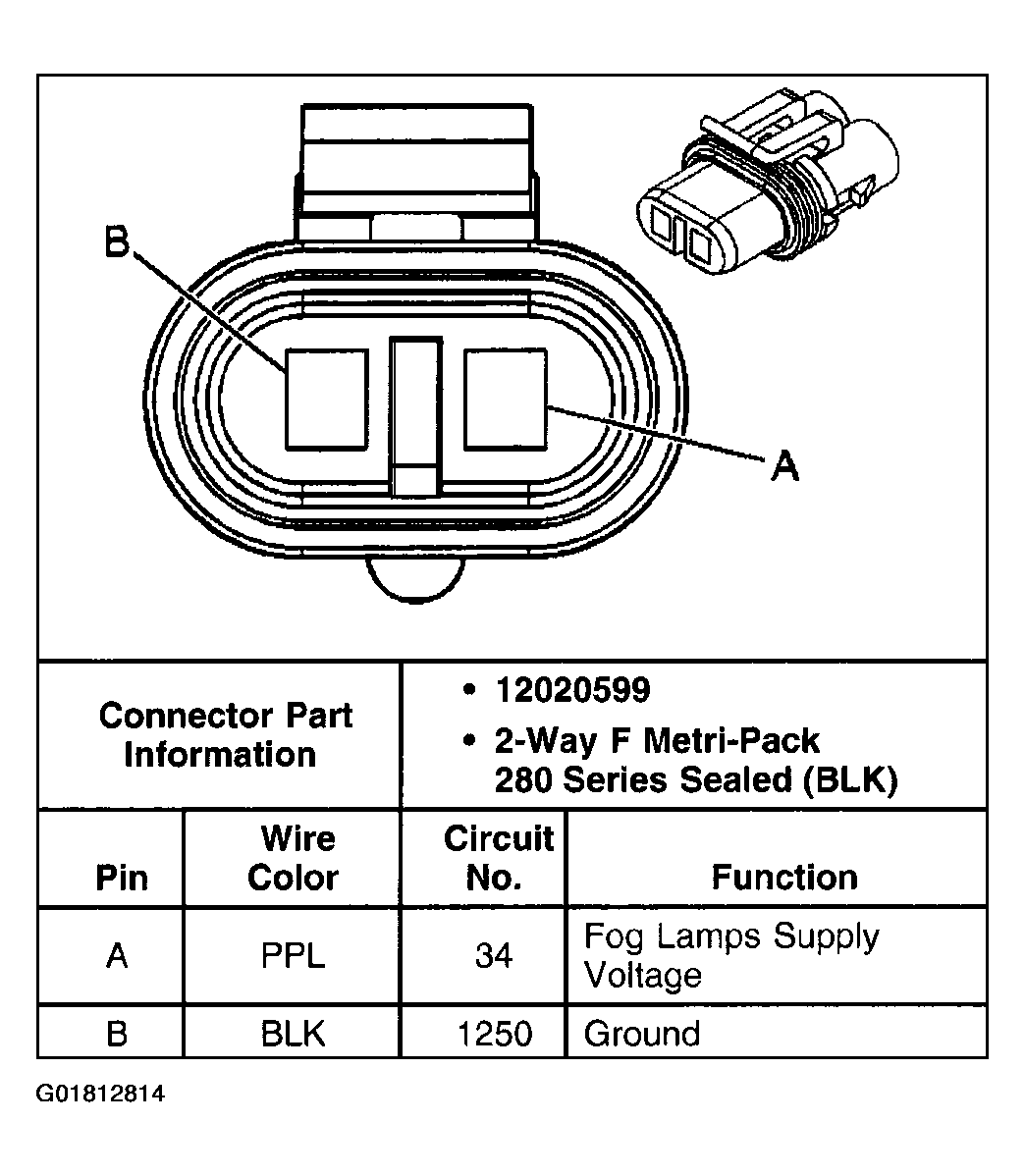

Fig 10: Fog Lamp-RF
G01812814Courtesy of GENERAL MOTORS CORP.

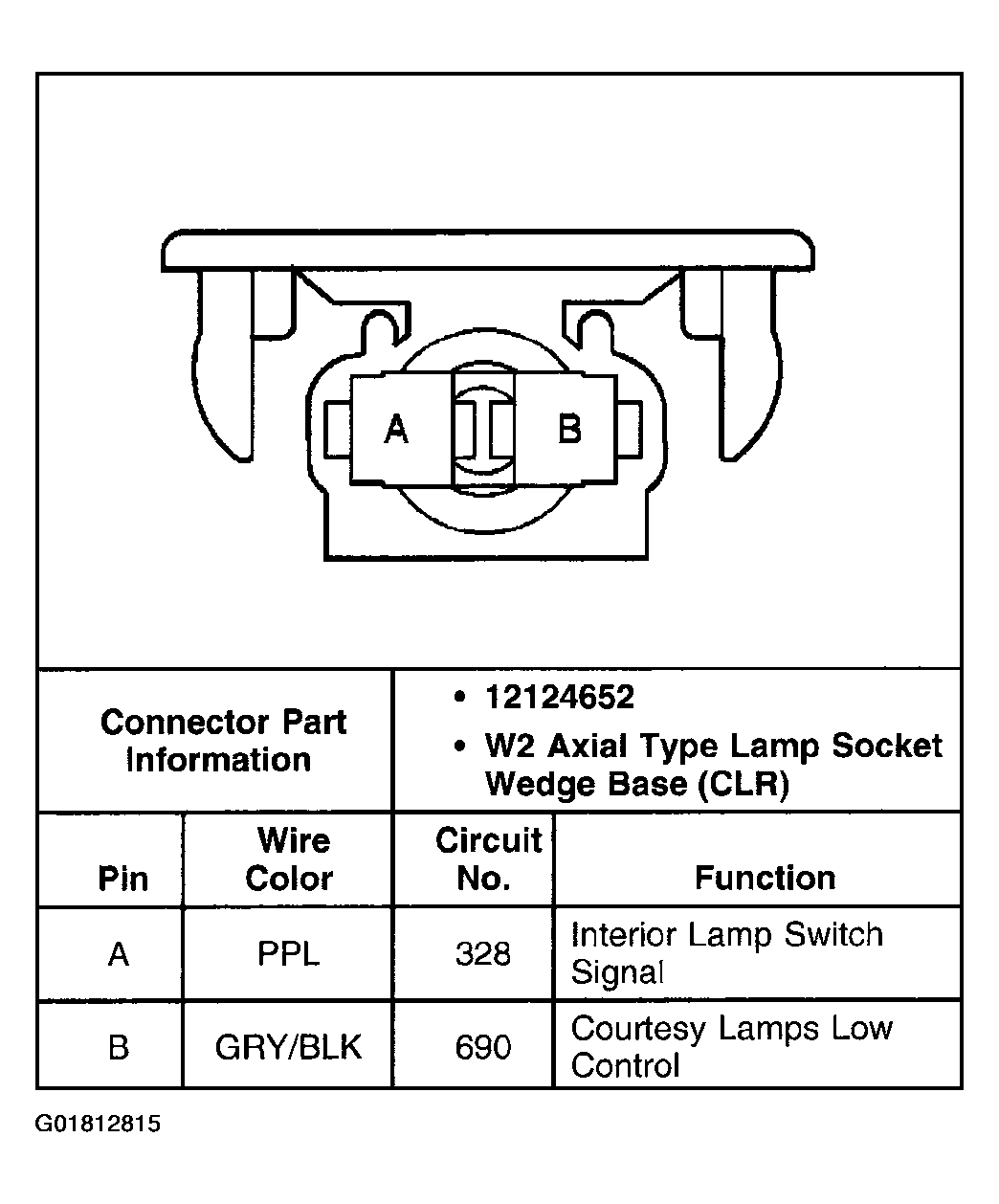

Fig 11: Footwell Courtesy Lamp-Left
G01812815Courtesy of GENERAL MOTORS CORP.

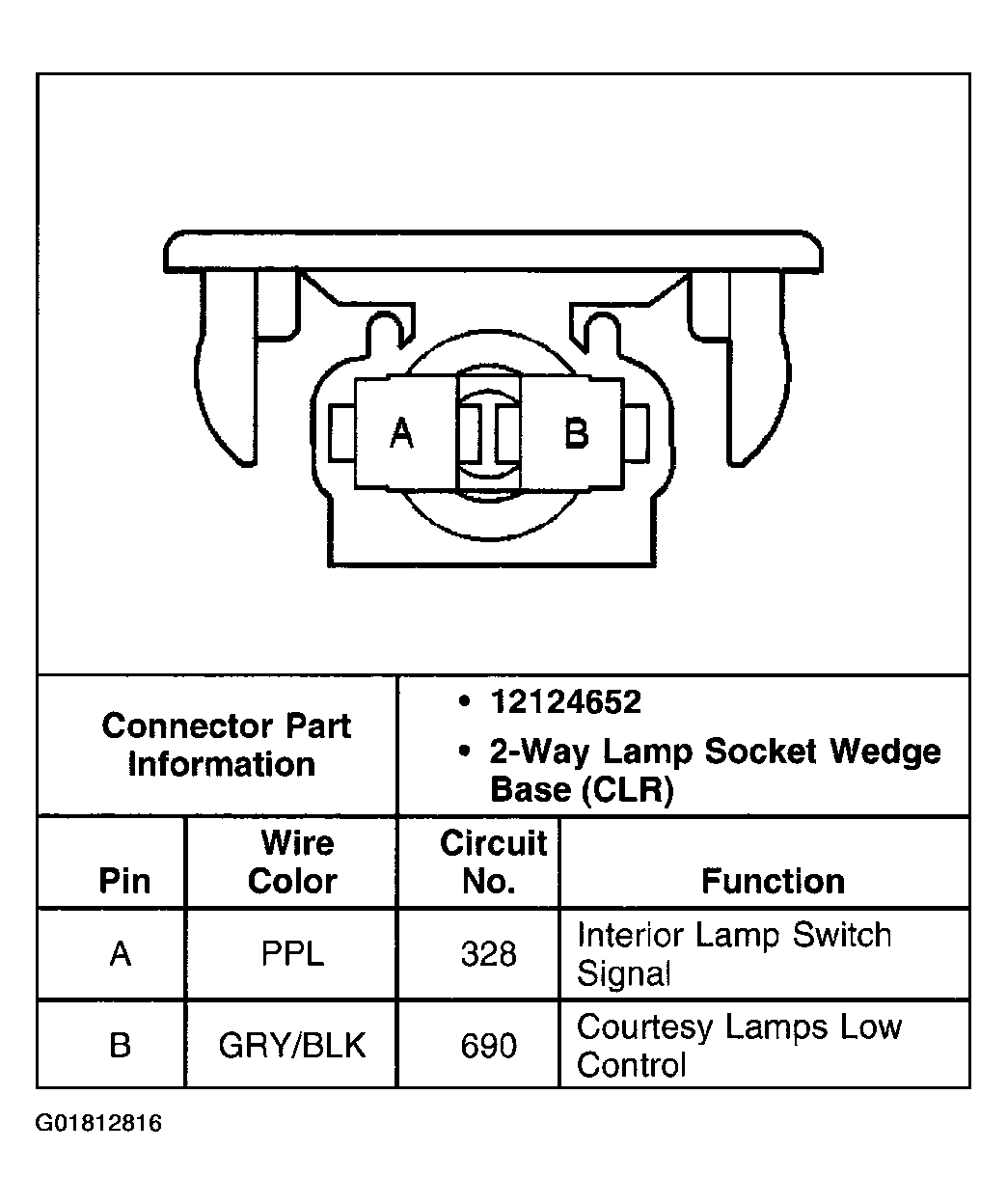

Fig 12: Footwell Courtesy Lamp-Right
G01812816Courtesy of GENERAL MOTORS CORP.

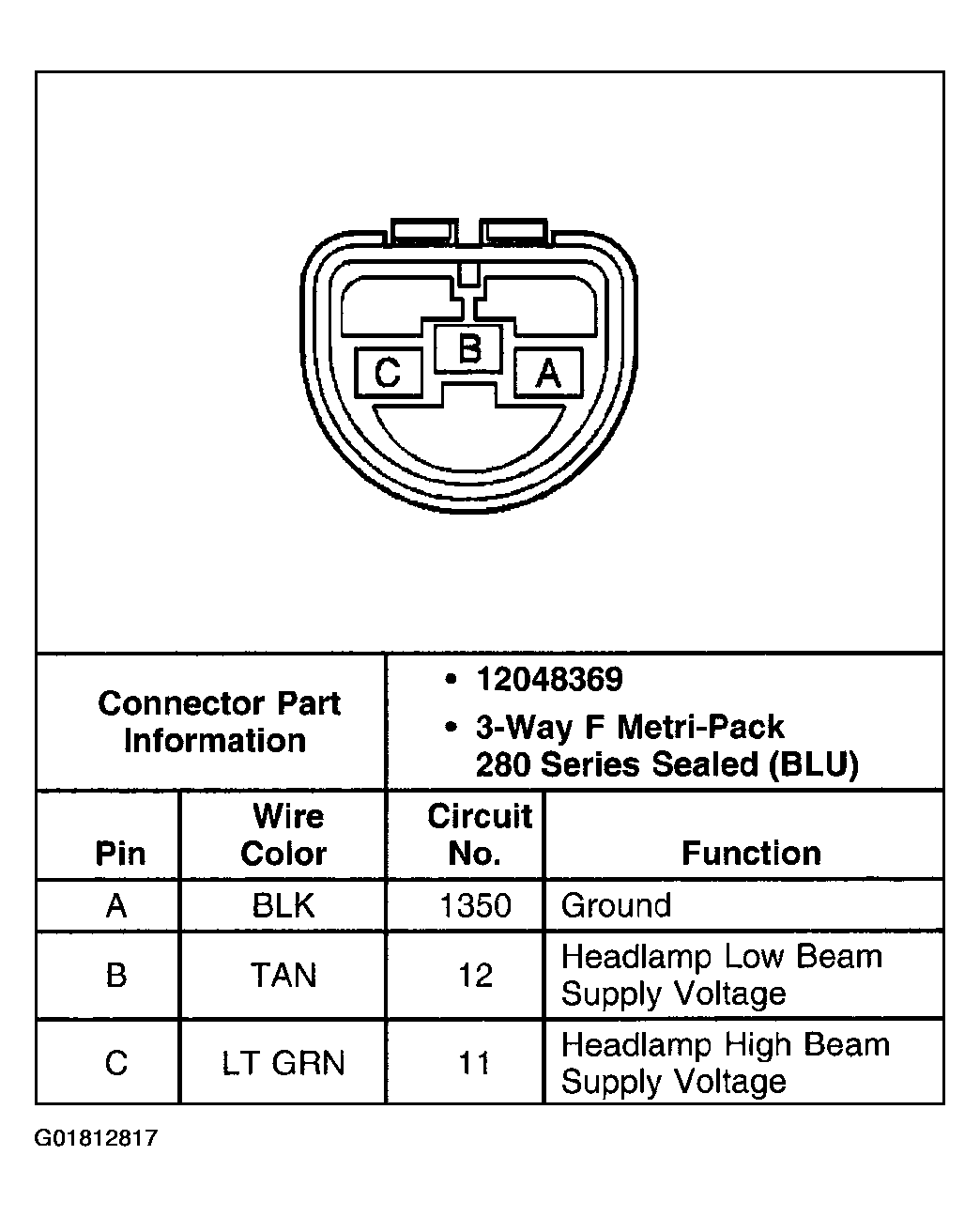

Fig 13: Headlamp Assembly-Left
G01812817Courtesy of GENERAL MOTORS CORP.

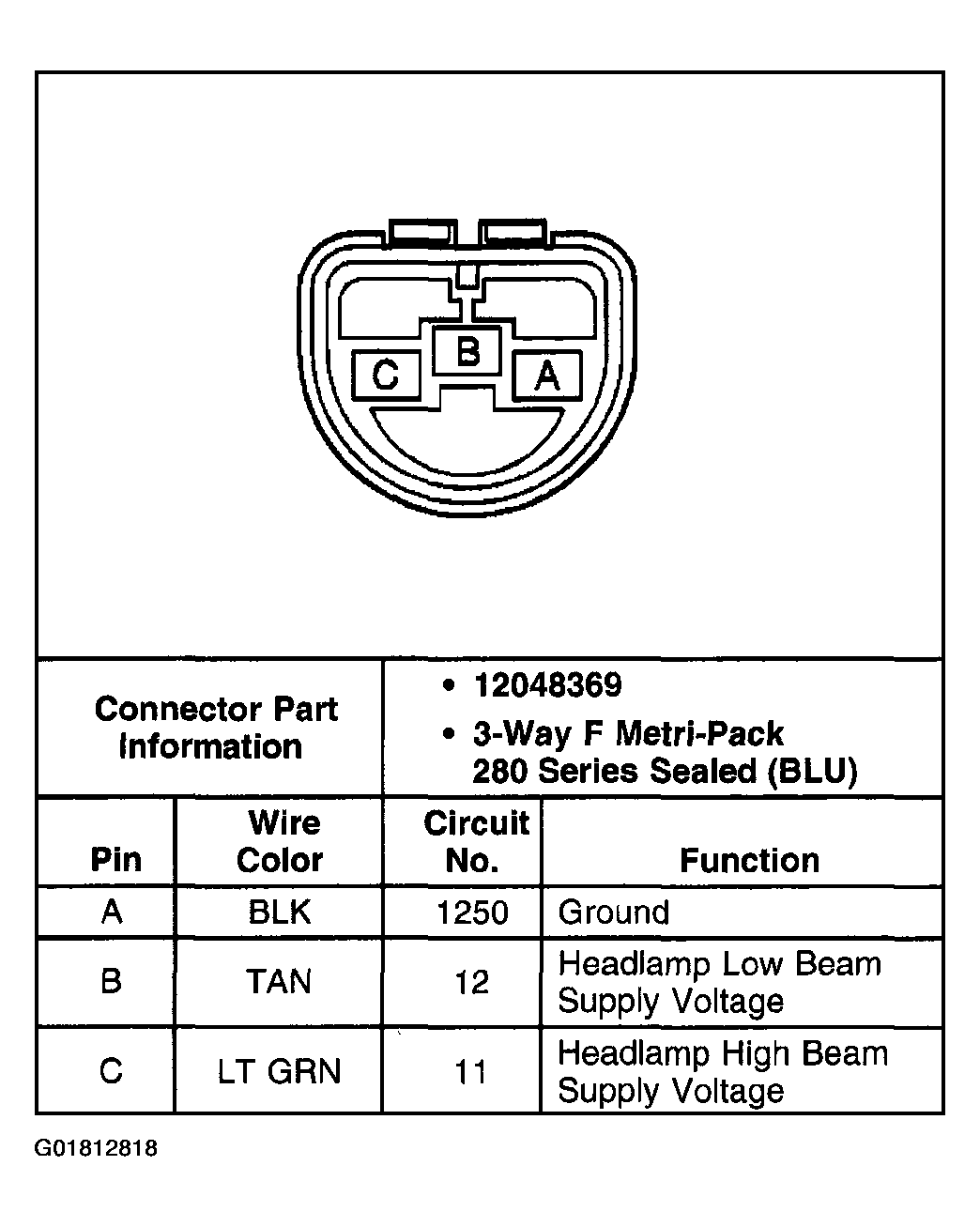

Fig 14: Headlamp Assembly-Right
G01812818Courtesy of GENERAL MOTORS CORP.

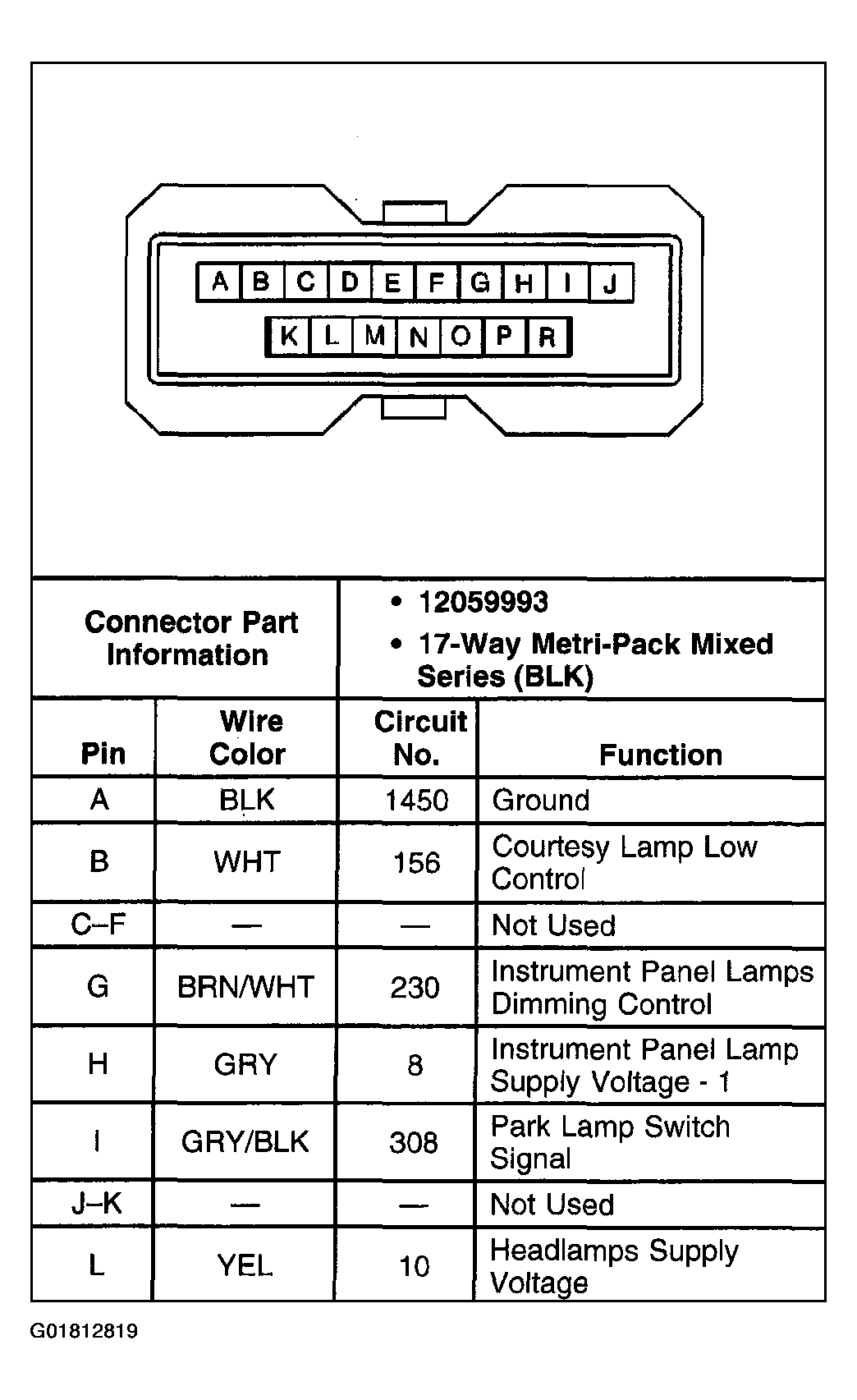

Fig 15: Headlamp Switch (1 Of 2)
G01812819Courtesy of GENERAL MOTORS CORP.

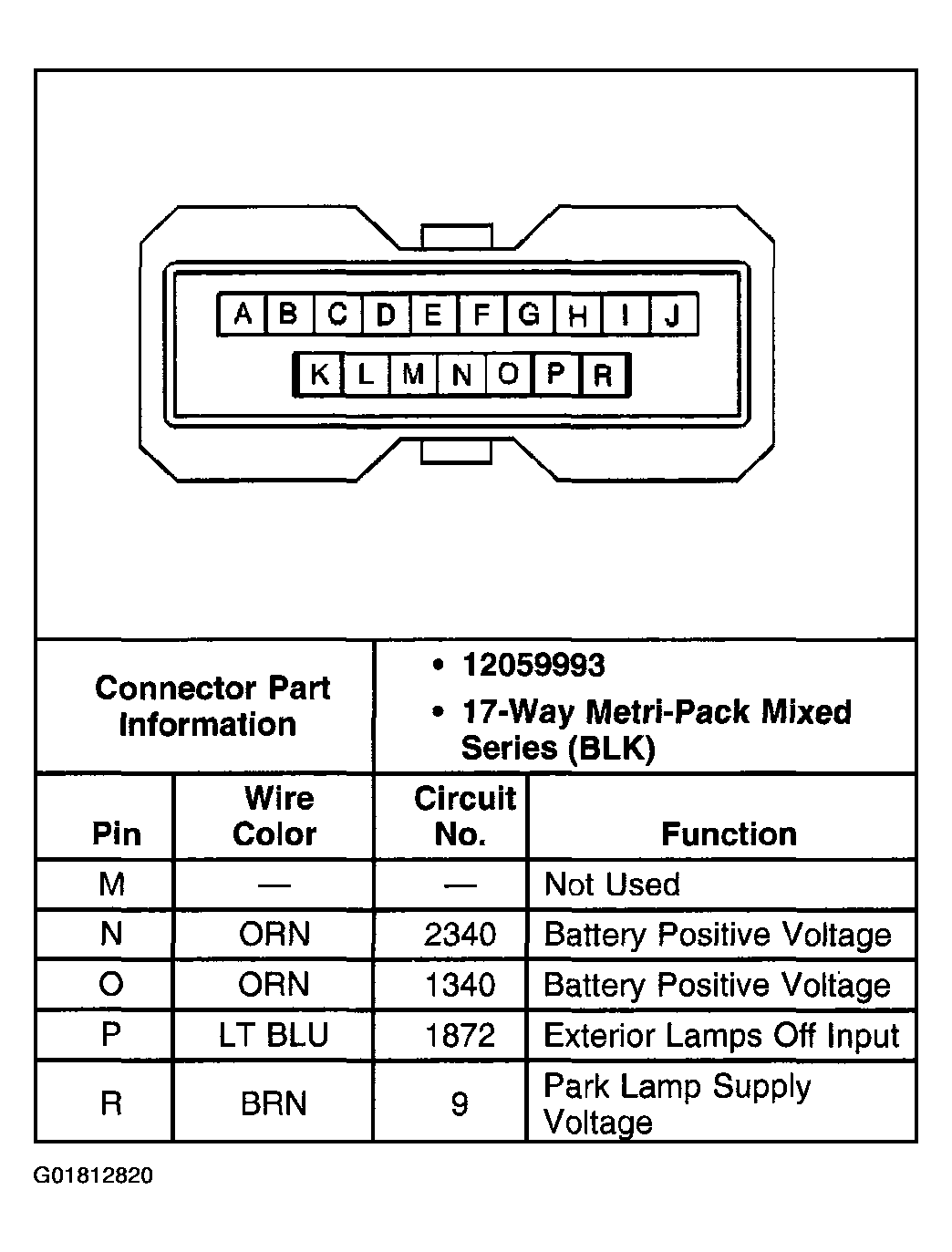

Fig 16: Headlamp Switch (2 Of 2)
G01812820Courtesy of GENERAL MOTORS CORP.
Fig 17: Interior Lamp & Multi-Function Switch Assembly C1-interior Lights Override Switch
G01812821Courtesy of GENERAL MOTORS CORP.
Fig 18: Interior Lamp & Multi-Function Switch Assembly C3 (Power Sliding Door Open/Close Switch)
G01812822Courtesy of GENERAL MOTORS CORP.

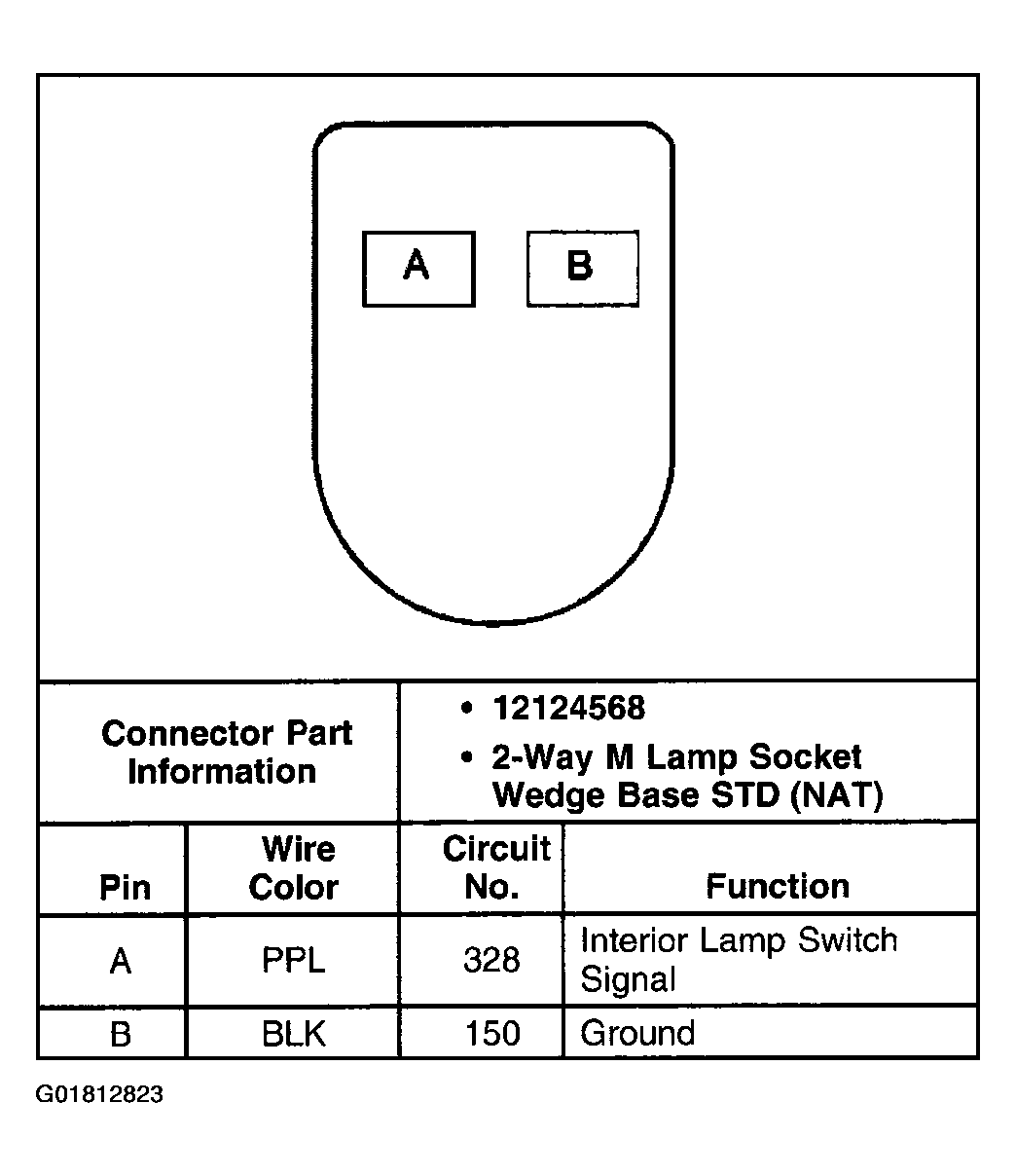

Fig 19: IP Compartment Lamp Switch
G01812823Courtesy of GENERAL MOTORS CORP.

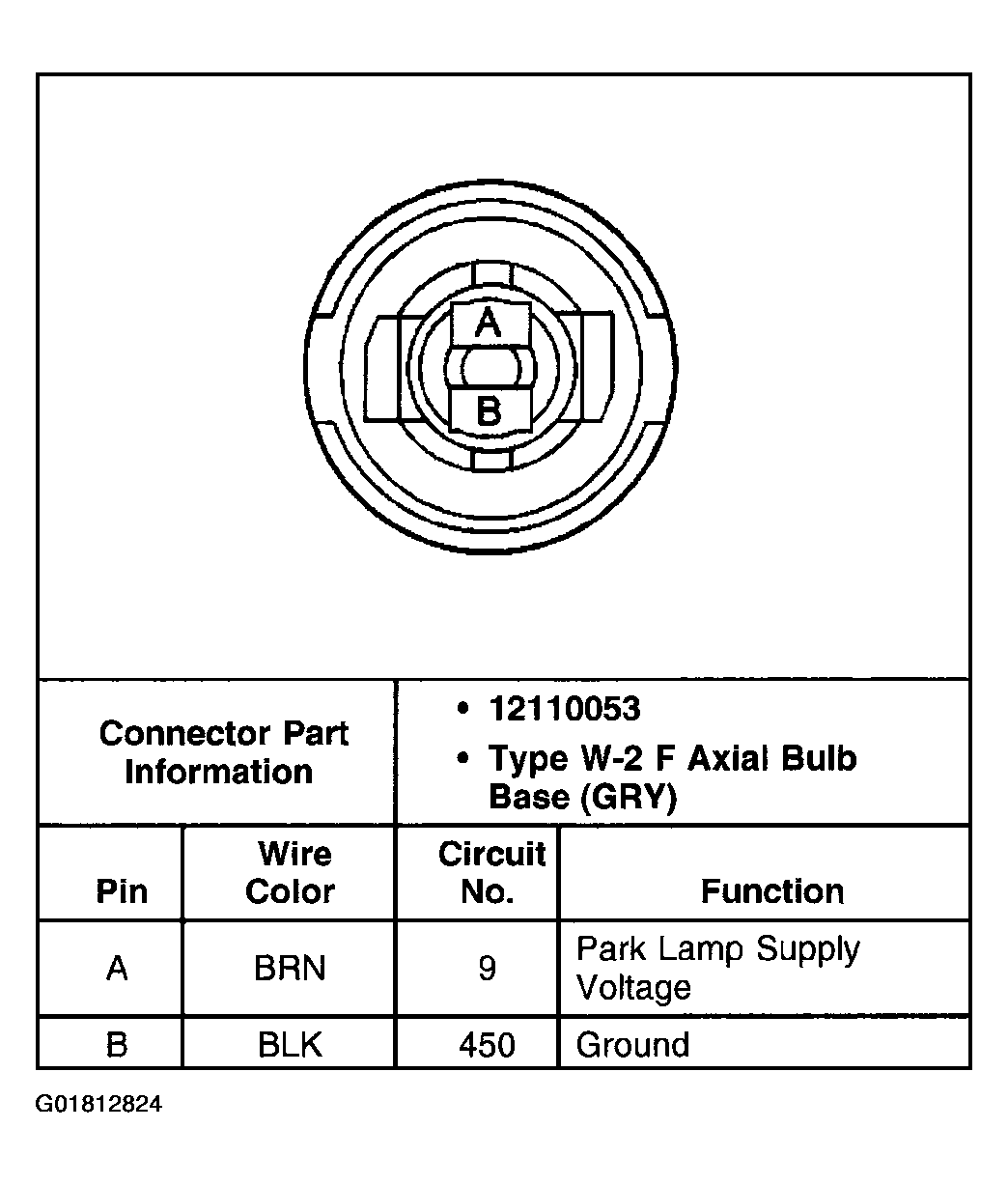

Fig 20: License Lamp-Left
G01812824Courtesy of GENERAL MOTORS CORP.

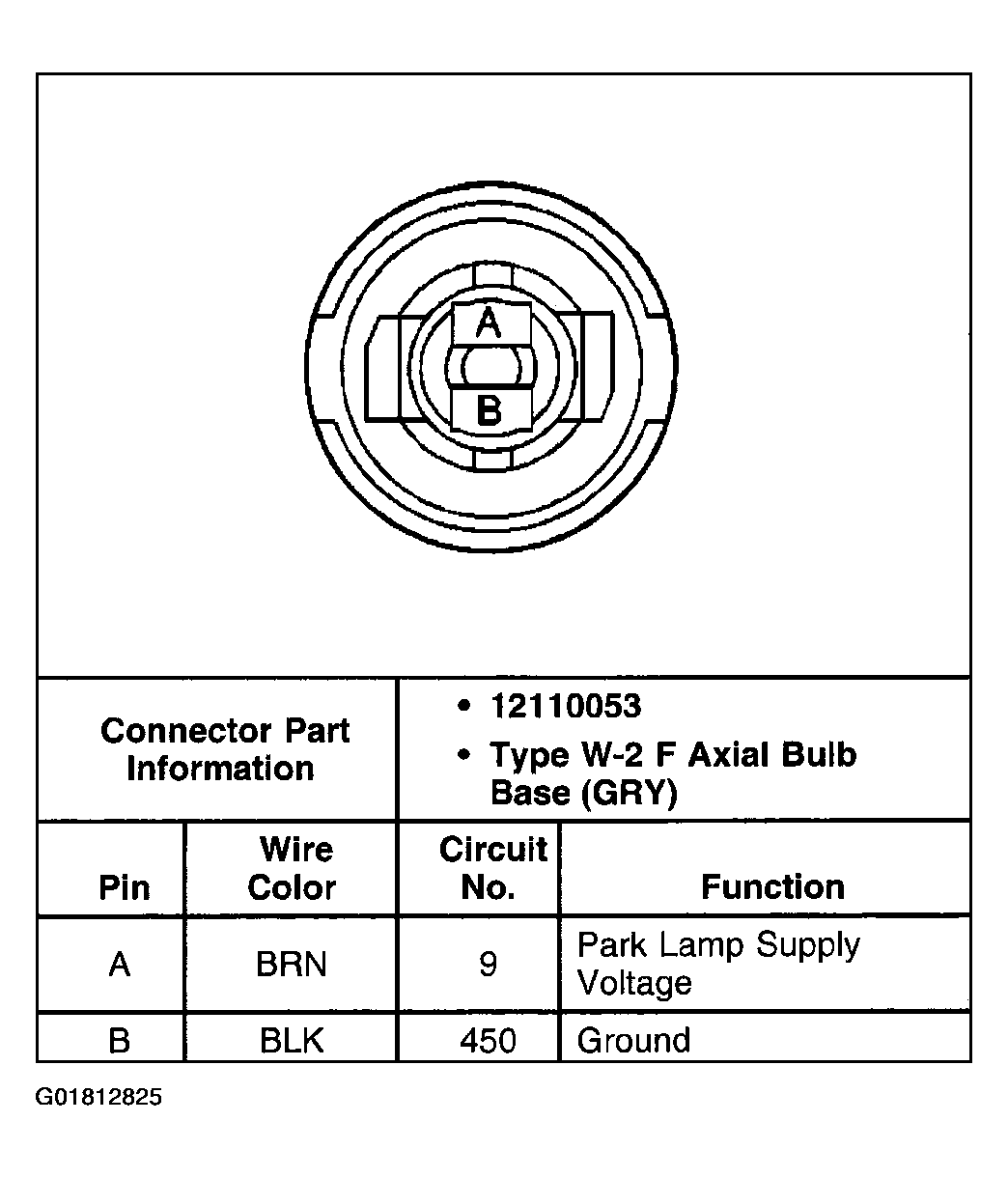

Fig 21: License Lamp-Right
G01812825Courtesy of GENERAL MOTORS CORP.

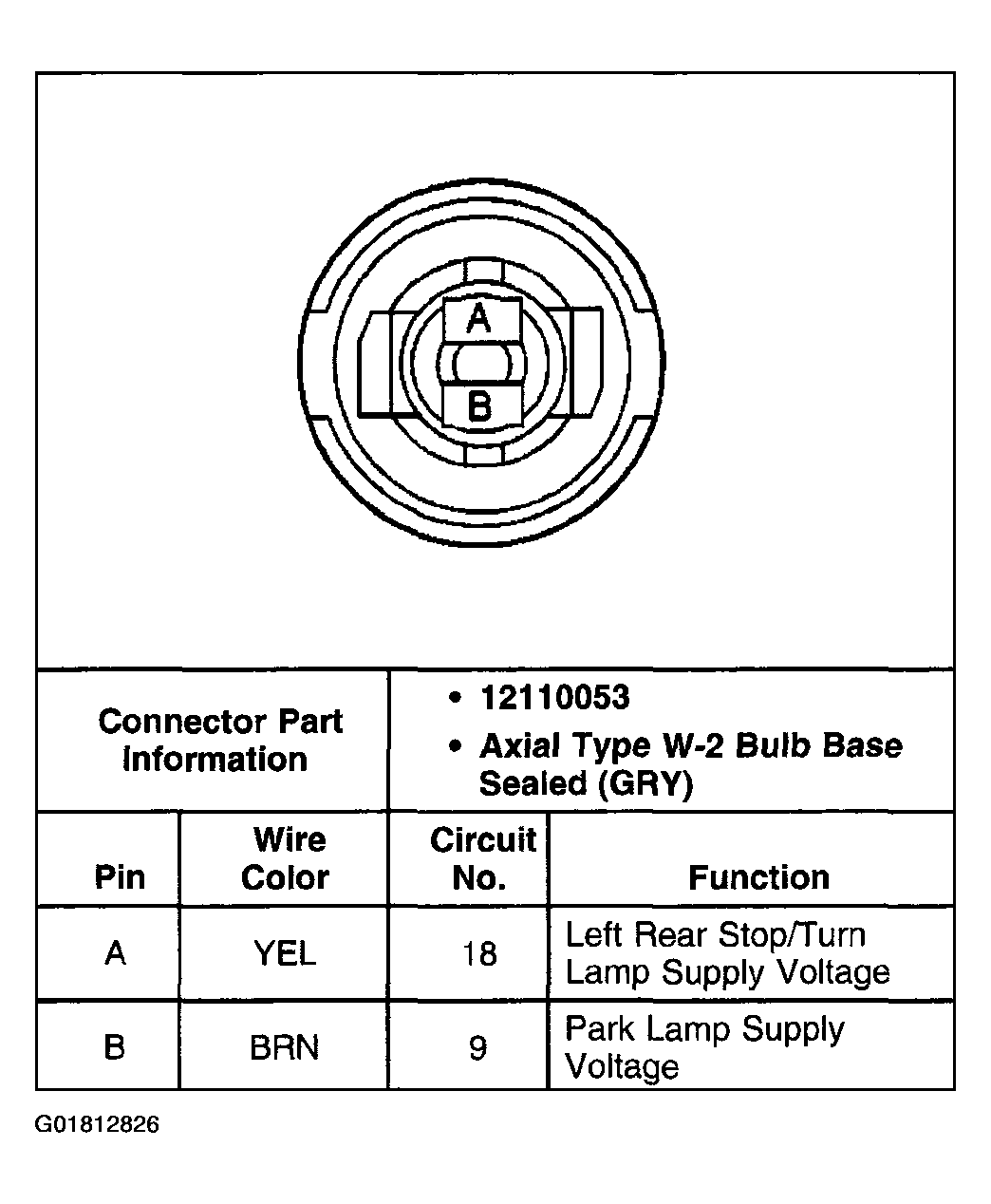

Fig 22: Marker Lamp-LF
G01812826Courtesy of GENERAL MOTORS CORP.
Fig 23: Marker Lamp-RF
G01812827Courtesy of GENERAL MOTORS CORP.

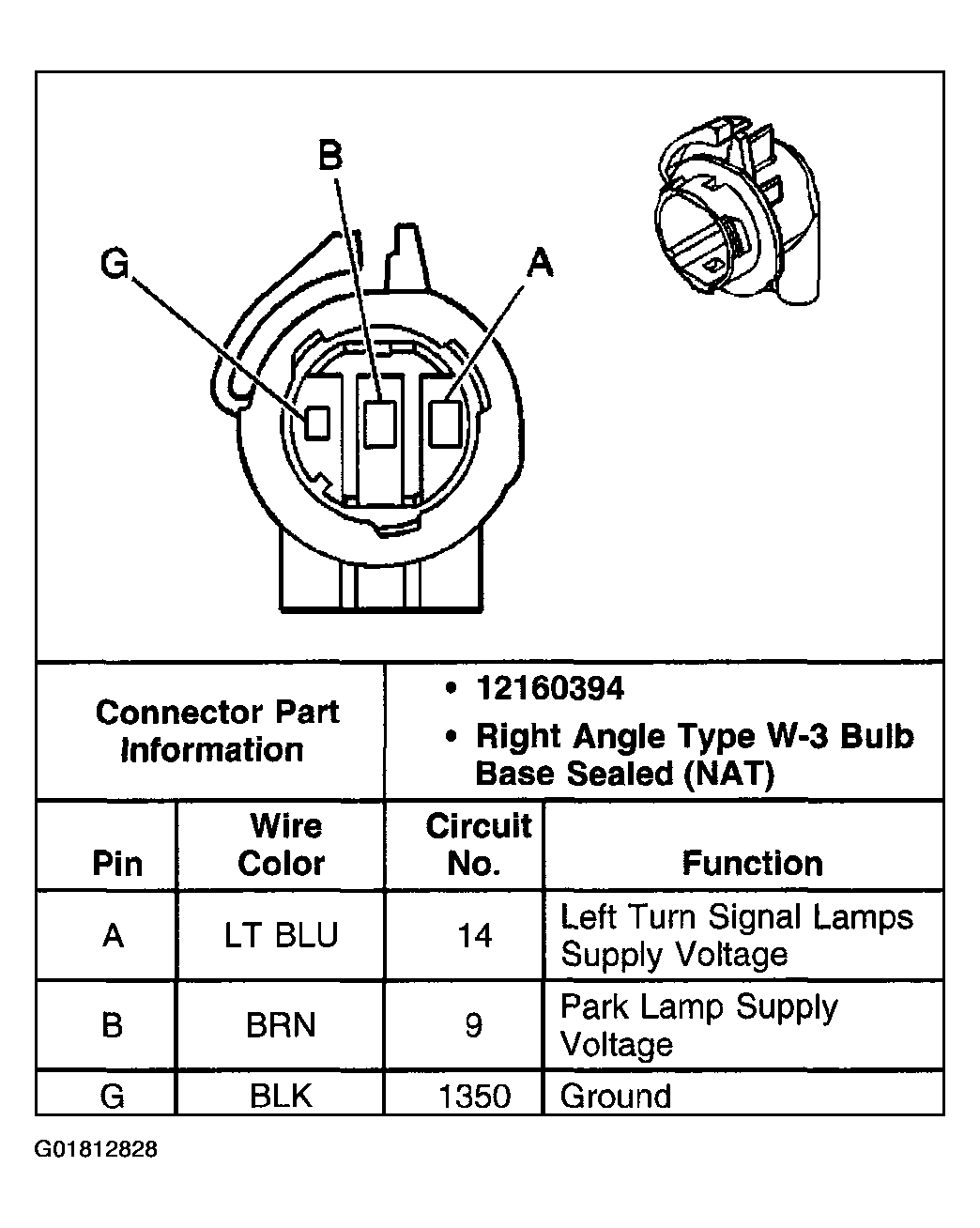

Fig 24: Park/Turn Signal Lamp-LF
G01812828Courtesy of GENERAL MOTORS CORP.
Fig 25: Park/Turn Signal Lamp-RF
G01812829Courtesy of GENERAL MOTORS CORP.
