Body Control Module Schematics

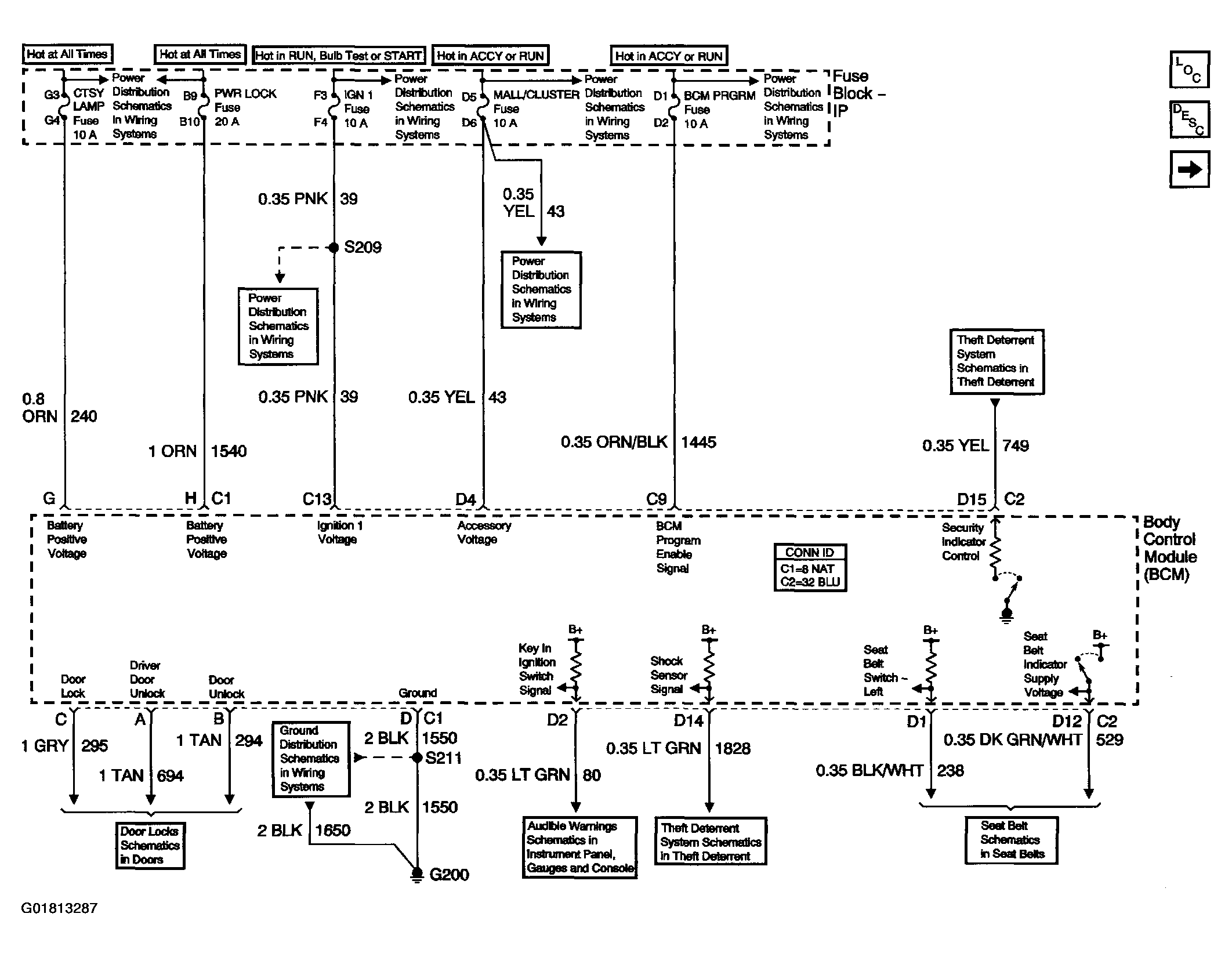

Fig 1: Body Control Module Schematics (Ignition Input, Door Locks And Exterior Lamps Output)
G01813287Courtesy of GENERAL MOTORS CORP.

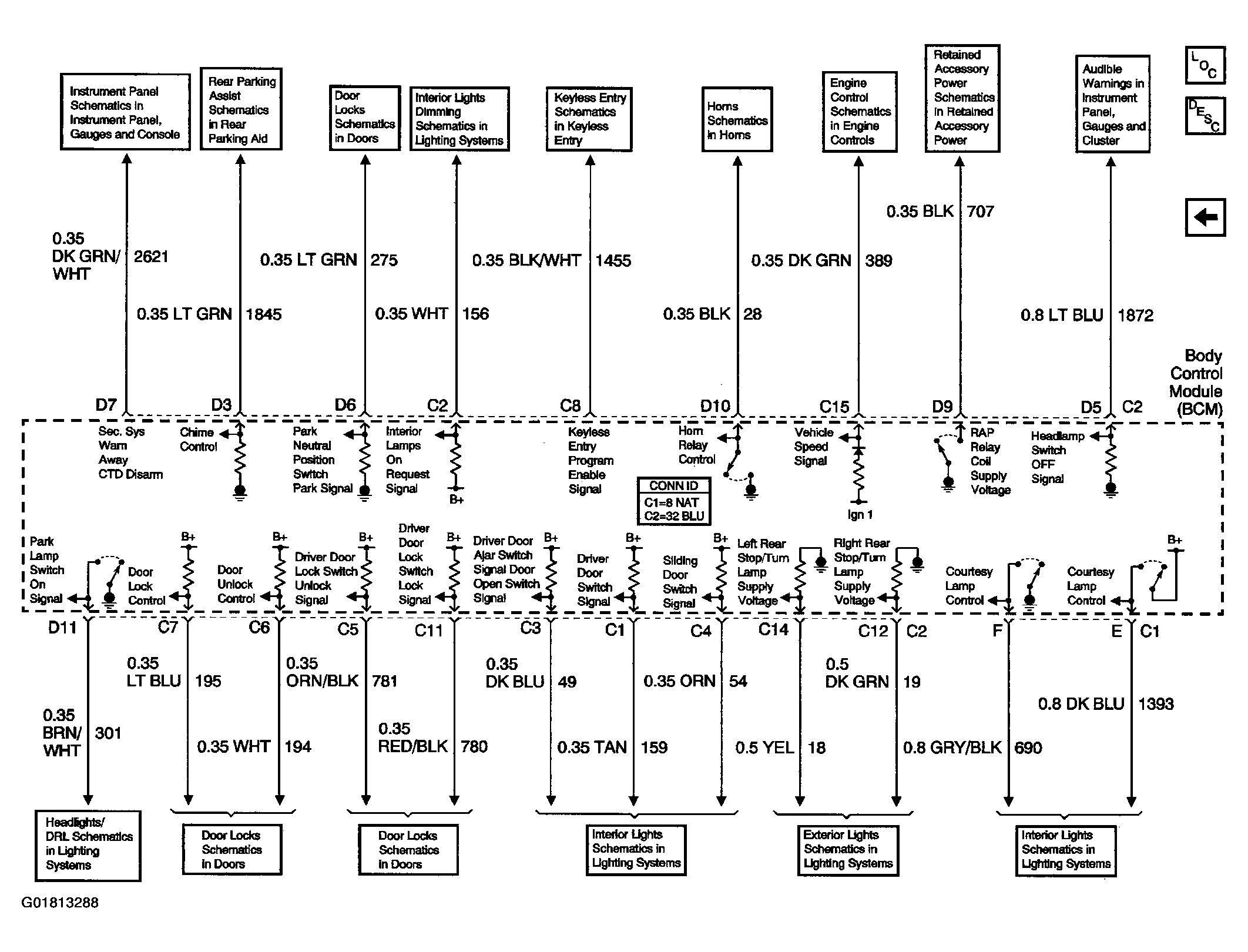

Fig 2: Body Control Module Schematics (Interior Lights On Request And Horn Control)
G01813288Courtesy of GENERAL MOTORS CORP.
