Installation Procedure

  1. Install the vent hose to the extension housing assembly vent tube.
  2. Connect the vent hose (2) to the retaining bracket on the transfer case assembly.
  3. Install the vent hose clamp (1) to the extension housing assembly.
  4. Lower the vehicle.

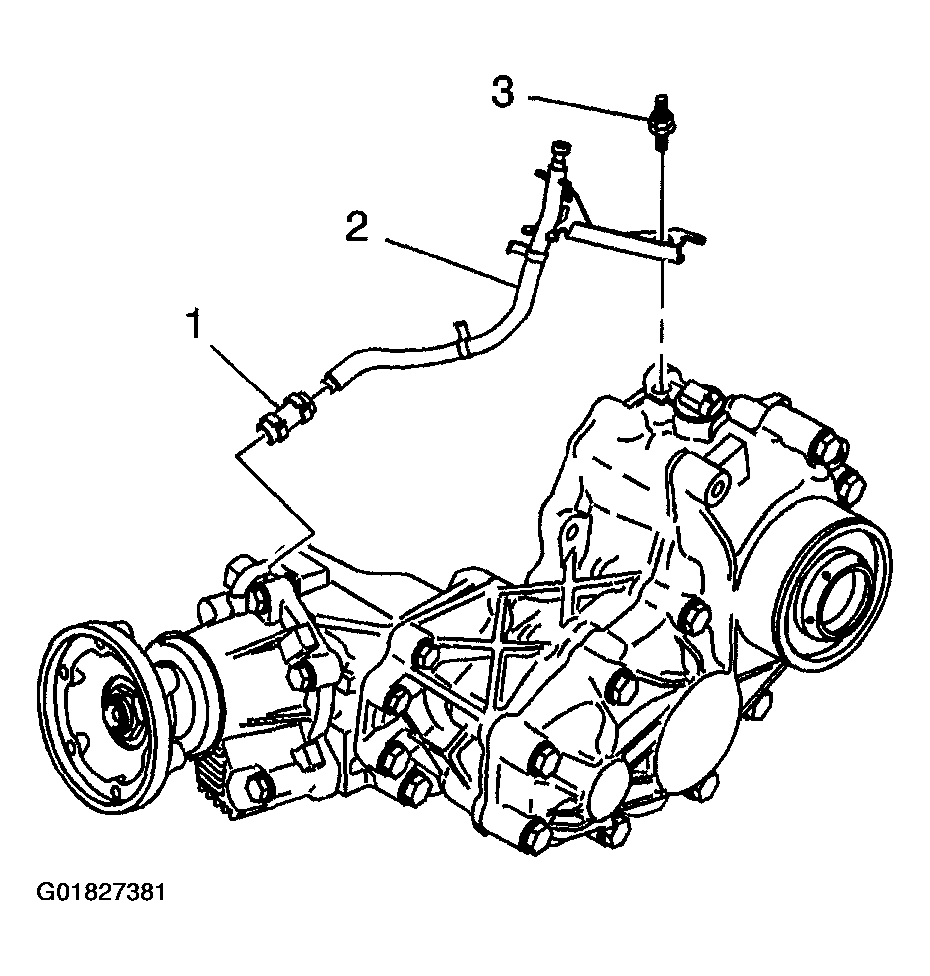

    Fig 1: Installing Vent Hose & Clamp
    G01827381Courtesy of GENERAL MOTORS CORP.
