Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the fill plug (2) and gasket.
  3. Place a container under the drain plug (1) in order to catch the oil.
  4. Remove the drain plug and gasket. Allow the oil to drain.

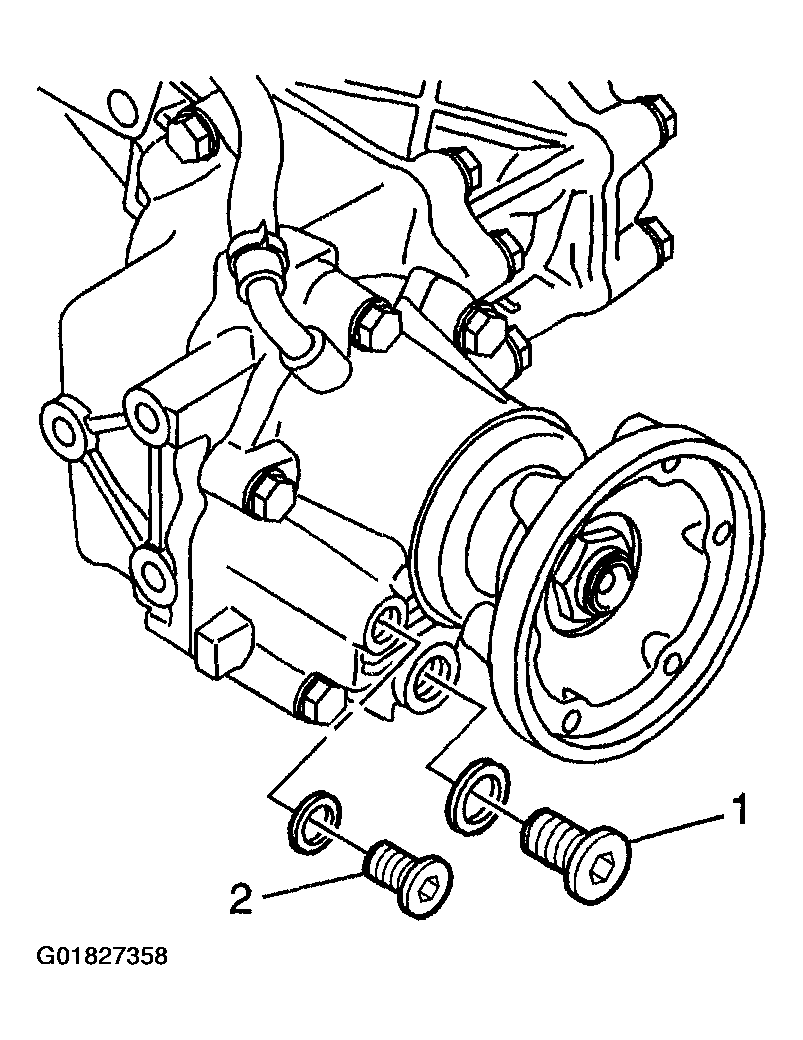

    Fig 1: Removing Fill Plug, Gasket & Drain Plug
    G01827358Courtesy of GENERAL MOTORS CORP.
