Installation Procedure

  1. Install the transfer case brace.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the transfer case brace bolts.

    Tighten

    Tighten the bolts to 47 N.m 35 lb ft).

  3. Lower the vehicle.

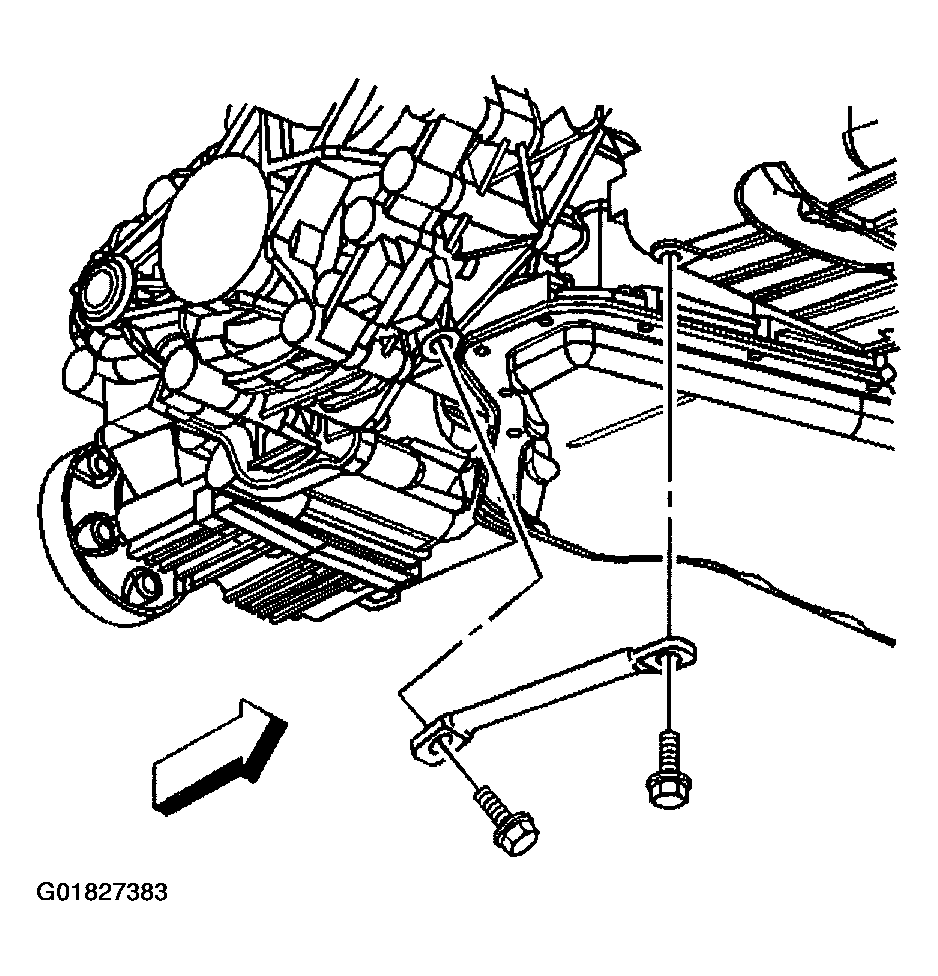

    Fig 1: Installing Transfer Case Brace & Bolts
    G01827383Courtesy of GENERAL MOTORS CORP.
