Installation Procedure

  1. Install the stabilizer link into the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the stabilizer shaft link bolt and nut.

    Tighten

    Tighten the stabilizer shaft link nut to 23 N.m (17 lb ft).

  3. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Lower the vehicle.

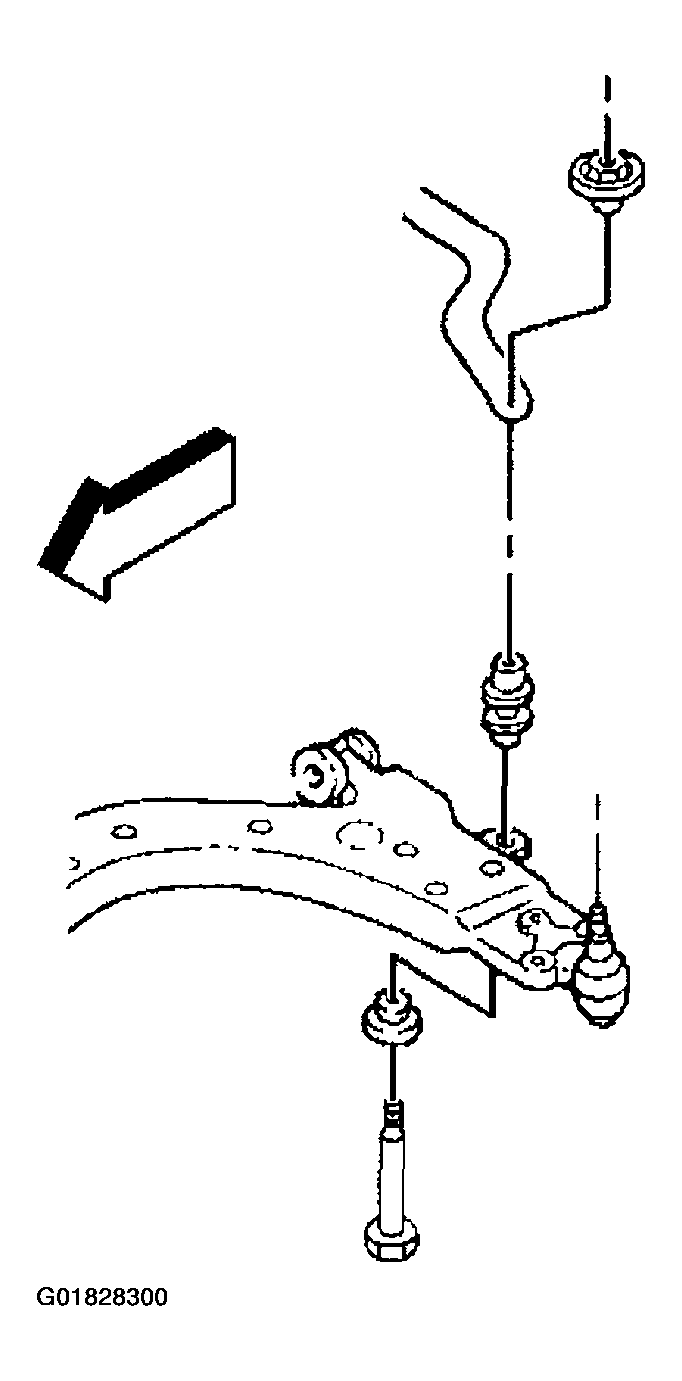

    Fig 1: Installing Stabilizer Shaft Link Bolt & Nut
    G01828300Courtesy of GENERAL MOTORS CORP.
