Removal Procedure

  1. Remove the body pillar upper trim panel. Refer to Garnish Molding Replacement - Upper Pillar .
  2. Remove the assist handle retaining bolts.
  3. Remove the assist handle from the vehicle.

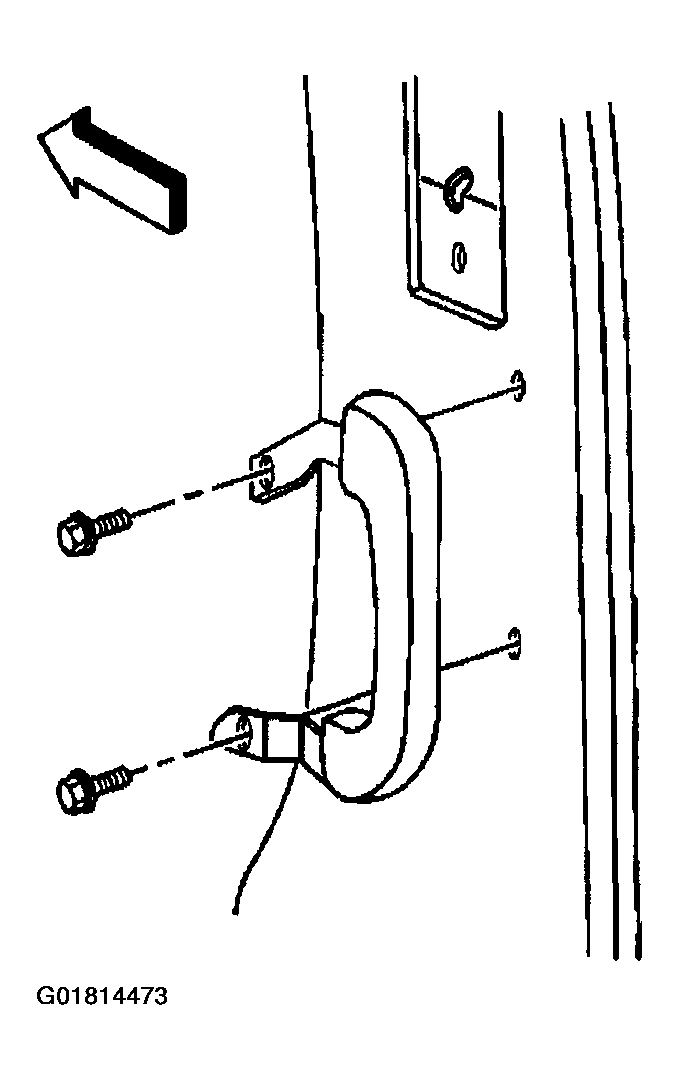

    Fig 1: Removing Assist Handle & Retaining Bolts
    G01814473Courtesy of GENERAL MOTORS CORP.
