Disassembled Views

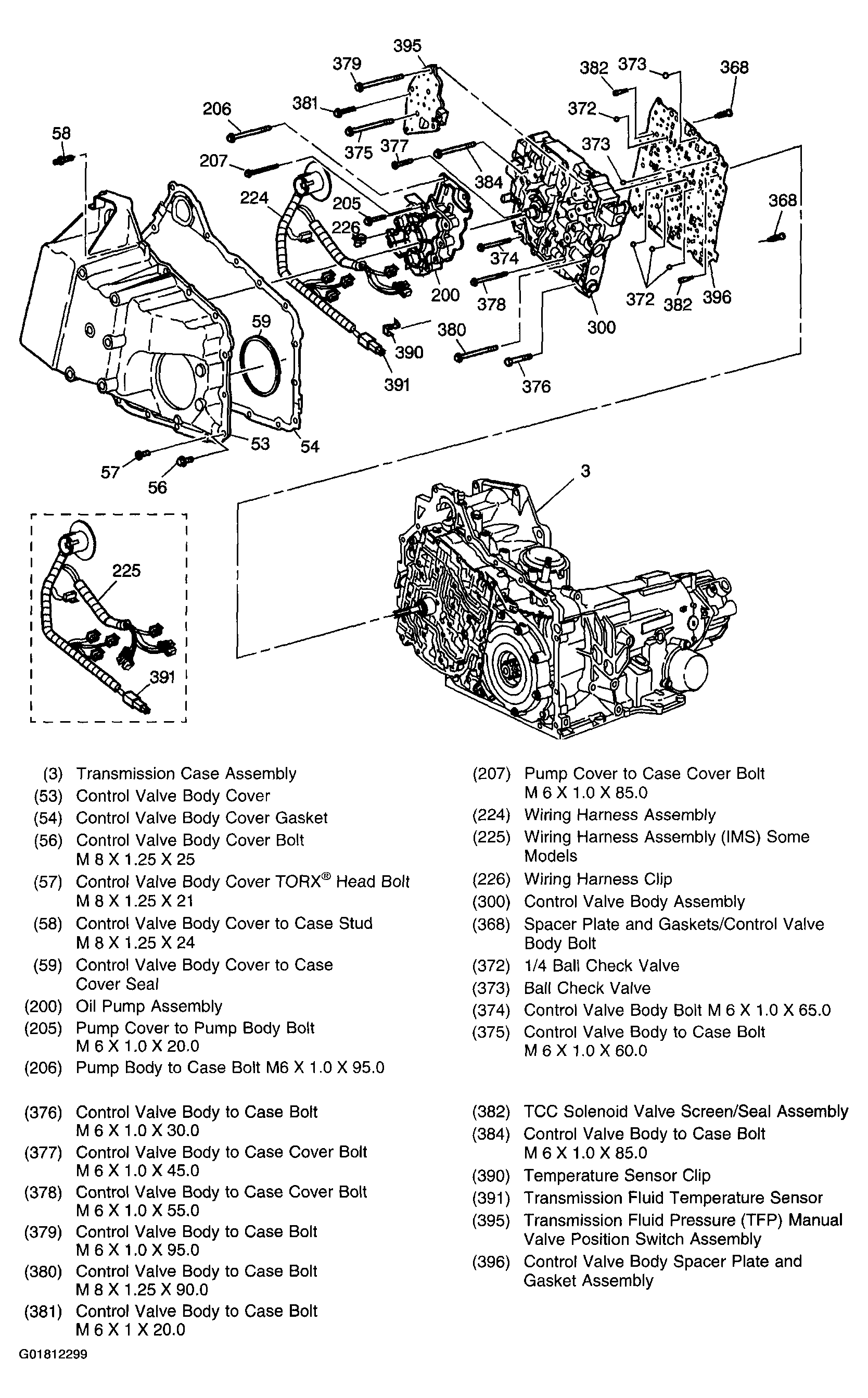

Fig 1: Case And Associated Parts (1 Of 4)

G01812299

Courtesy of GENERAL MOTORS CORP.

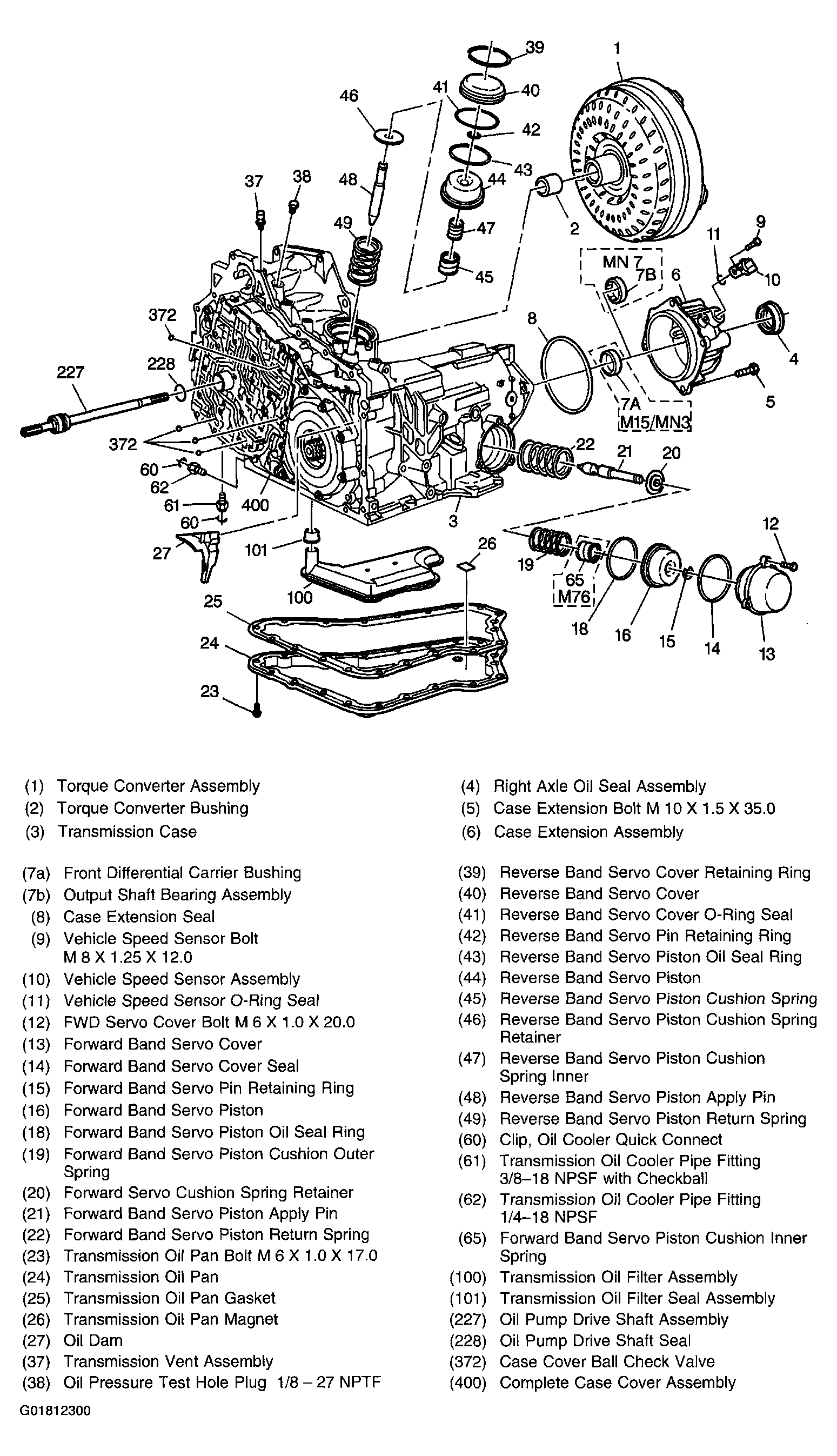

Fig 2: Case And Associated Parts (2 Of 4)

G01812300

Courtesy of GENERAL MOTORS CORP.

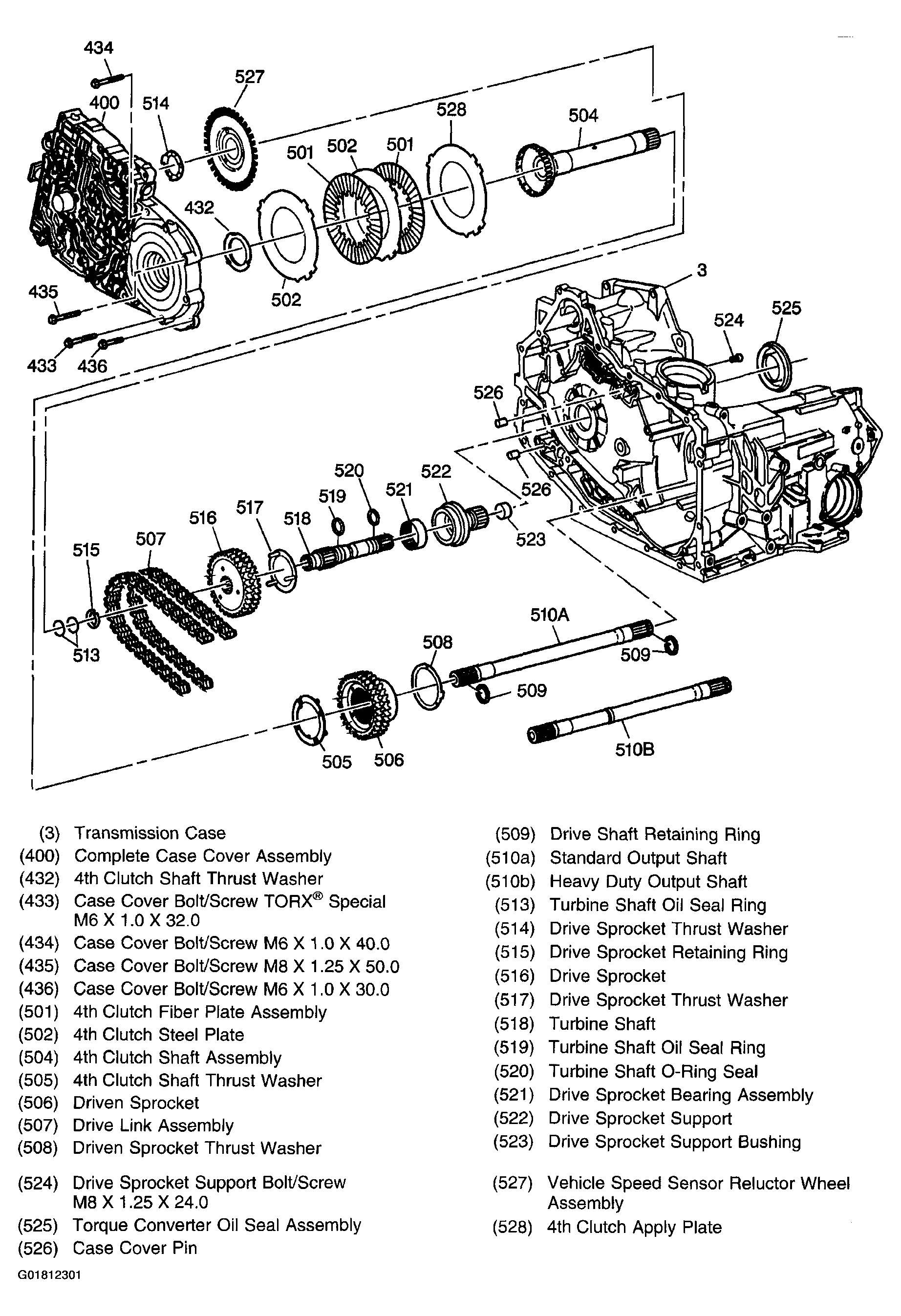

Fig 3: Case And Associated Parts (3 Of 4)

G01812301

Courtesy of GENERAL MOTORS CORP.

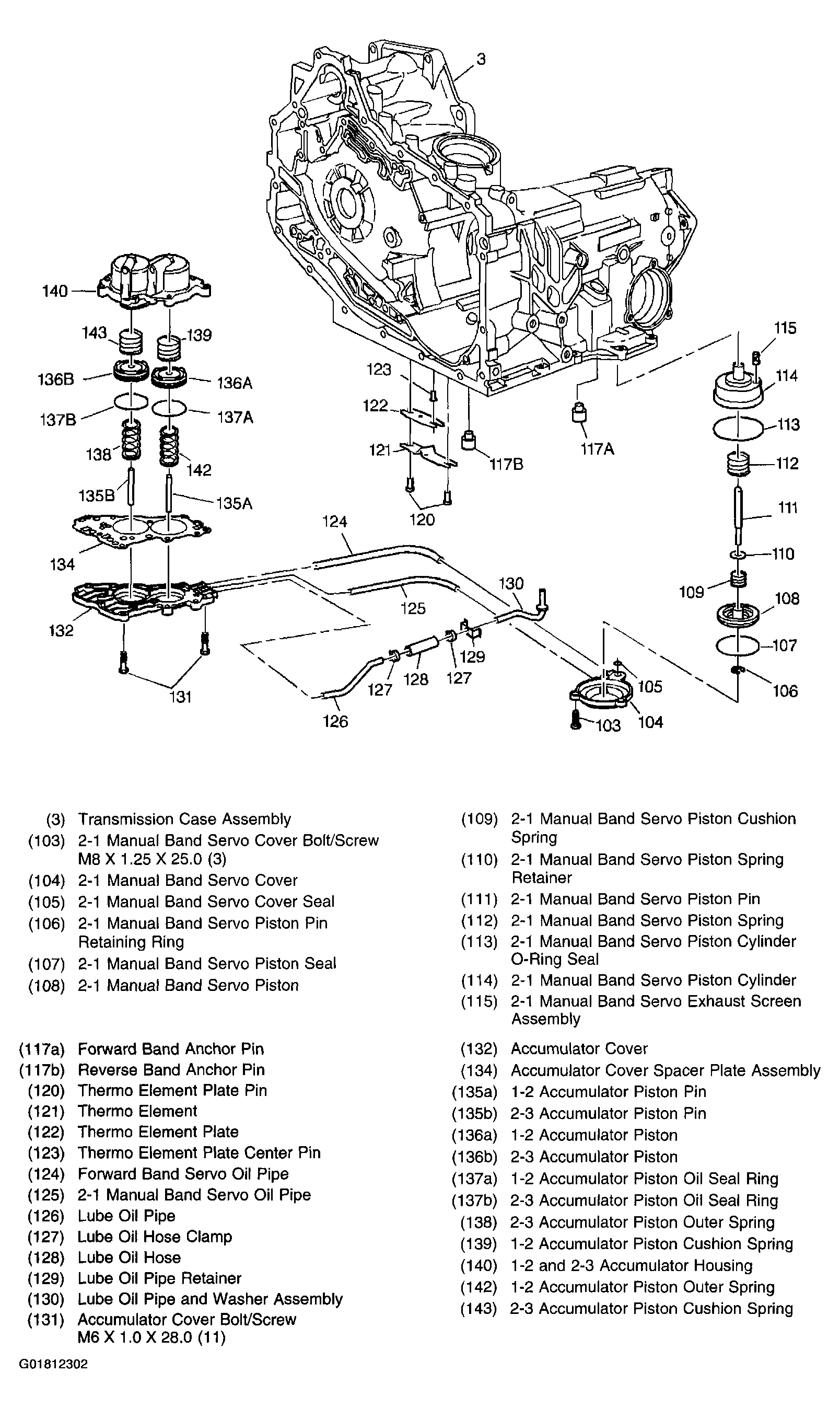

Fig 4: Case And Associated Parts (4 Of 4)

G01812302

Courtesy of GENERAL MOTORS CORP.

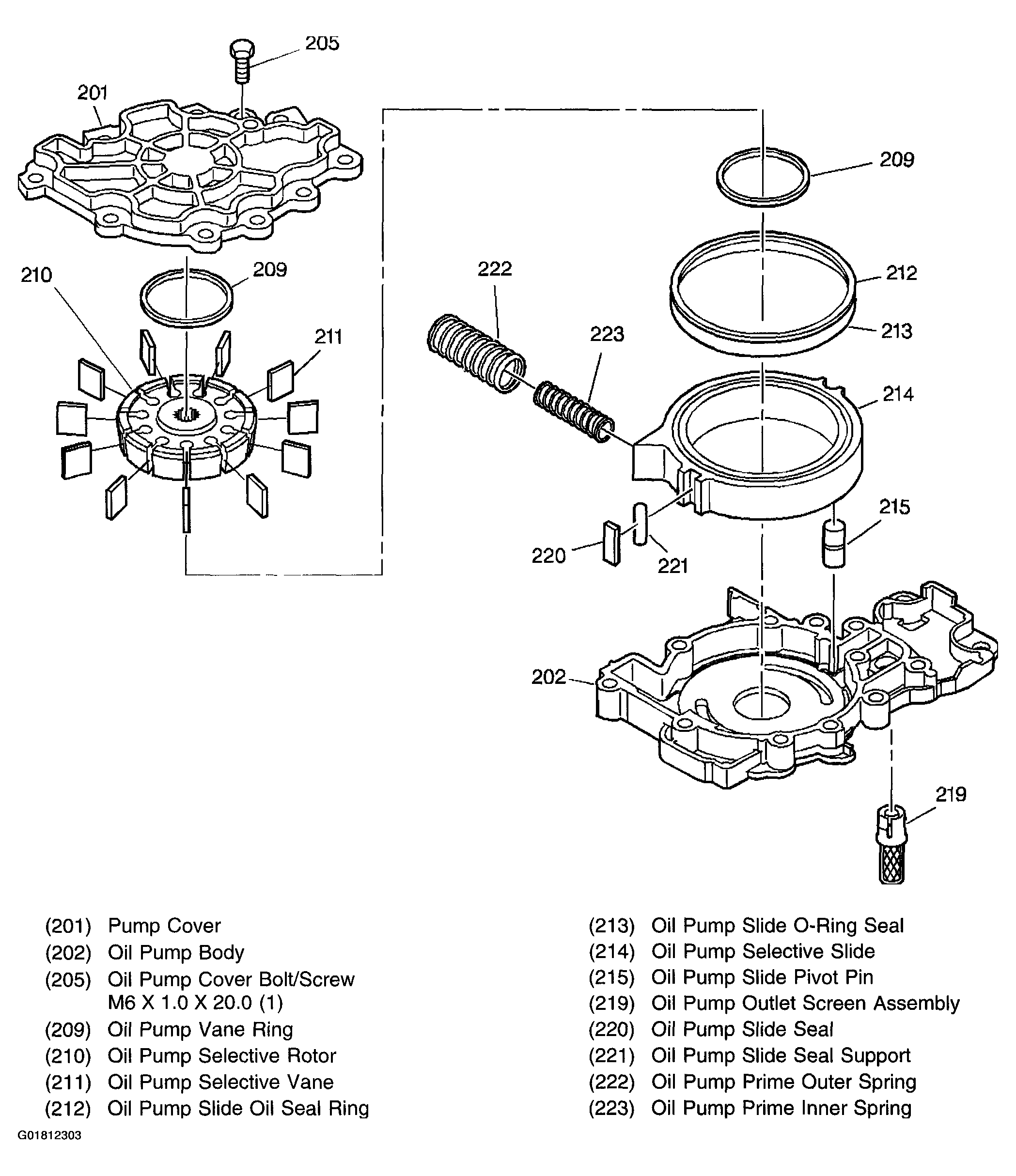

Fig 5: Oil Pump Assembly

G01812303

Courtesy of GENERAL MOTORS CORP.

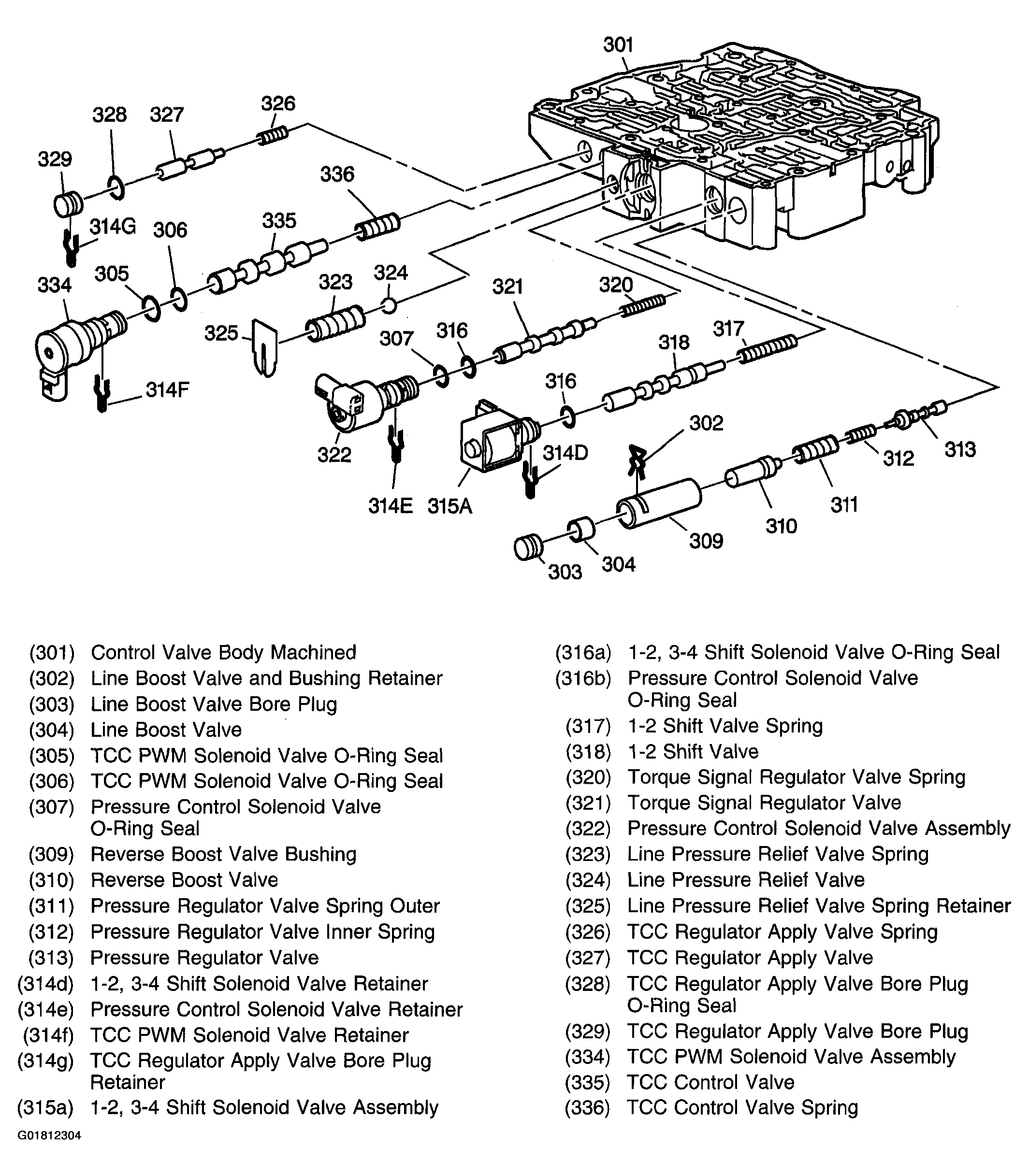

Fig 6: Control Valve Body Assembly (1 Of 2)

G01812304

Courtesy of GENERAL MOTORS CORP.

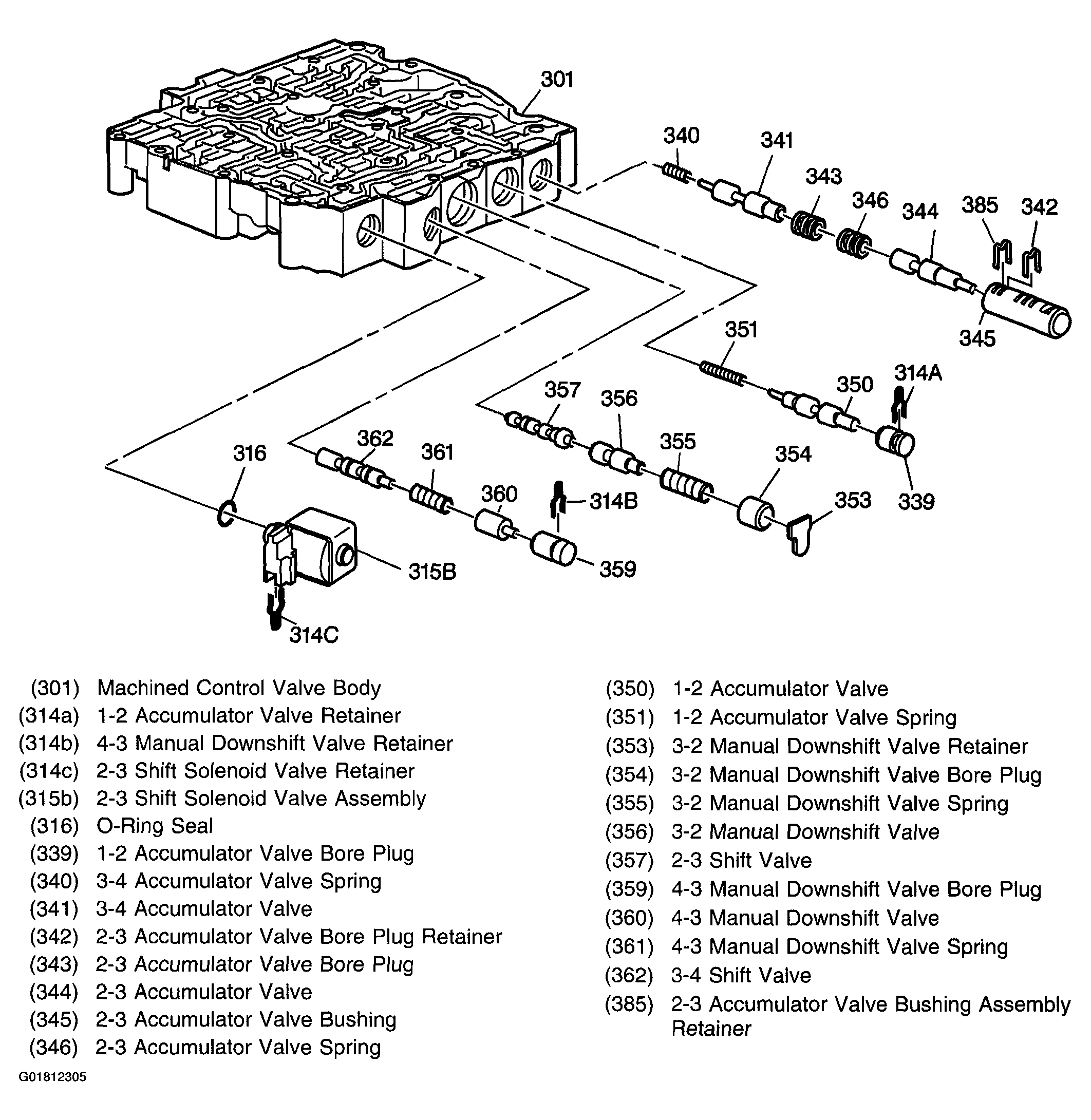

Fig 7: Control Valve Body Assembly (2 Of 2)

G01812305

Courtesy of GENERAL MOTORS CORP.

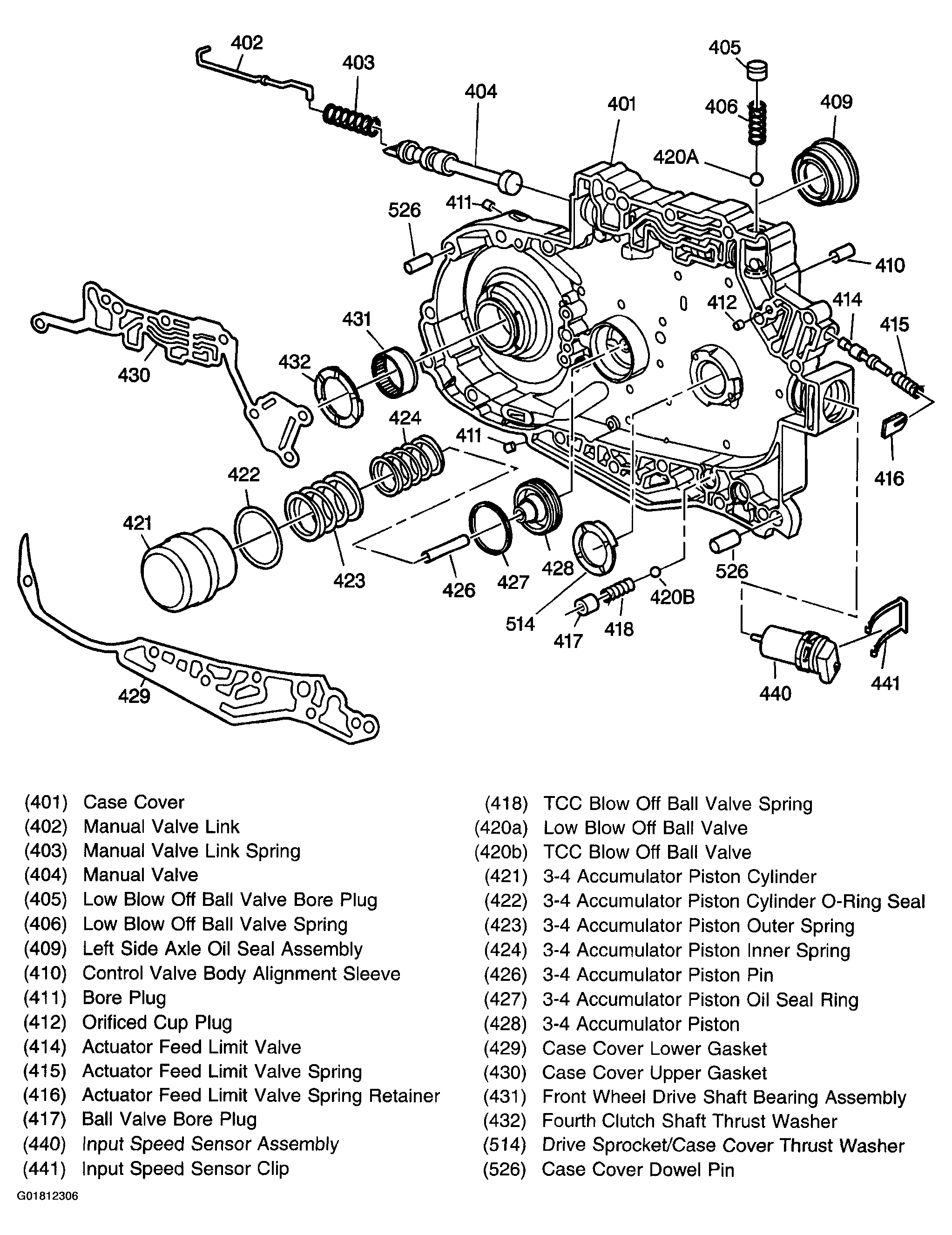

Fig 8: Case Cover Assembly

G01812306

Courtesy of GENERAL MOTORS CORP.

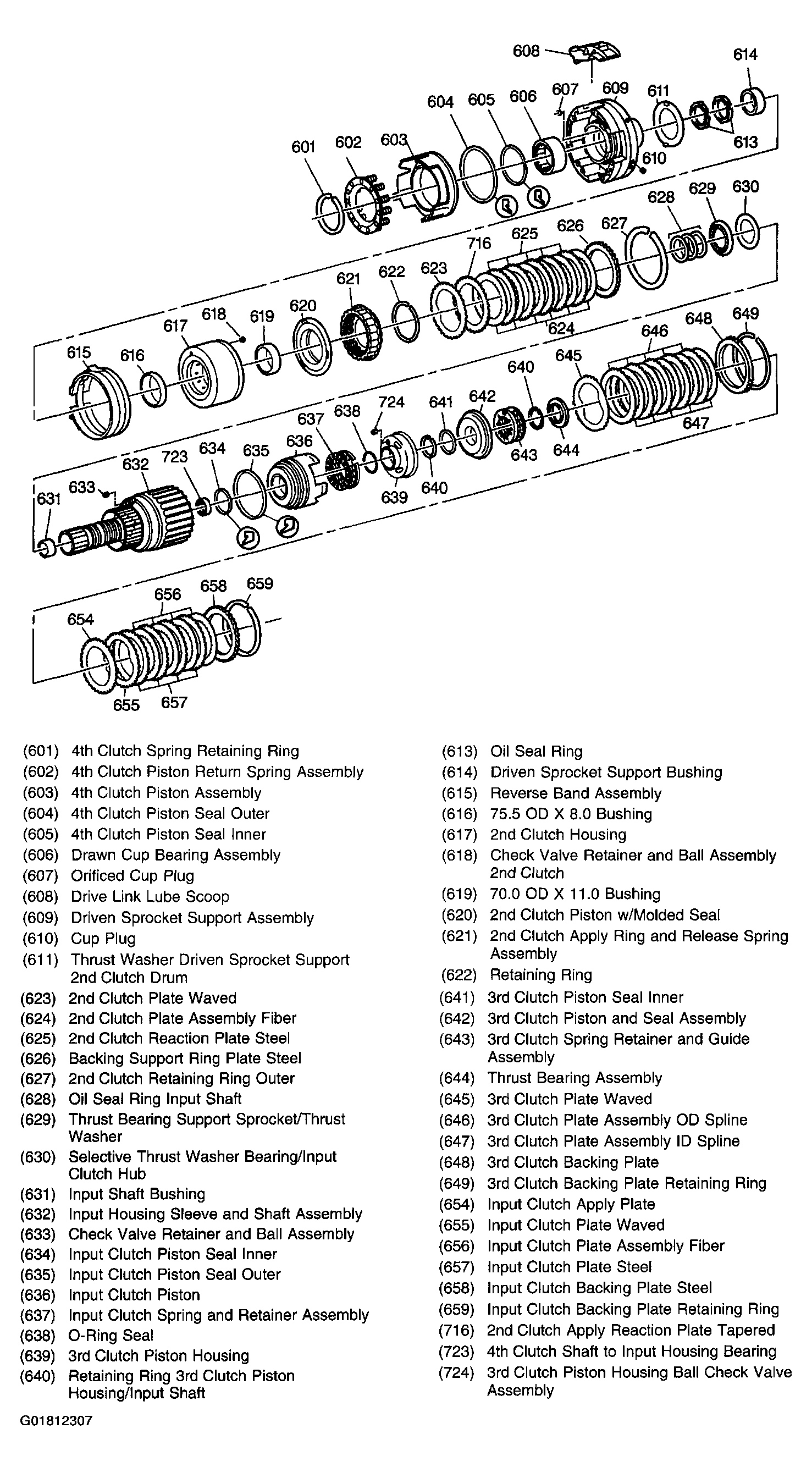

Fig 9: Internal Components (1 Of 2)

G01812307

Courtesy of GENERAL MOTORS CORP.

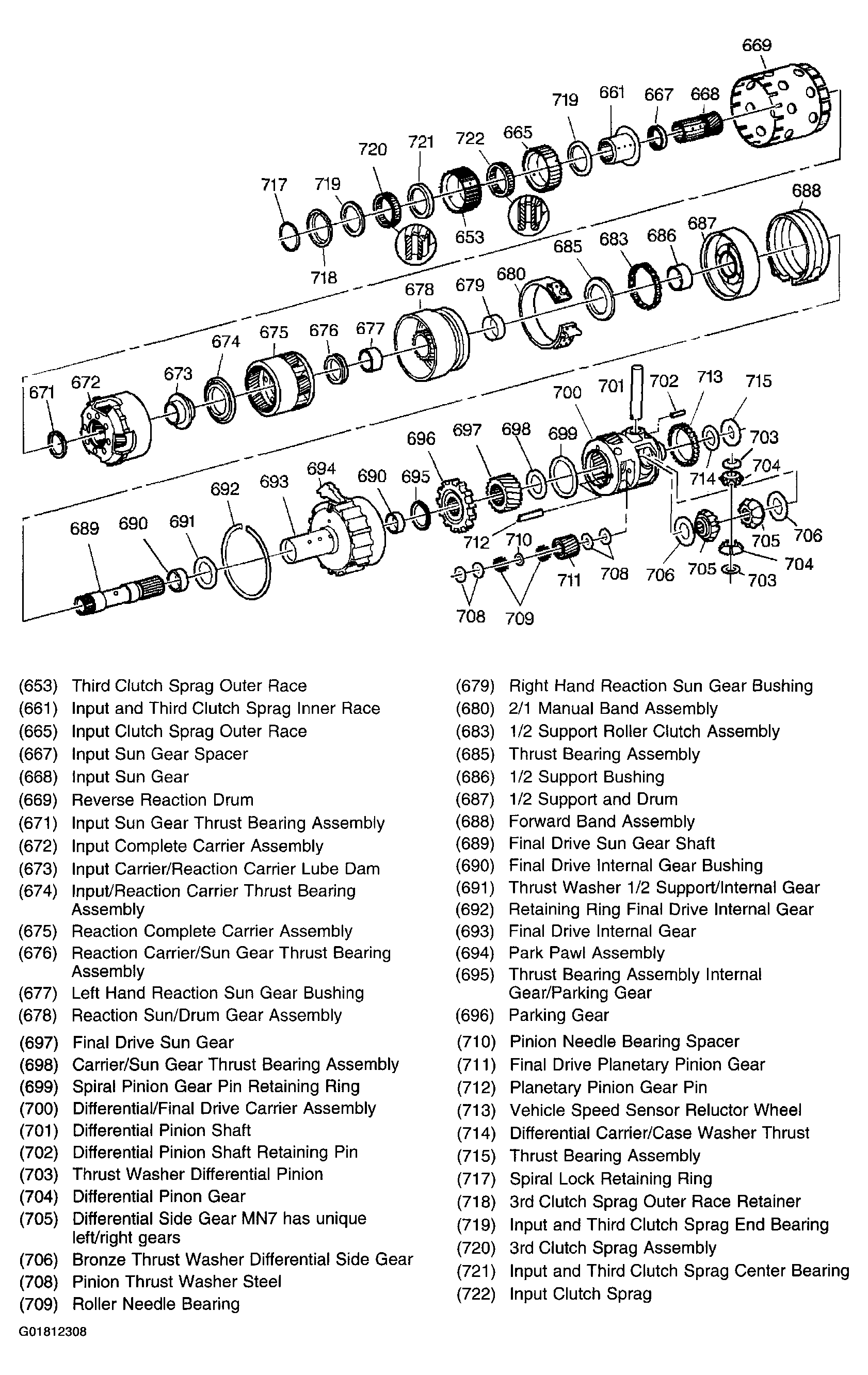

Fig 10: Internal Components (2 Of 2)

G01812308

Courtesy of GENERAL MOTORS CORP.

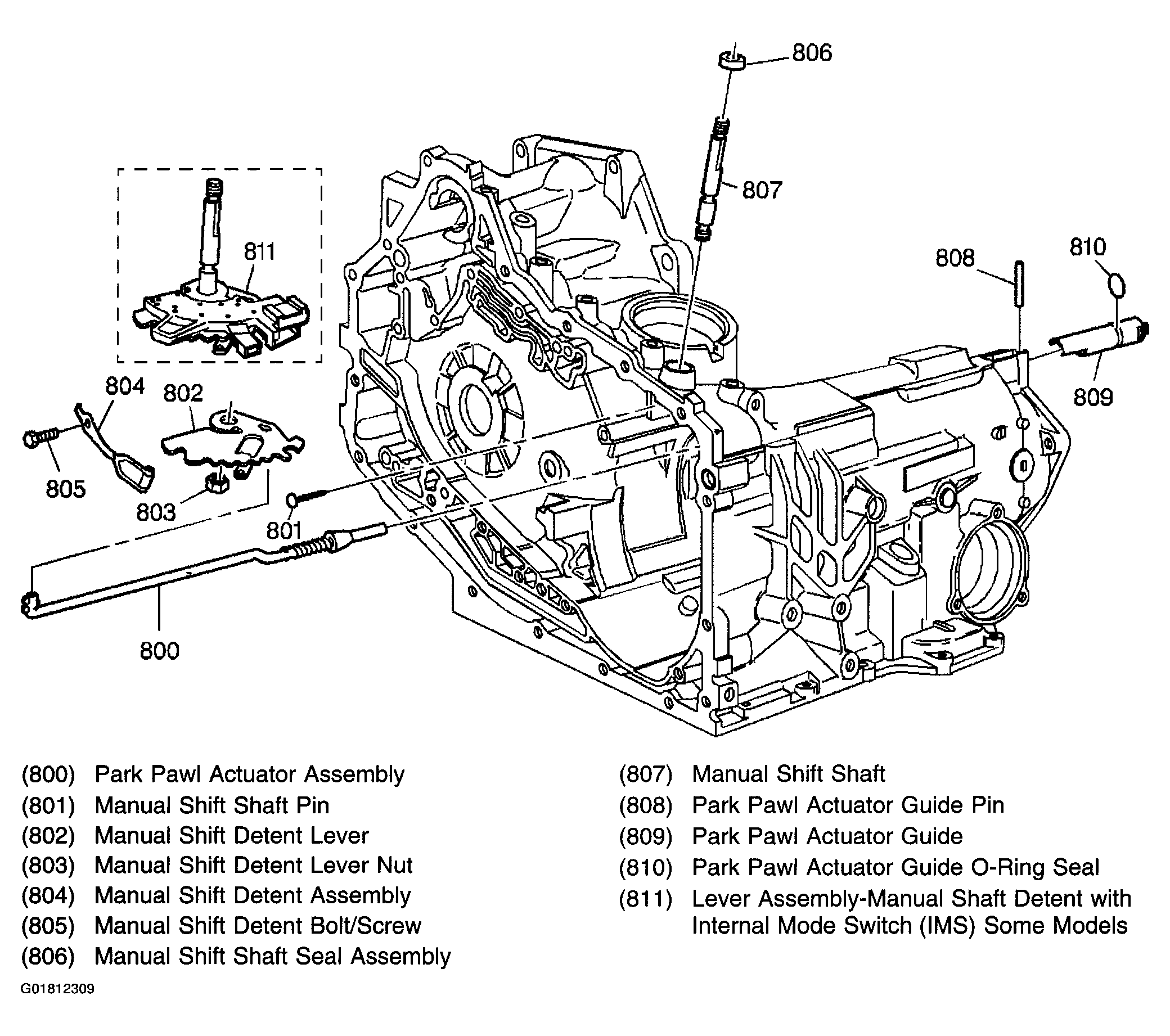

Fig 11: Manual Shaft And Parking System Assembly

G01812309

Courtesy of GENERAL MOTORS CORP.

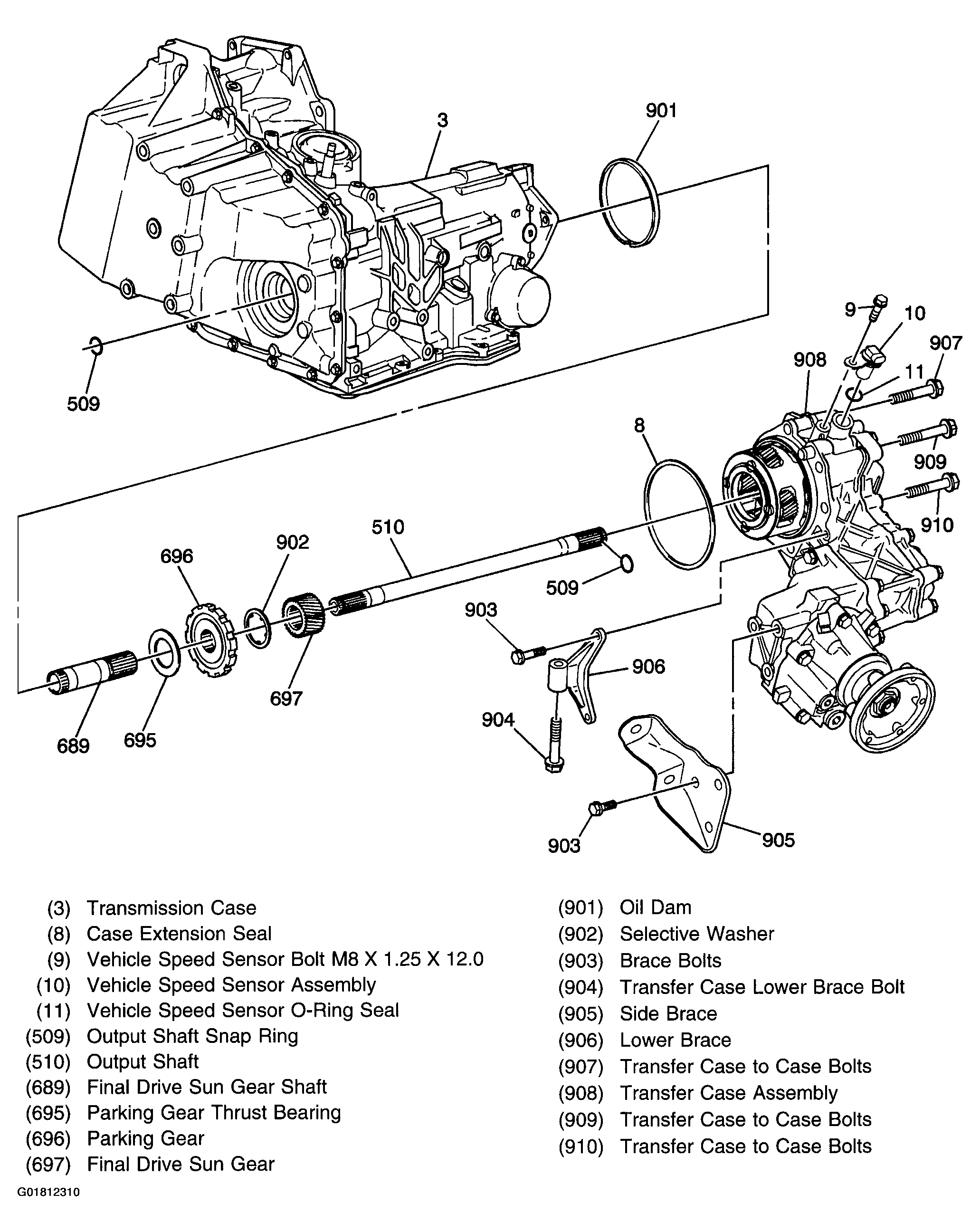

Fig 12: Transmission To Transfer Case Components

G01812310

Courtesy of GENERAL MOTORS CORP.
