Removal Procedure

  1. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .

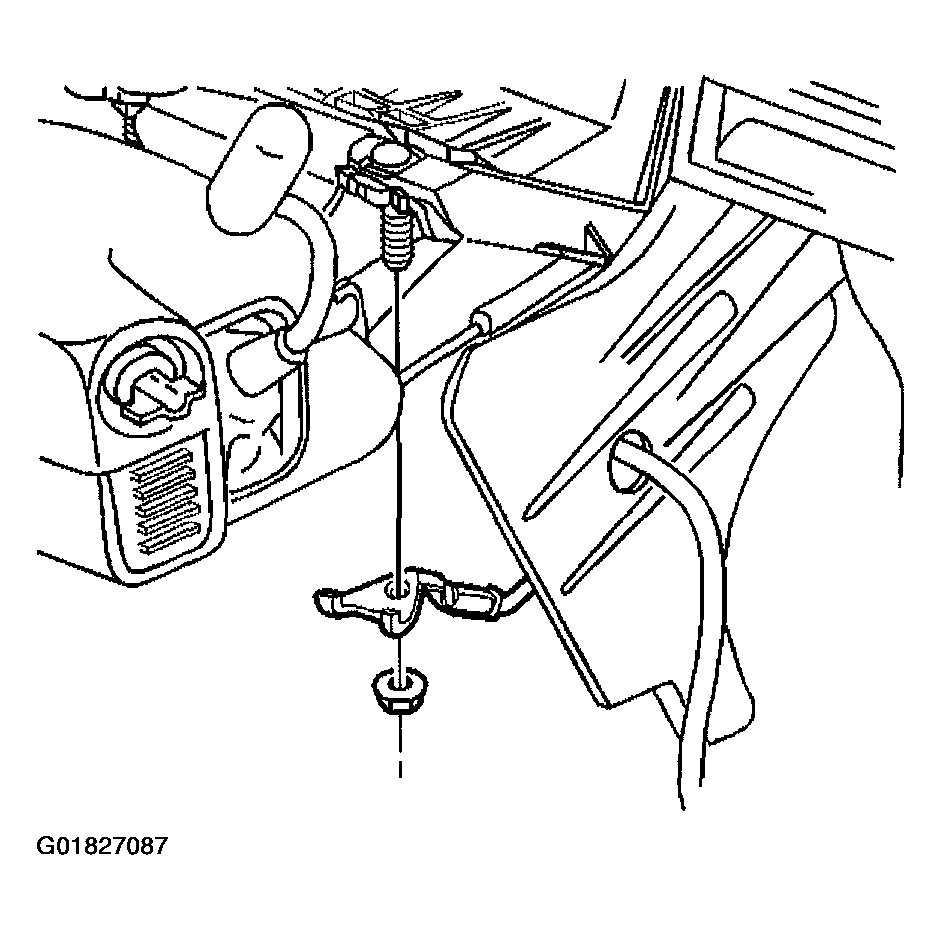

    2. Fig 1: Steering Column Upper Nut
    G01827087Courtesy of GENERAL MOTORS CORP.
  2. Remove the steering column upper nut.
  3. Remove the center console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR .
  4. Remove the anchor cable nut from the center console bracket.

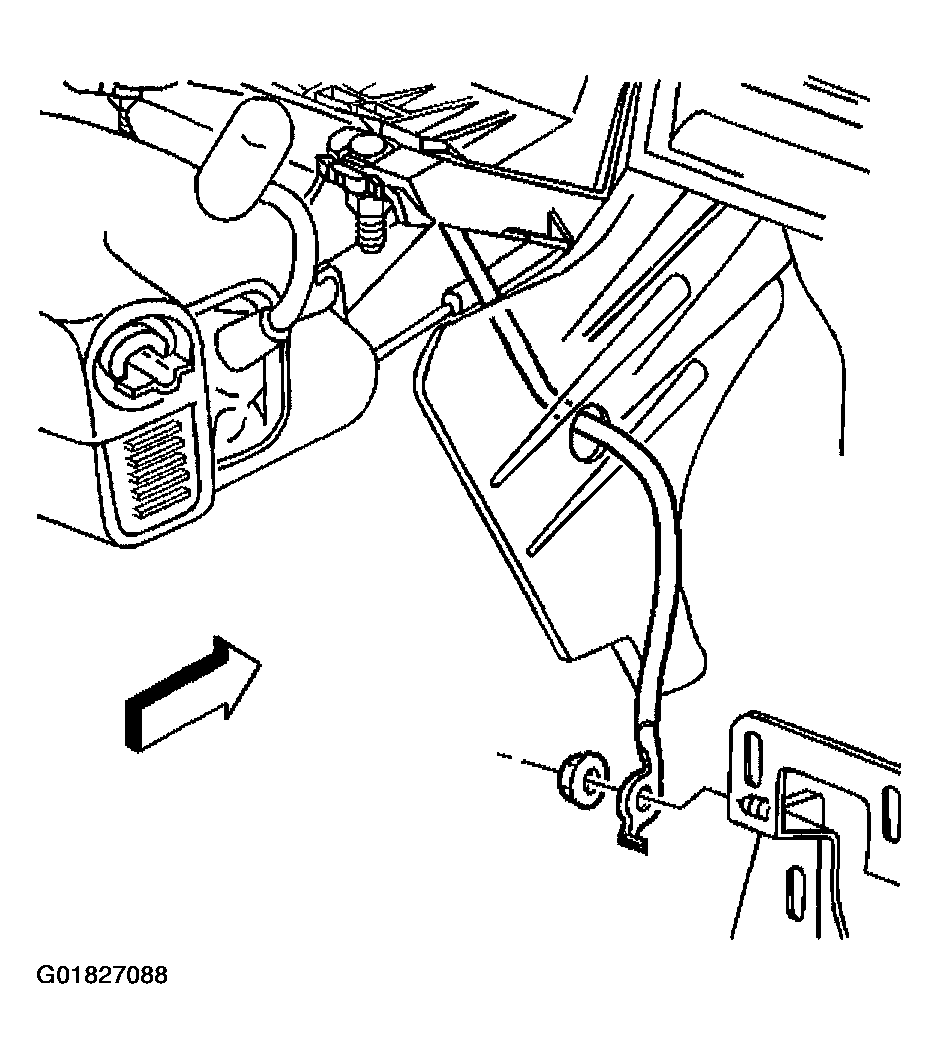

    Fig 2: Removing Anchor Cable Nut From The Center Console Bracket
    G01827088Courtesy of GENERAL MOTORS CORP.
  5. Remove the anchor cable.
