Removal Procedure

  1. Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - On Vehicle .
  2. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  3. Disconnect the park lock cable assembly (1).

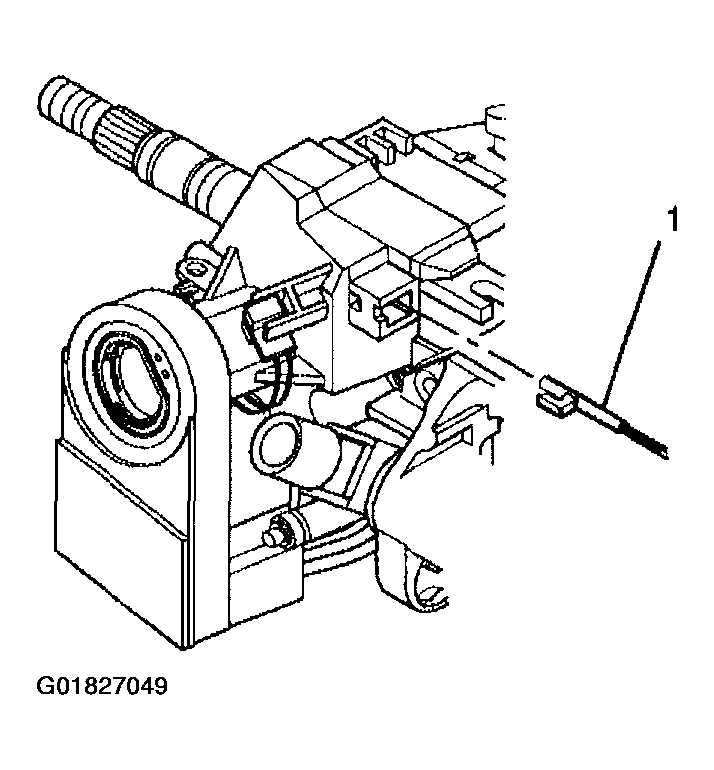

    4. Fig 1: Park Lock Cable Assembly
    G01827049Courtesy of GENERAL MOTORS CORP.
  4. Place the steering column lock cylinder set in the OFF-LOCK position.
  5. Insert a small flat-blade tool into the slot on the electronic lock module assembly and push against the locking tab in order to remove the tab.
  6. Disconnect the automatic transmission shift lock control connector from the park position switch assembly.
  7. Slide the park position switch assembly off of the linear shift assembly.

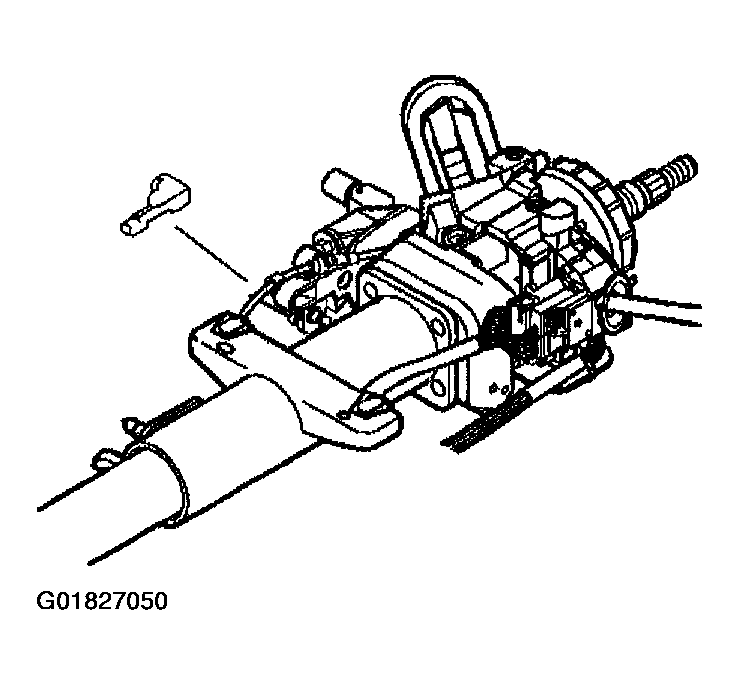

    Fig 2: Park Position Switch Assembly
    G01827050Courtesy of GENERAL MOTORS CORP.
  8. Remove the automatic transmission shift lock control from the steering column.
  9. Use a small flat-blade tool in order to pry the automatic transmission shift lock control from the steering column jacket assembly.

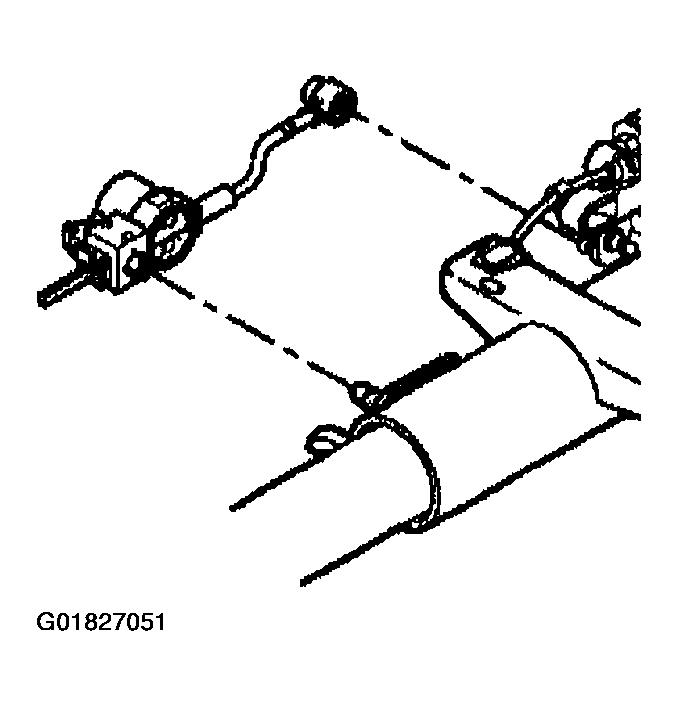

    Fig 3: Automatic Transmission Shift Lock Control
    G01827051Courtesy of GENERAL MOTORS CORP.
  10. Remove the 3 screws from the linear shift assembly.
  11. Remove the linear shift assembly from the steering column support assembly.

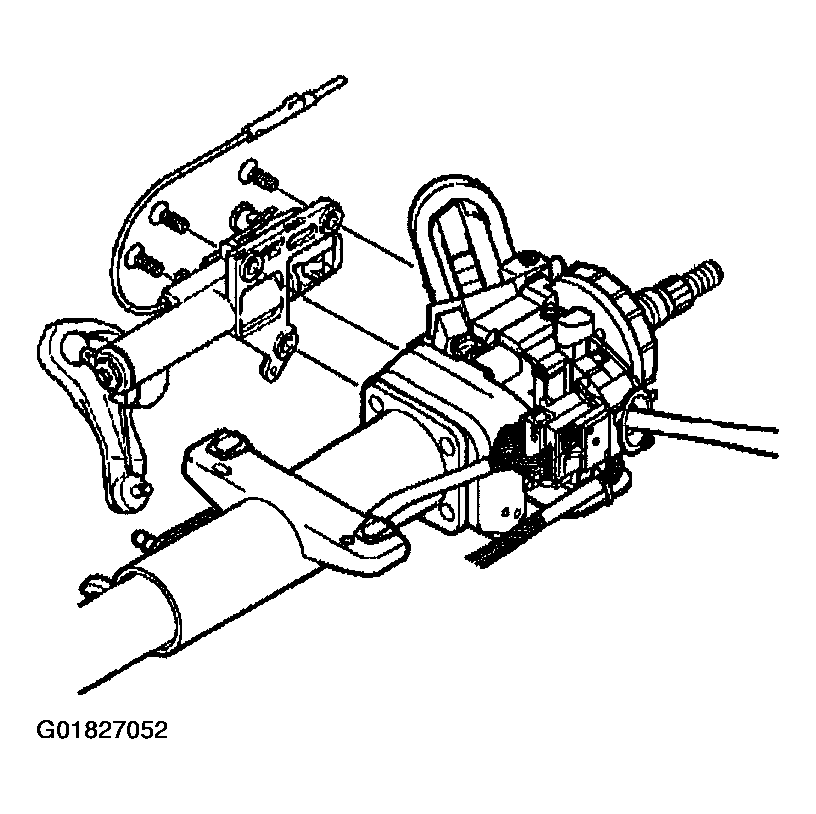

    Fig 4: Linear Shift Assembly
    G01827052Courtesy of GENERAL MOTORS CORP.
