Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the transfer case brace bolts.
  3. Remove the transfer case brace.

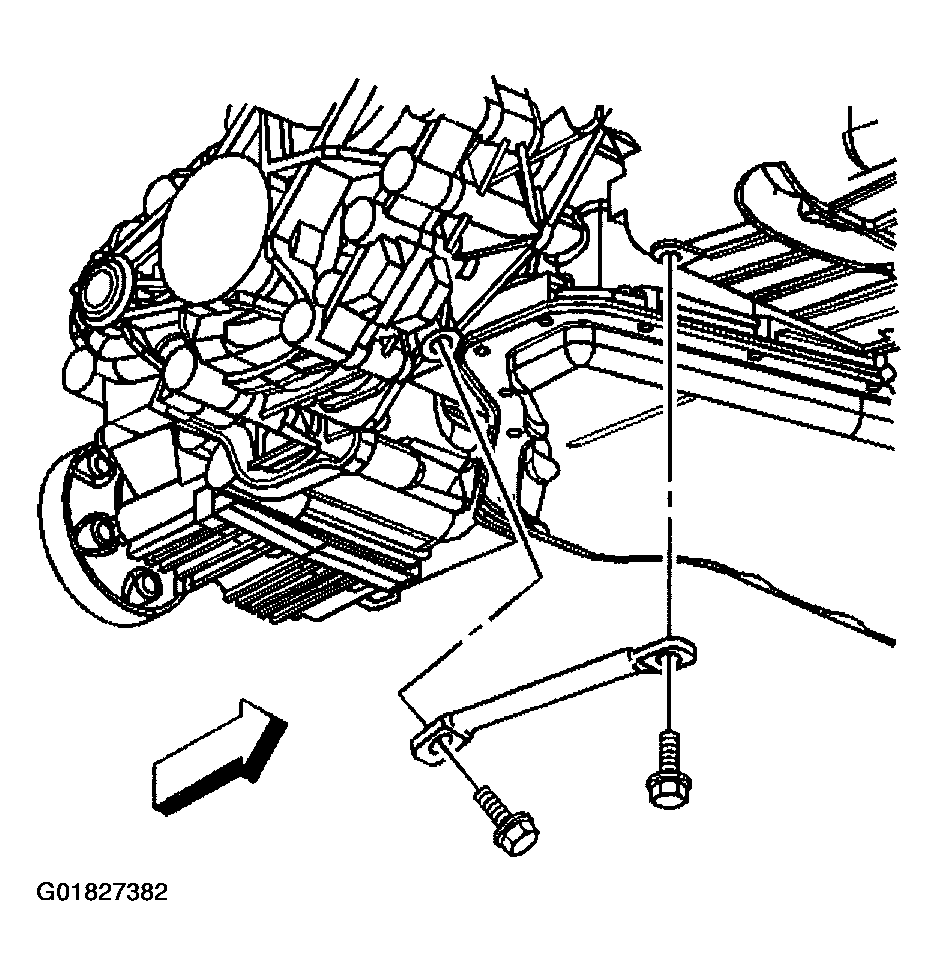

    Fig 1: Removing Transfer Case Brace & Bolts
    G01827382Courtesy of GENERAL MOTORS CORP.
