Fuel Filler Tube: Installation

  1. Install the fuel filler pipe and hose to the fuel tank. Fully seat the fill hose to the stop on the tank. Tighten the fuel filler pipe clamp to specification. See TORQUE SPECIFICATIONS .
  2. Install the fuel filler pipe attaching screw to the wheelhouse panel. Tighten the fuel filler pipe attaching screw to specification. Install the fuel filler pipe attaching nut to the wheelhouse panel. Tighten the fuel filler pipe attaching nut to specification. Install the fuel filler pipe shield. Lower the vehicle. Install the fuel filler pipe to fuel fill pocket bolts. Refill the fuel tank. Install the fuel filler cap. Connect the negative battery cable. Inspect for fuel leaks.

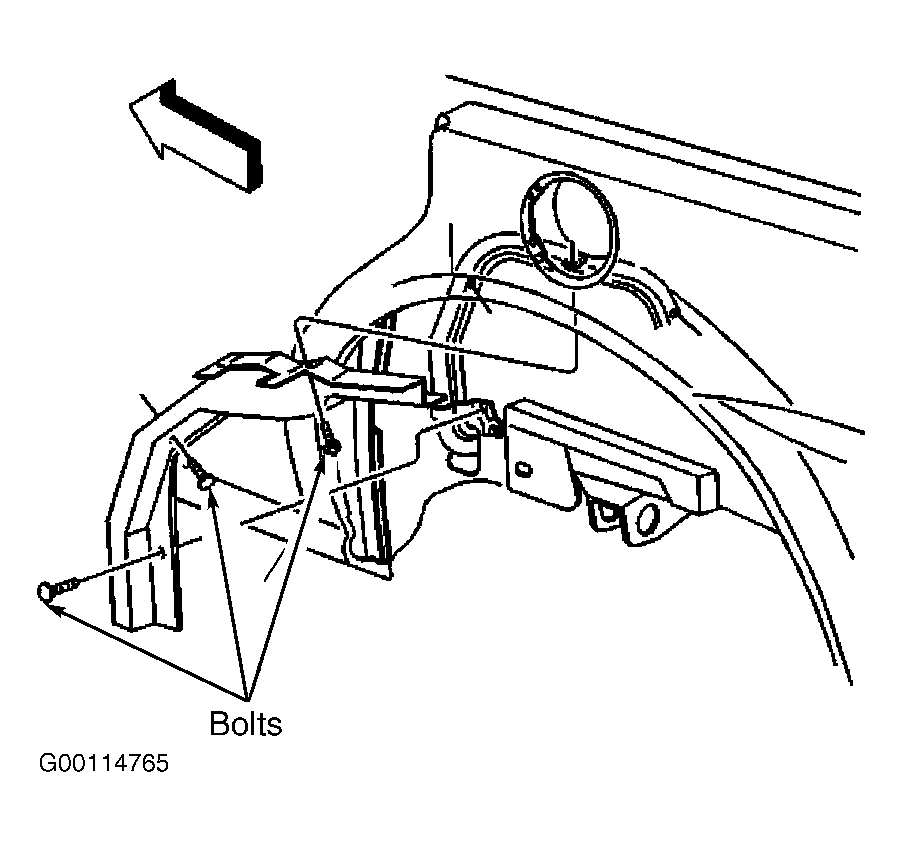

Fig 1: Removing/Installing Fuel Filler Pipe Shield
G00114765Courtesy of GENERAL MOTORS CORP.

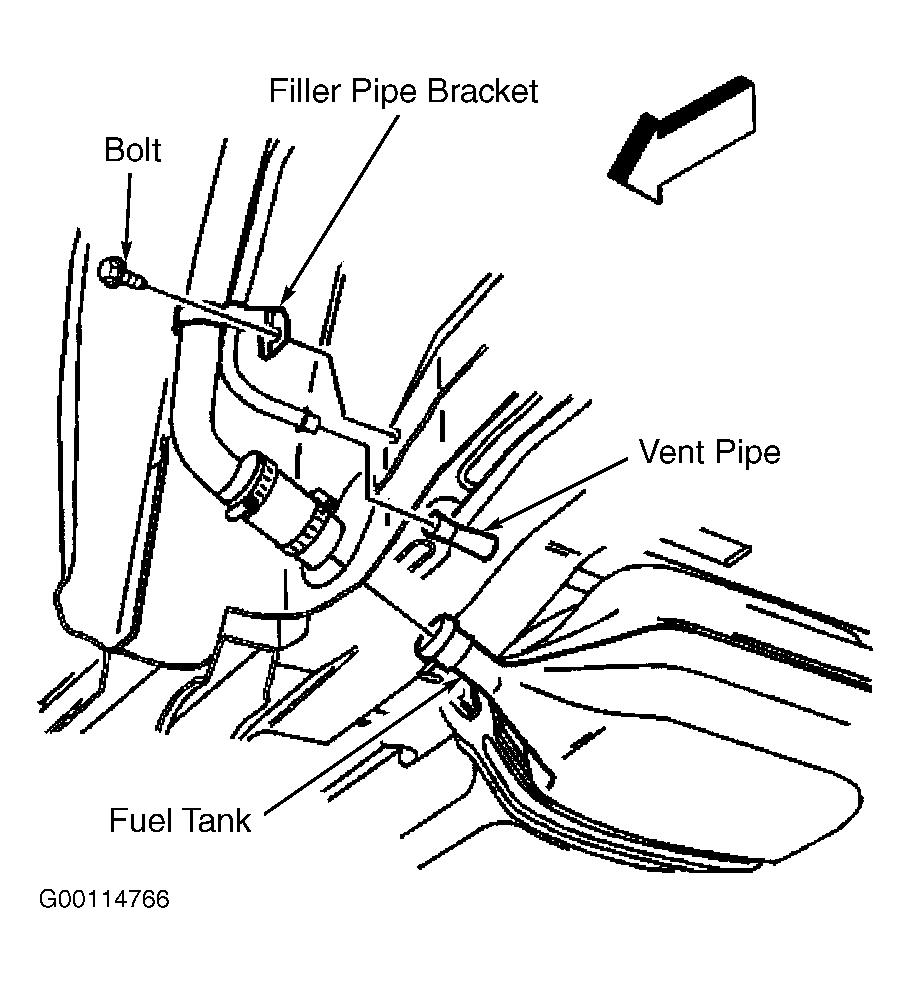

Fig 2: Removing/Installing Fuel Tank Filler Pipe
G00114766Courtesy of GENERAL MOTORS CORP.
