Installation Procedure

  1. Install the exhaust crossover pipe.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the exhaust crossover pipe nuts.

    Tighten

    Tighten the exhaust crossover pipe nuts to 25N.m (18 lb ft).

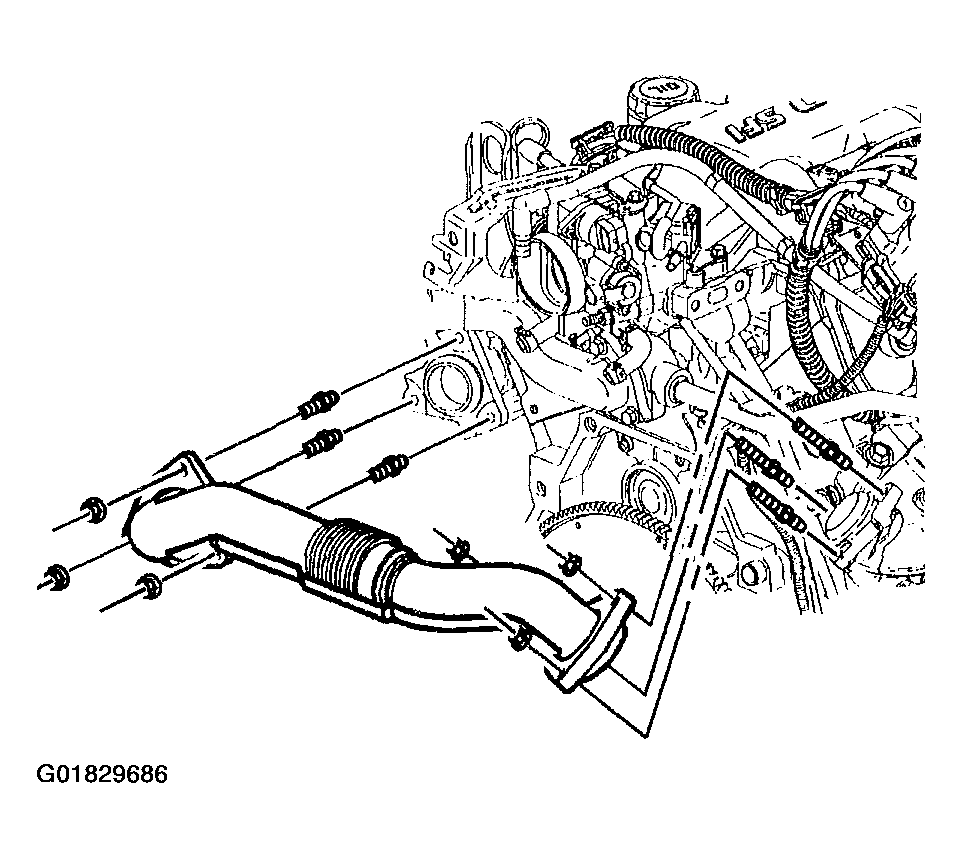

    Fig 1: Installing Exhaust Crossover Pipe & Nuts
    G01829686Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust crossover pipe heat shield.
  4. Install the exhaust crossover pipe heat shield bolts.

    Tighten

    Tighten the exhaust crossover pipe heat shield bolts to 10 N.m(89 lb in).

  5. Install the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT .
  6. Install the inlet radiator hose to the engine. Refer to RADIATOR HOSE REPLACEMENT -- INLET .
  7. Fill the cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM .
  8. Install the throttle body air inlet duct.

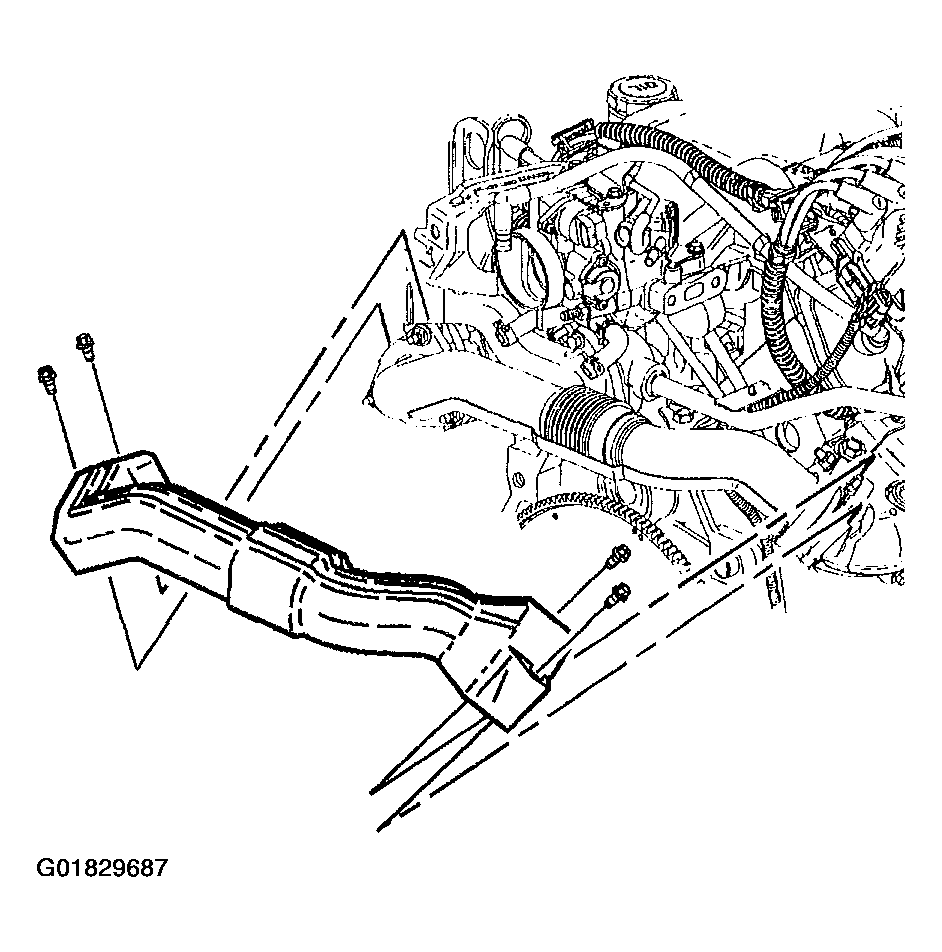

    Fig 2: Installing Exhaust Crossover Pipe Heat Shield & Bolts
    G01829687Courtesy of GENERAL MOTORS CORP.
